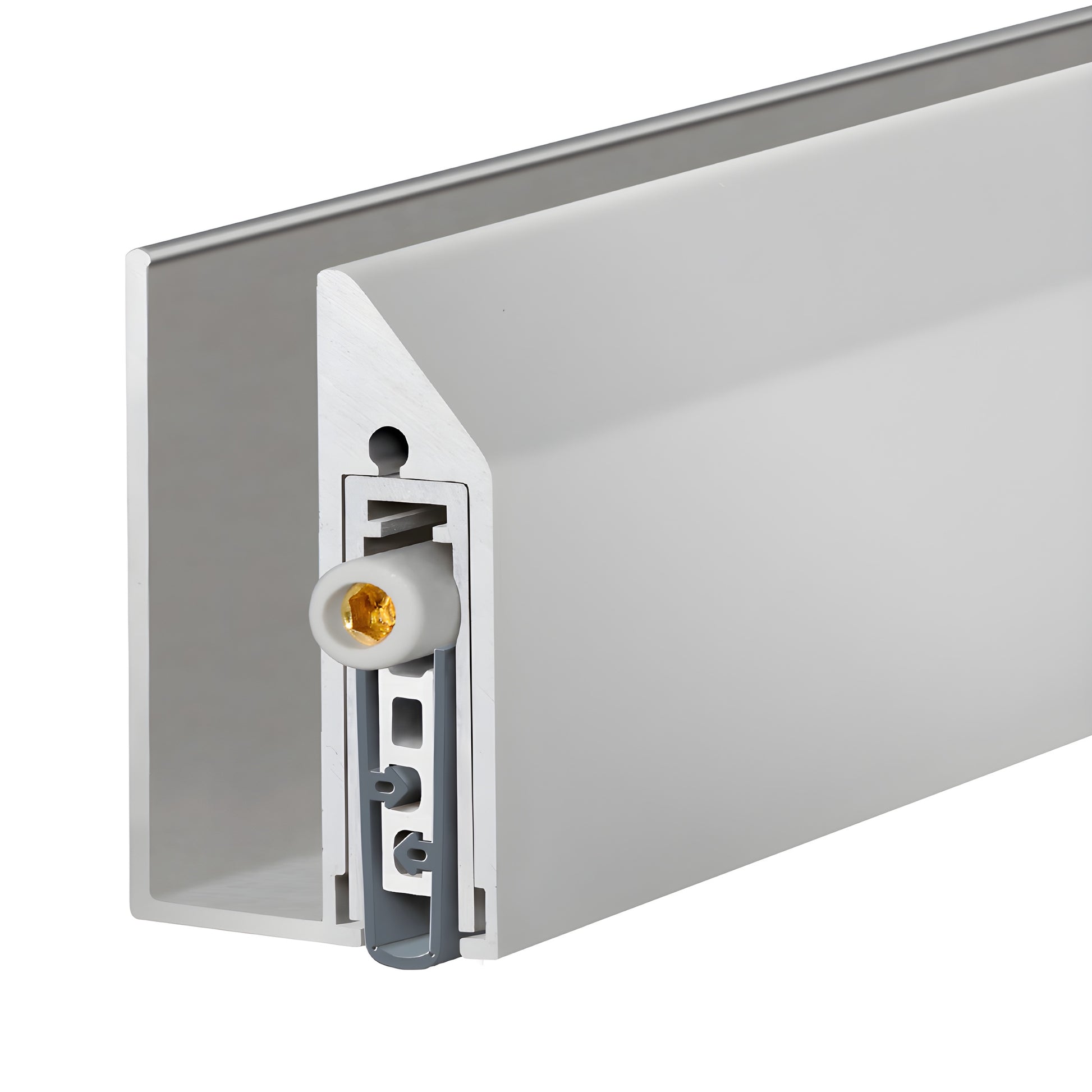

Fallbrook Captured Drop Seal for 1/2" (12mm) Glass Satin Anodized

Finish (2)

Volume pricing

Save up to 10%

Applied automatically

Overview
SKUFBC12DSSA
Sold as1 Each
Finish/Color:Satin Anodized
Glazing Thickness1/2 in. (12 mm)

Description

Product Details

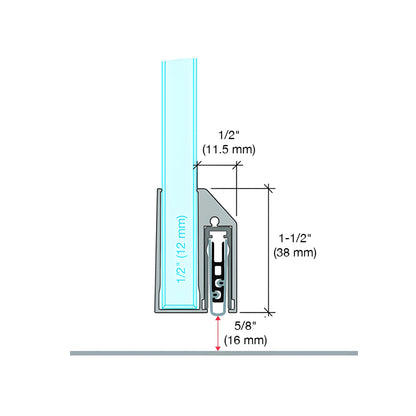

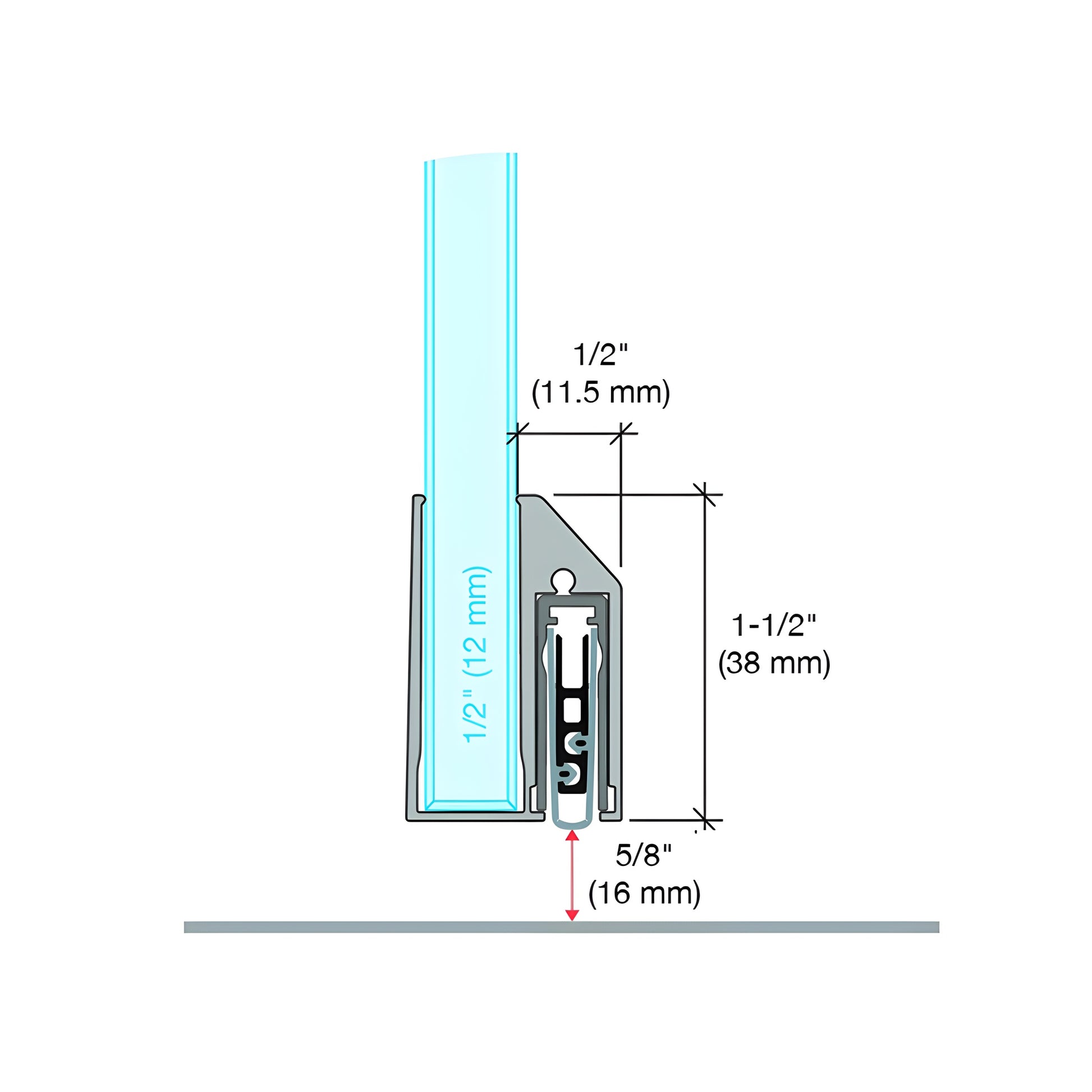

  • Drop height adjustment up to 5/8"
  • U-Channel built onto drop seal

CRL applied drop down seal intended for new and existing Fallbrook systems. Modern solution that can be used on left and right hand doors. Complete set includes drop-down seal, double adhesive tape, end caps, stopping plates, fixing screw, optical film, Allen key

Specifications

Technical Resources

Brochures & Literature

PDF
Fallbrook Door and Hinge LimitationsOpen PDF ↗
PDF
Fallbrook Glass Partition Systems BrochureOpen PDF ↗

Installation Instructions

PDF
Fallbrook Drop Seal Installation InstructionsOpen PDF ↗
PDF
Fallbrook Installation InstructionsOpen PDF ↗

BIM Objects - rvt

RVT
Fallbrook BIM.rvtOpen RVT ↗

BIM Objects - pdf

PDF
Fallbrook BIM Start Page.pdfOpen PDF ↗

Quote Request Forms

PDF
Fallbrook Quote FormOpen PDF ↗

Specifications

PDF
Fallbrook 3-Part SpecOpen PDF ↗

CAD Drawings - pdf

PDF
Fallbrook Series System CAD Drawings.pdfOpen PDF ↗

CAD Drawings - dwg

DWG
Fallbrook Series System CAD Drawings.dwgOpen DWG ↗

Engineering & Test Reports

PDF
Fallbrook - Acoustical Performance Test Report - ASTM E90 - Q5611.01-303-11-R1Open PDF ↗
