Fallbrook Left Handed Evo Hinges Satin Anodized Kit

Fallbrook Left Handed Evo Hinges Satin Anodized Kit

$1,692.96 CAD
$1,692.96 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# FHEKLSA
Shipping Weight: 0.16 Ounces
Shipping Limitations: None
This Product Ships Free!
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
View full details

Product Information

Description

Finish/ColorSatin Anodized
Glazing Thickness3/8 in. (10 mm) – 1/2 in. (12 mm)

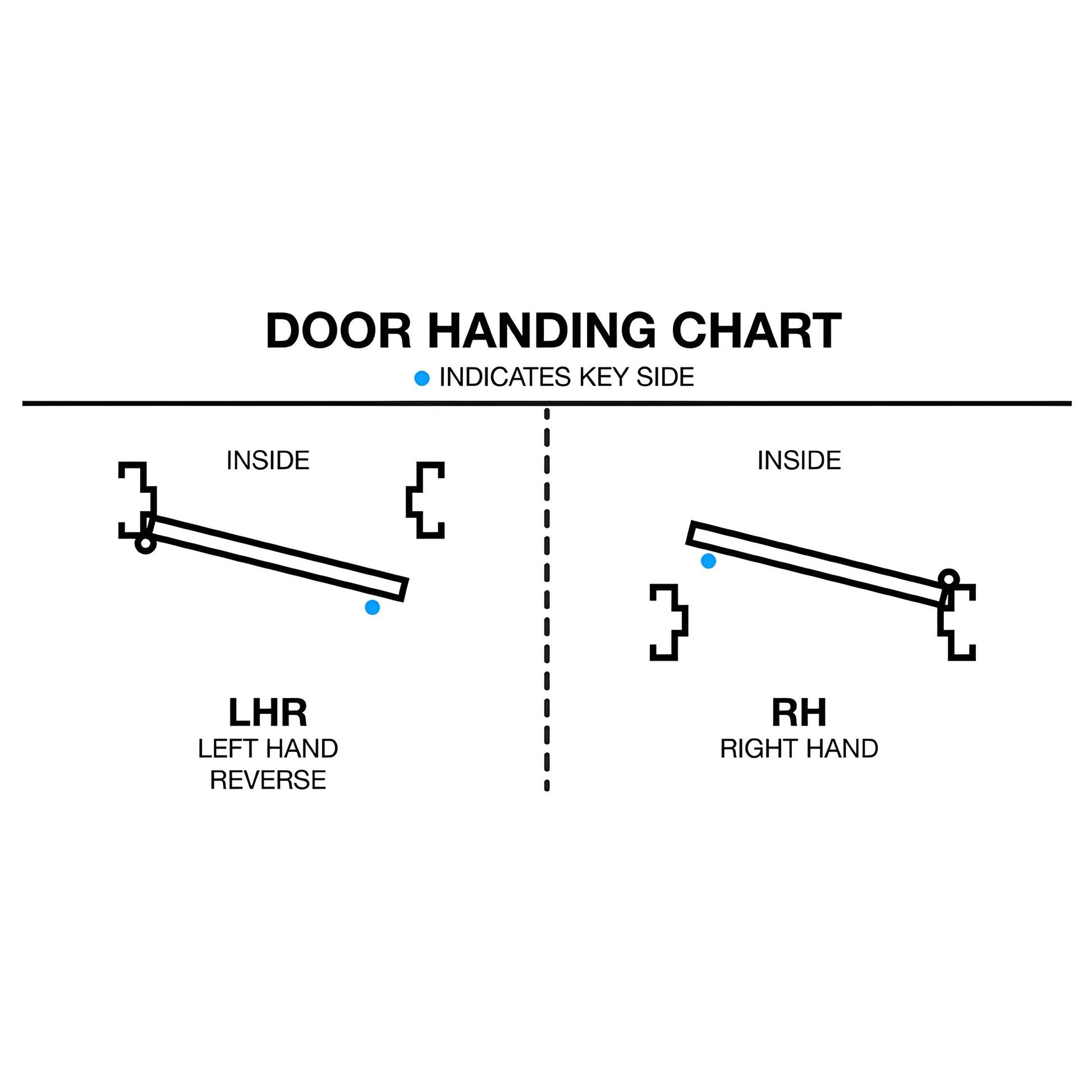

HandingLeft Handed
Maximum Panel Weight 250 lbs.(113 kg)
ProfileSquare

Overview

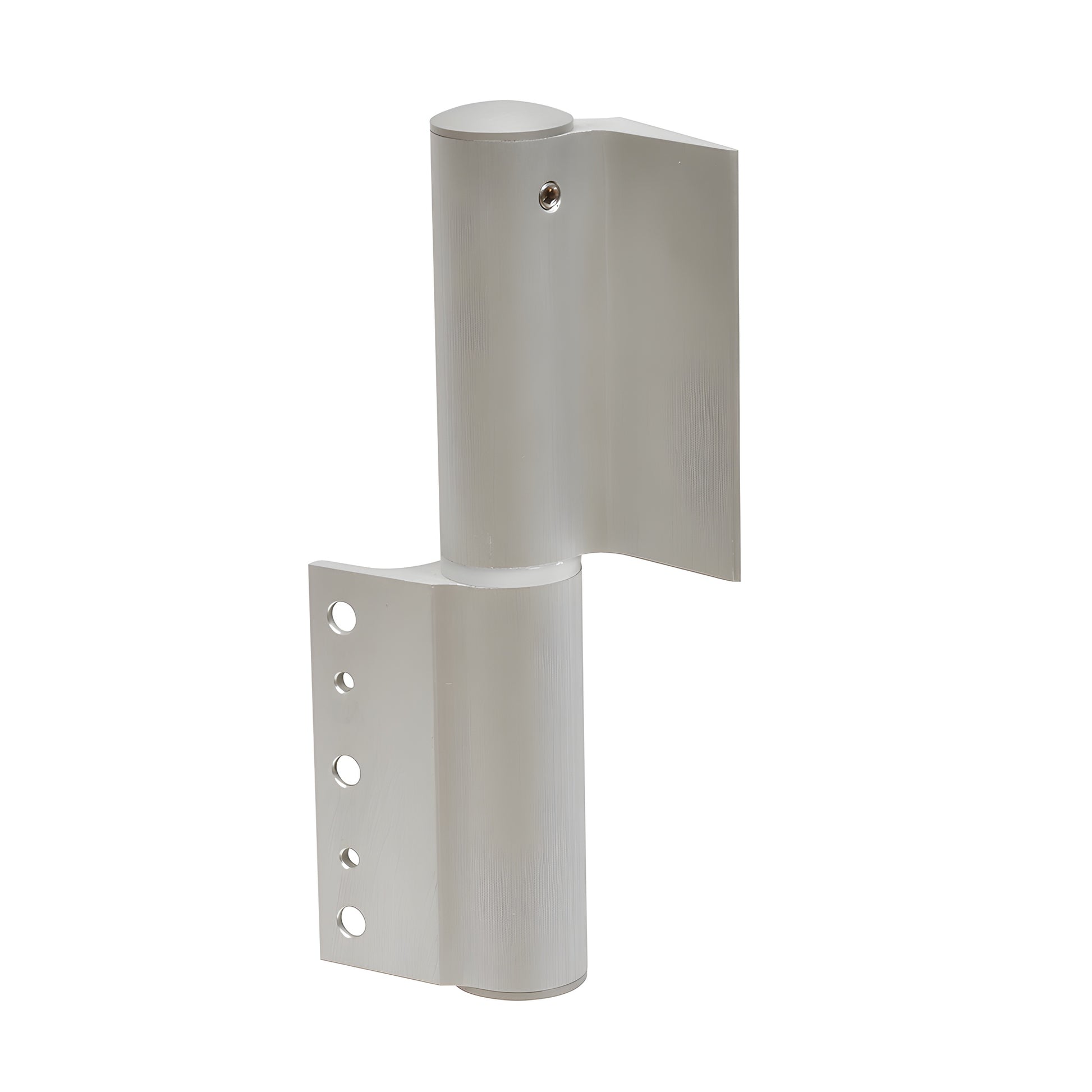

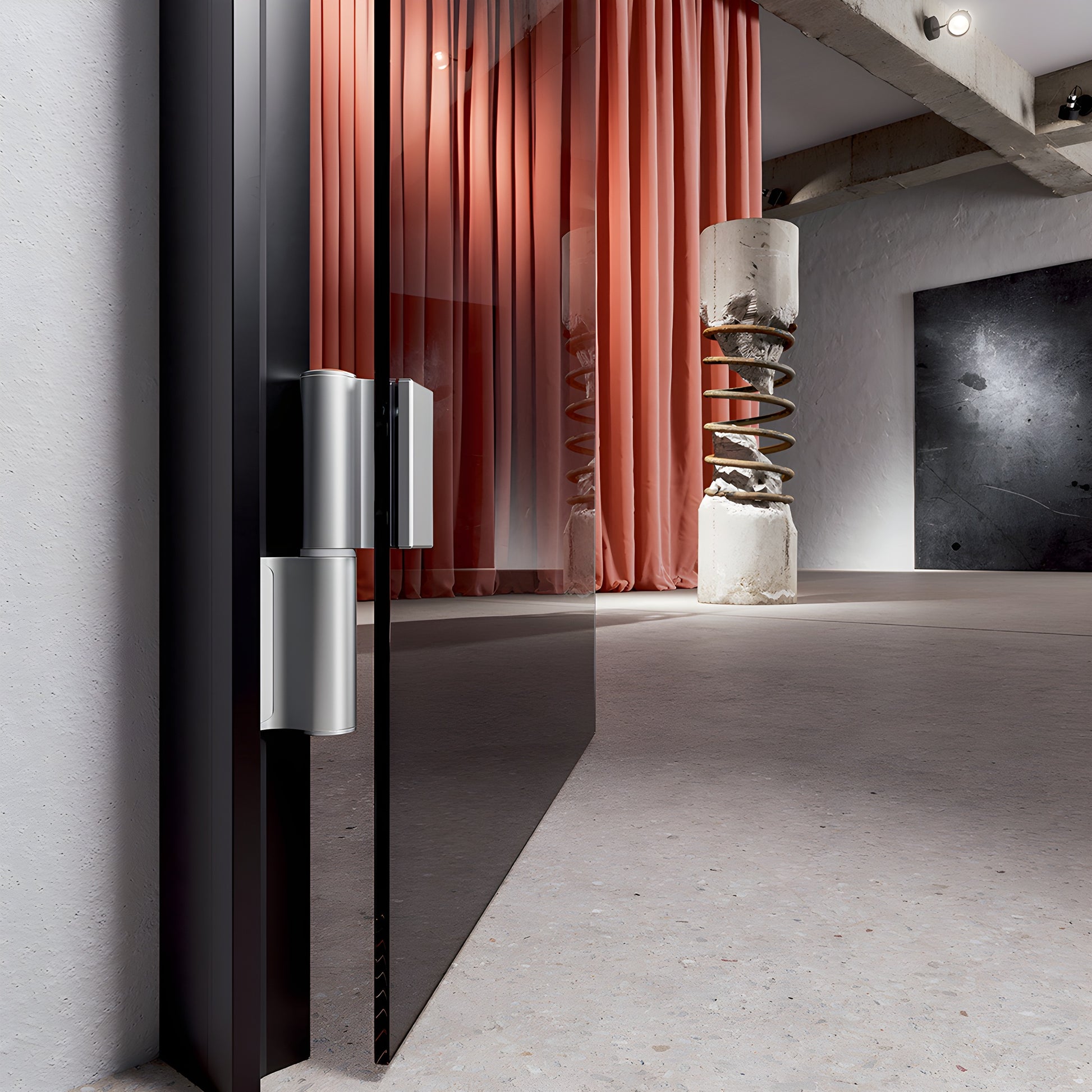

The CRL Fallbrook Evo Hinges are expertly designed for glass thicknesses ranging from 3/8 inch (10 mm) to 1/2 inch (12 mm) and can support door weights up to 120 kg (265 lbs).
This innovative hinge system includes one hydraulic hinge and one mechanical free-swinging hinge, offering adjustable closing and constant braking control for all door opening angles up to 180°.
For 3/8 inch glass, one shim gasket is needed, while for 1/2 inch glass, no additional shim gasket is required.
The hydraulic hinge features an oil-dynamic system and is protected by international patents, making it a durable choice for a variety of door types.
For precise shipping weights and cost estimations, please contact CRL Customer Service.
