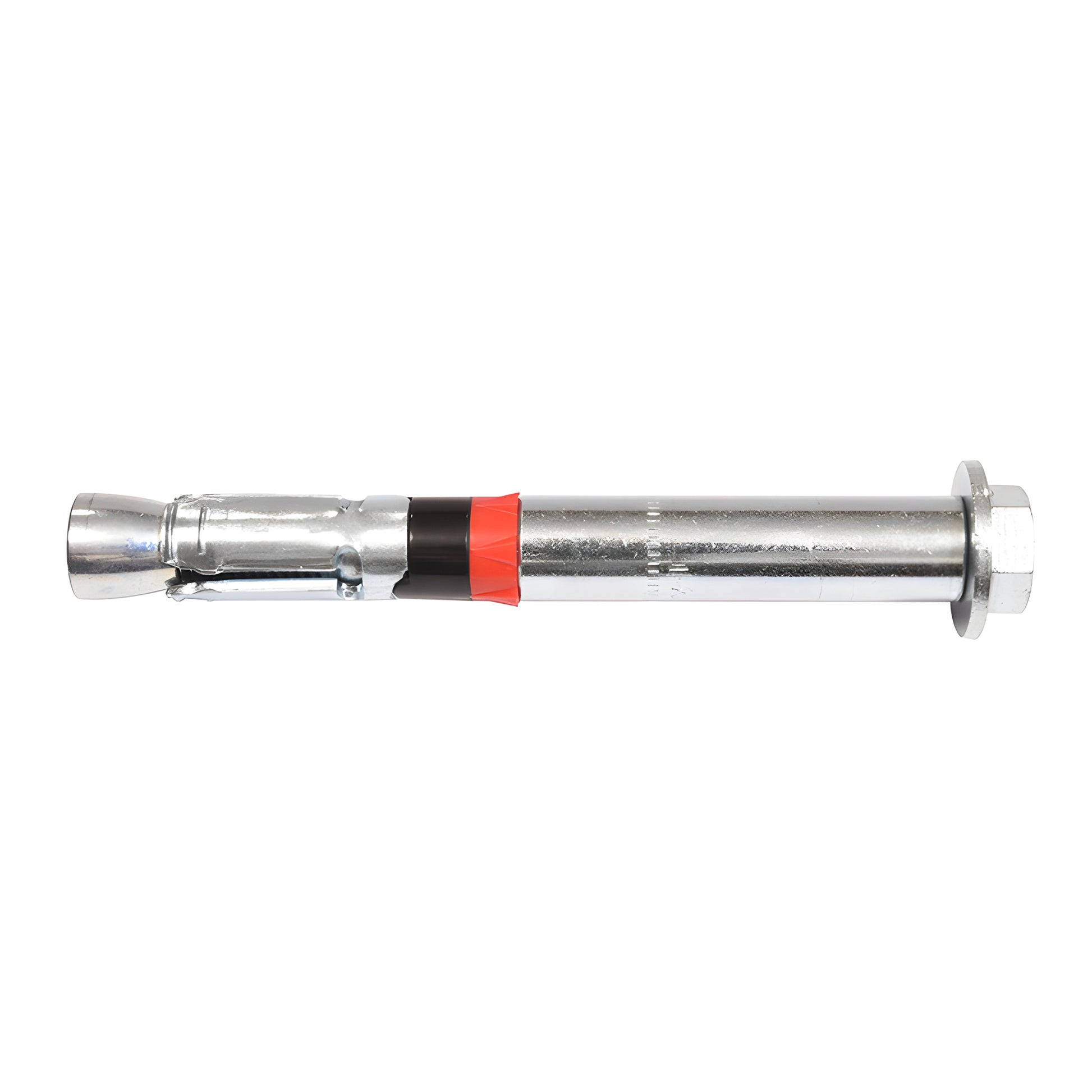

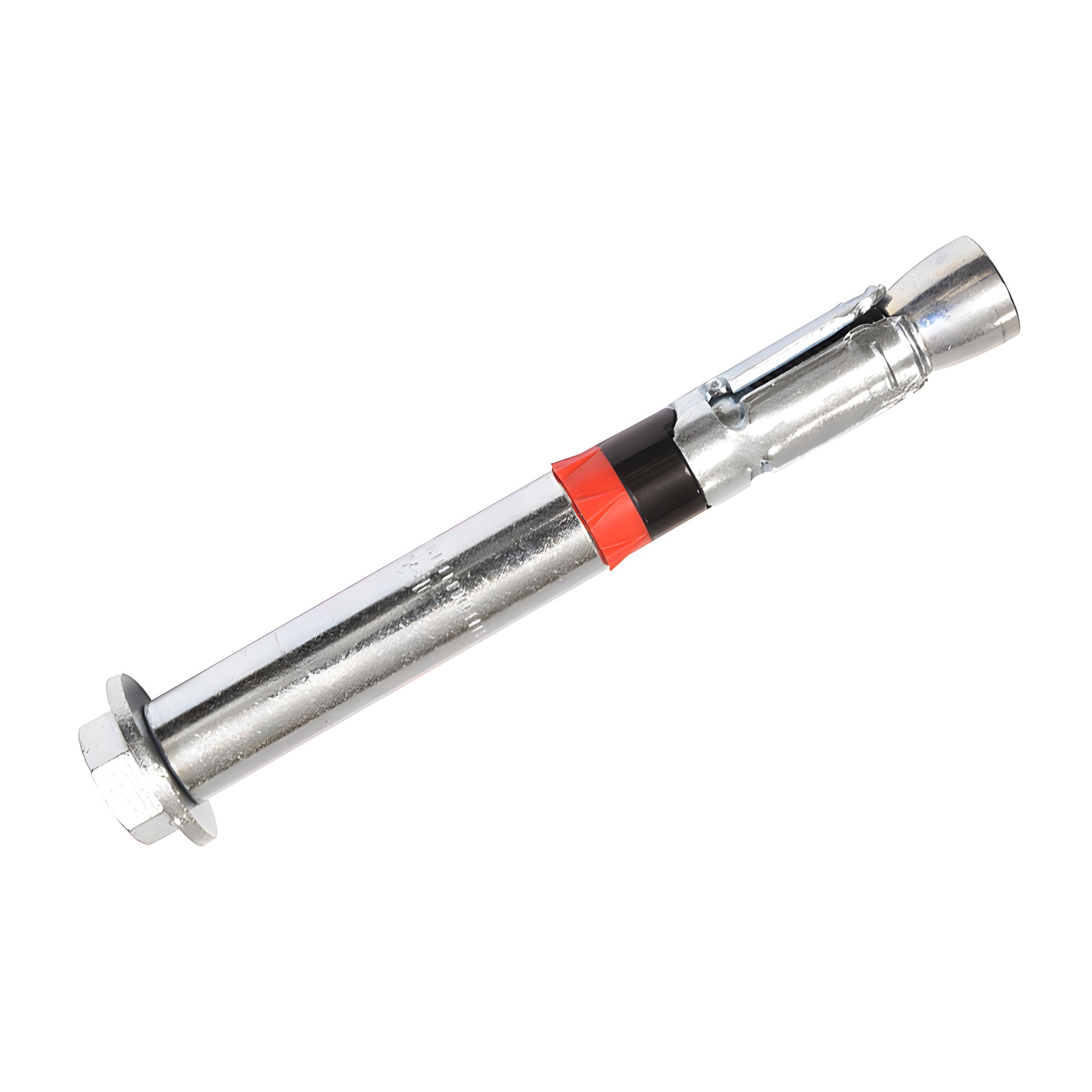

Hilti® HSL-4 M12 6-1/8" Expansion Anchor for Concrete

• Approved for use with CRL railing systems
• Optimized design for reliable performance across a wide range of applications
• Delivers optimum performance in cracked concrete in the tension zone for excellent load values

SKU: EBA335 — The Hilti® HSL-4 is an IBC-compliant, torque-controlled heavy-duty expansion bolt engineered for high performance in both static and dynamic load applications. Ideal as a stainless-like expansion anchor for cracked concrete tension zones and railing system installations, the HSL-4 provides consistent, reliable holding power where code-compliant anchoring is required.

TECHNICAL DATA:
Maximum Thickness Fastened: 20 mm
Minimum Thickness of Base Material: 160 mm
Effective Anchorage Depth: 80 mm
Anchor Length: 156 mm

The indicated load value applies to non-cracked concrete C20/25; no edge distance and spacing influence considered.

Order the Hilti HSL-4 expansion bolt (SKU: EBA335) for code-compliant railing and cracked-concrete anchoring — add to cart or contact us for technical support.
