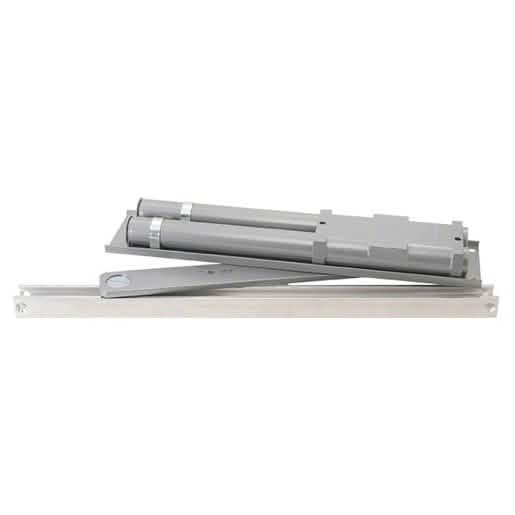

LCN Aluminum Concealed Overhead Door Closer ADA Compliant Size 5
LCN Aluminum Concealed Overhead Door Closer ADA Compliant Size 5
Regular price
$3,226.56 CAD
Regular price
Sale price
$3,226.56 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 6035AL
Shipping Weight: 18.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 18.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Body Height
1-3/4
Body Length
16-7/8
Body Width
3-23/32
Closer Type
Overhead Concealed
Cover Plate Length
18-1/4
Cover Plate Width
4
Door Height
96
Finish/Color
Aluminum
Handing
Double Acting
Hold Open Option Available
Yes
Recommended Door Type
Aluminum,Hollow Metal
Slide Track Depth
1-7/16
Slide Track Length
22-1/2
UL Listed
Yes
Overview
- Requires minimum 1-3/4" x 4" (45 x 102 mm) wide transom
- Certified to ANSI Standard A156.4, Grade 1 heavy-duty closer
- UL and cUL listed for self-closing doors without hold-open
- Fixed spring sizes available for interior doors to 54" (1.37 m) and exterior doors to 42" (1.07 m)
- Backcheck plus non-critical speed and latch adjustments for controlled closing

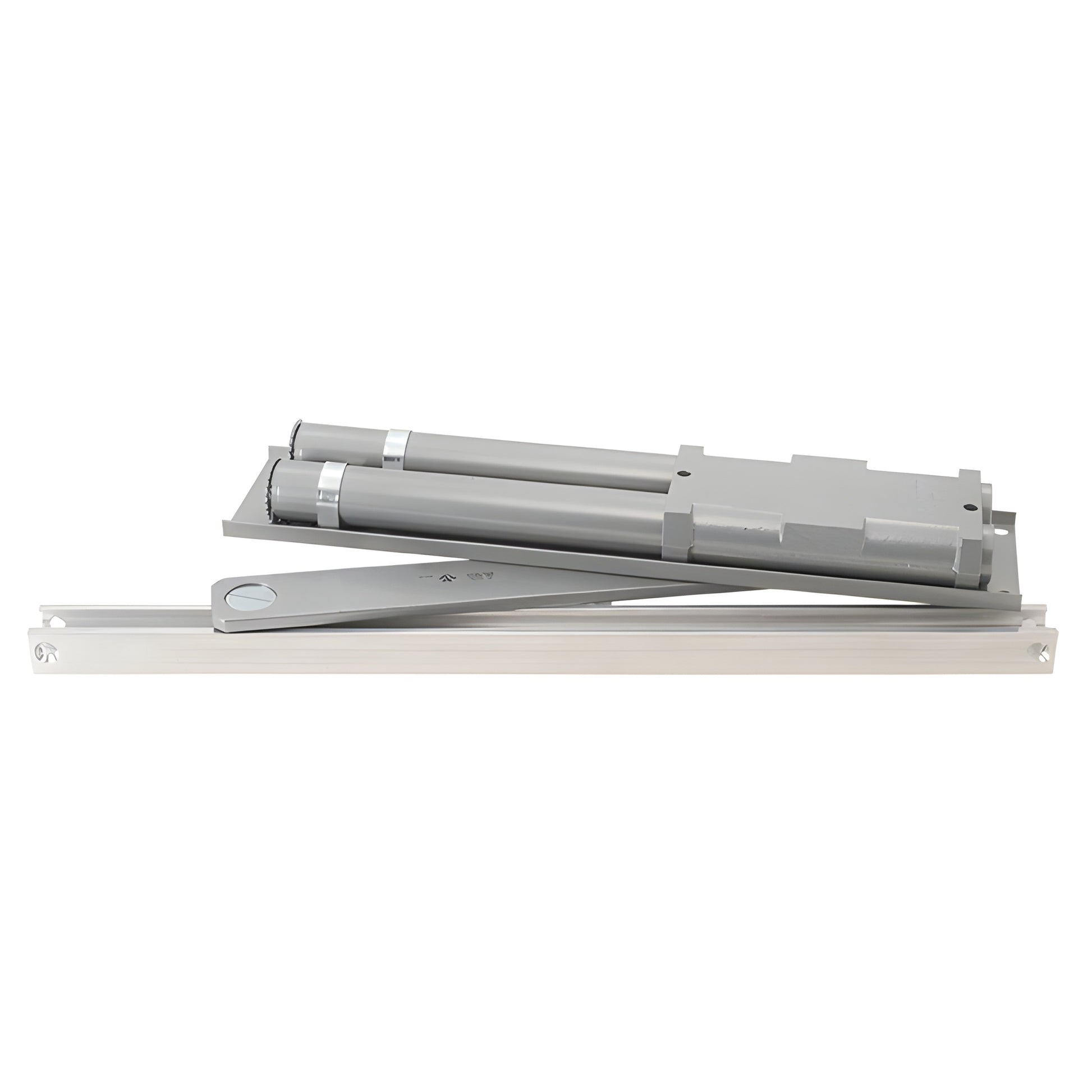

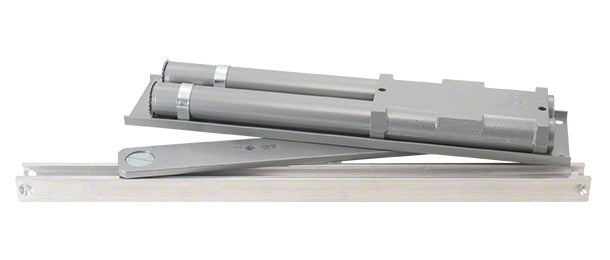

The LCN 6030 Series Pacer® Overhead Concealed Door Closer (SKU 6035AL) is a heavy-duty overhead concealed door closer engineered to fit a shallow 1-3/4" (45 mm) x 4" (102 mm) transom. A single lever arm and roller assembly deliver smooth, quiet door control while painted finish and track function options meet architectural requirements. Non-handed and center-hung for double-acting applications; a Center-Hung Top Pivot is required and sold separately. Fixed spring sizes meet ADA requirements and accommodate interior doors to 54" (1.37 m) and exterior doors to 42" (1.07 m). UL/cUL listing and ANSI A156.4 Grade 1 certification ensure code-compliant, durable performance for commercial overhead concealed door closer installations.
Order the LCN 6035AL overhead concealed door closer today for a shallow-transom, ADA-compliant solution with certified Grade 1 durability.
