LCN Dark Bronze Concealed Overhead Door Closer No Hold-Open ADA 3
LCN Dark Bronze Concealed Overhead Door Closer No Hold-Open ADA 3
Regular price
$2,273.64 CAD
Regular price
Sale price
$2,273.64 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 6033DU
Shipping Weight: 14.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 14.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Body Height
1-3/4
Body Length
16-7/8
Body Width
3-23/32
Closer Type
Overhead Concealed
Cover Plate Length
18-1/4
Cover Plate Width
4
Door Height
96
Finish/Color
Dark Bronze
Handing
Double Acting
Hold Open Option Available
Yes
Recommended Door Type
Aluminum,Hollow Metal
Slide Track Depth
1-7/16
Slide Track Length
22-1/2
UL Listed
Yes
Overview
- Requires minimum 1-3/4" x 4" (45 x 102 mm) wide transom
- Certified to ANSI Standard A156.4, Grade 1
- UL and cUL listed for self-closing doors without hold-open
- Fixed spring sizes available for interior doors to 54" (1.37 m) and exterior doors to 42" (1.07 m)
- Backcheck plus non-critical speed and latch speed adjustments

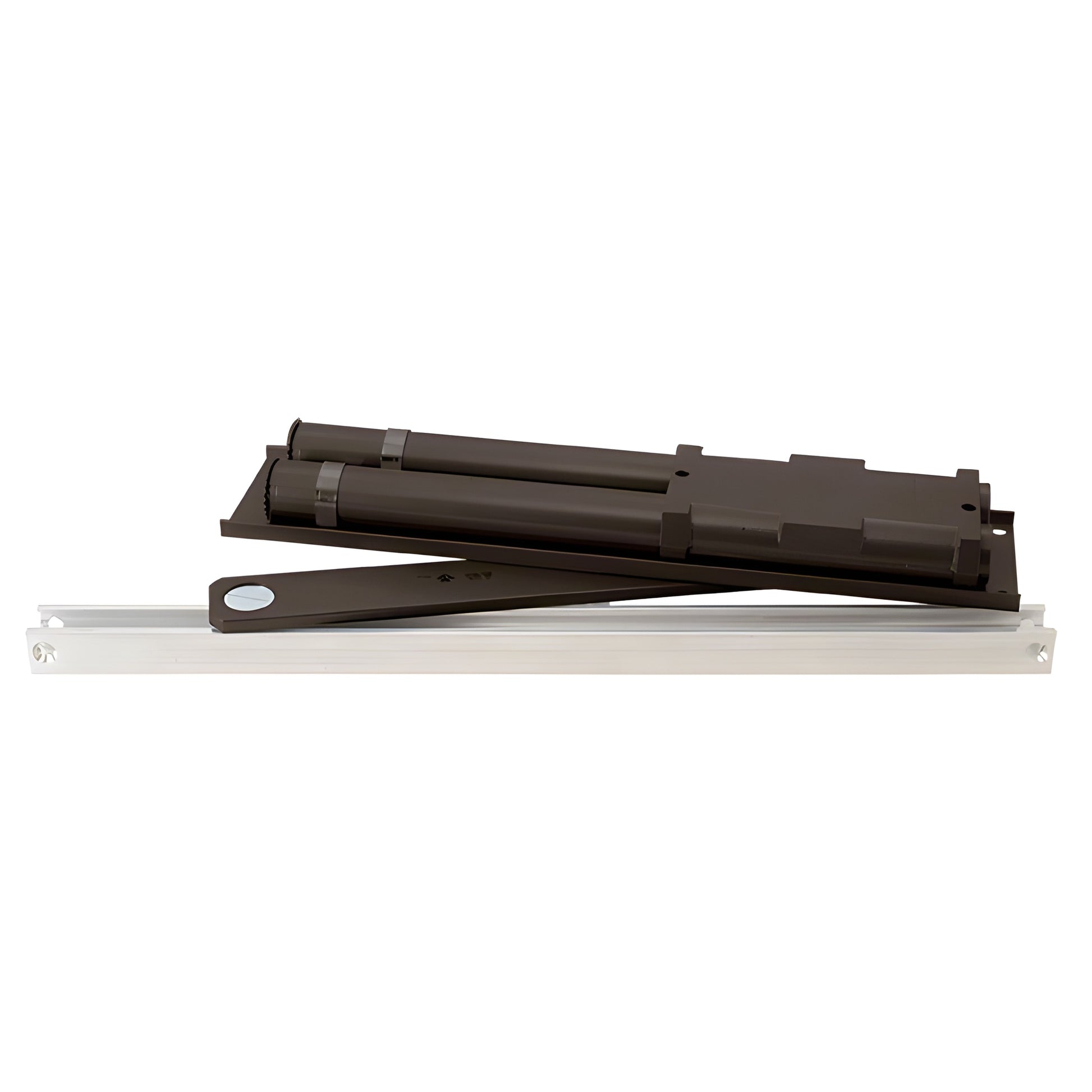

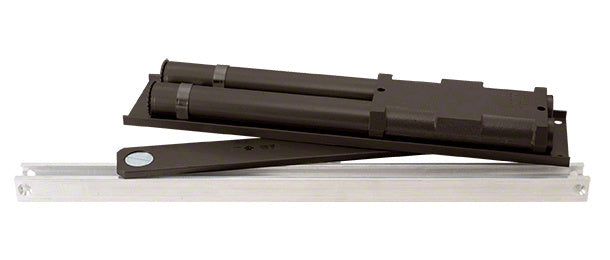

The LCN 6030 Series Pacer® Overhead Concealed Door Closer fits a shallow 1-3/4" x 4" (45 x 102 mm) transom and delivers heavy-duty, concealed door control for commercial and institutional applications. Its single lever arm with roller assembly provides smooth, quiet operation; the non-handed, center-hung design supports double-acting doors (Center-Hung Top Pivot required, ordered separately). Available fixed spring sizes support ADA requirements and accommodate interior doors up to 54" and exterior doors up to 42". UL/cUL listings and ANSI A156.4 Grade 1 certification make this an ideal overhead concealed door closer for high-traffic, code-compliant installations. SKU: 6033DU.
Order the LCN 6030 Series Pacer® overhead concealed closer (SKU 6033DU) for a compact, code-compliant solution—contact sales to confirm finish and pivot requirements.
