CRL

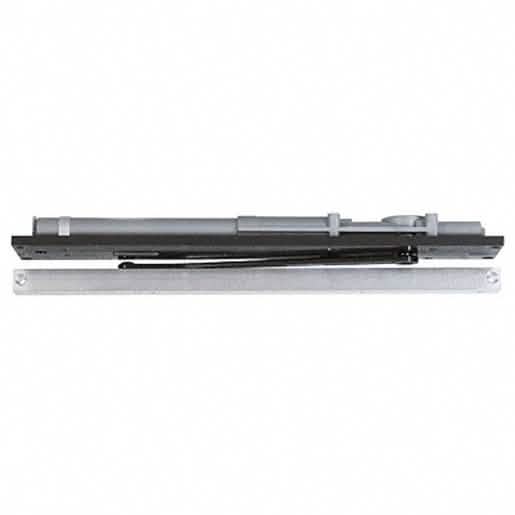

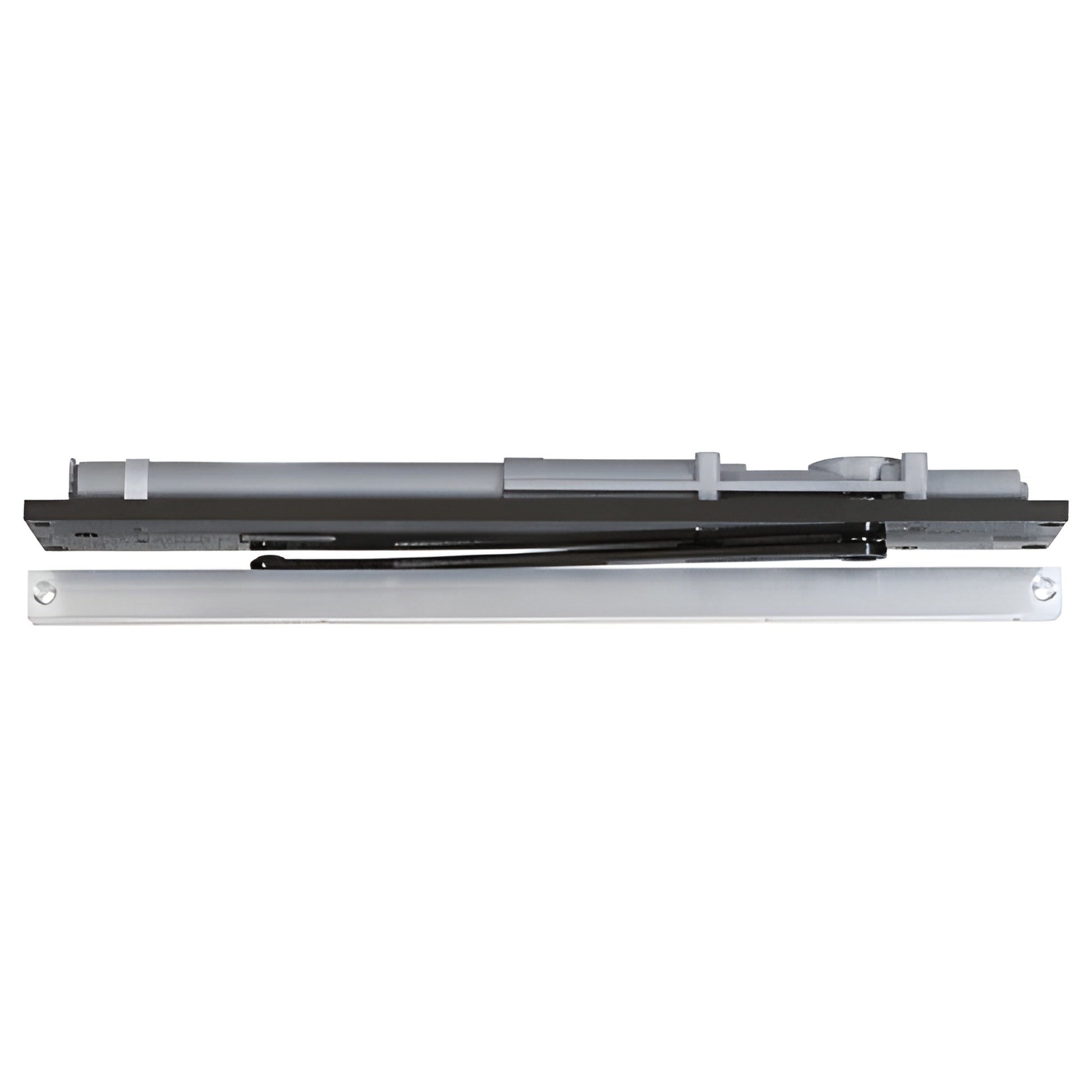

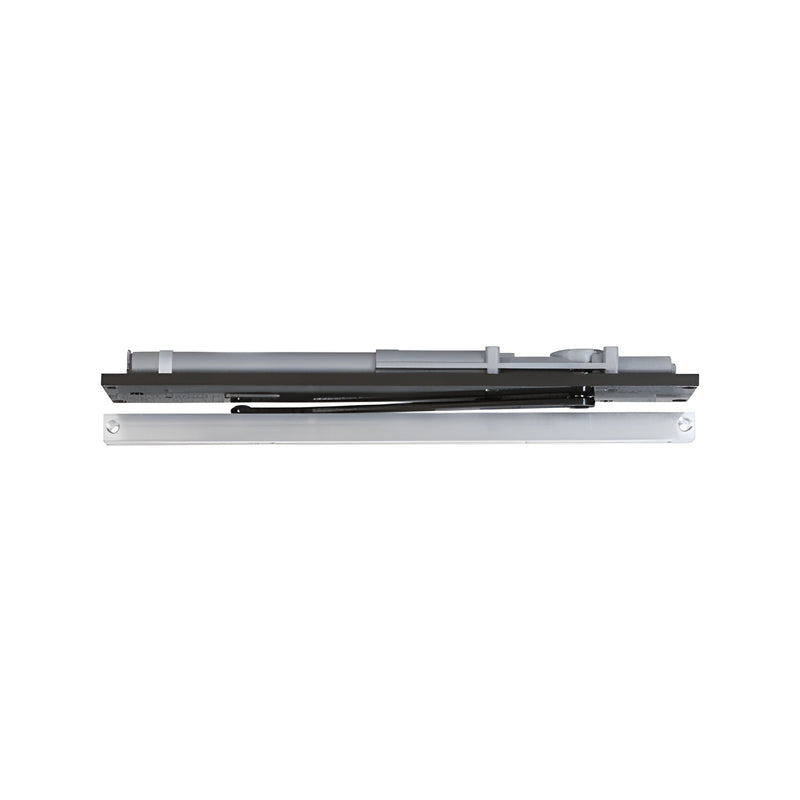

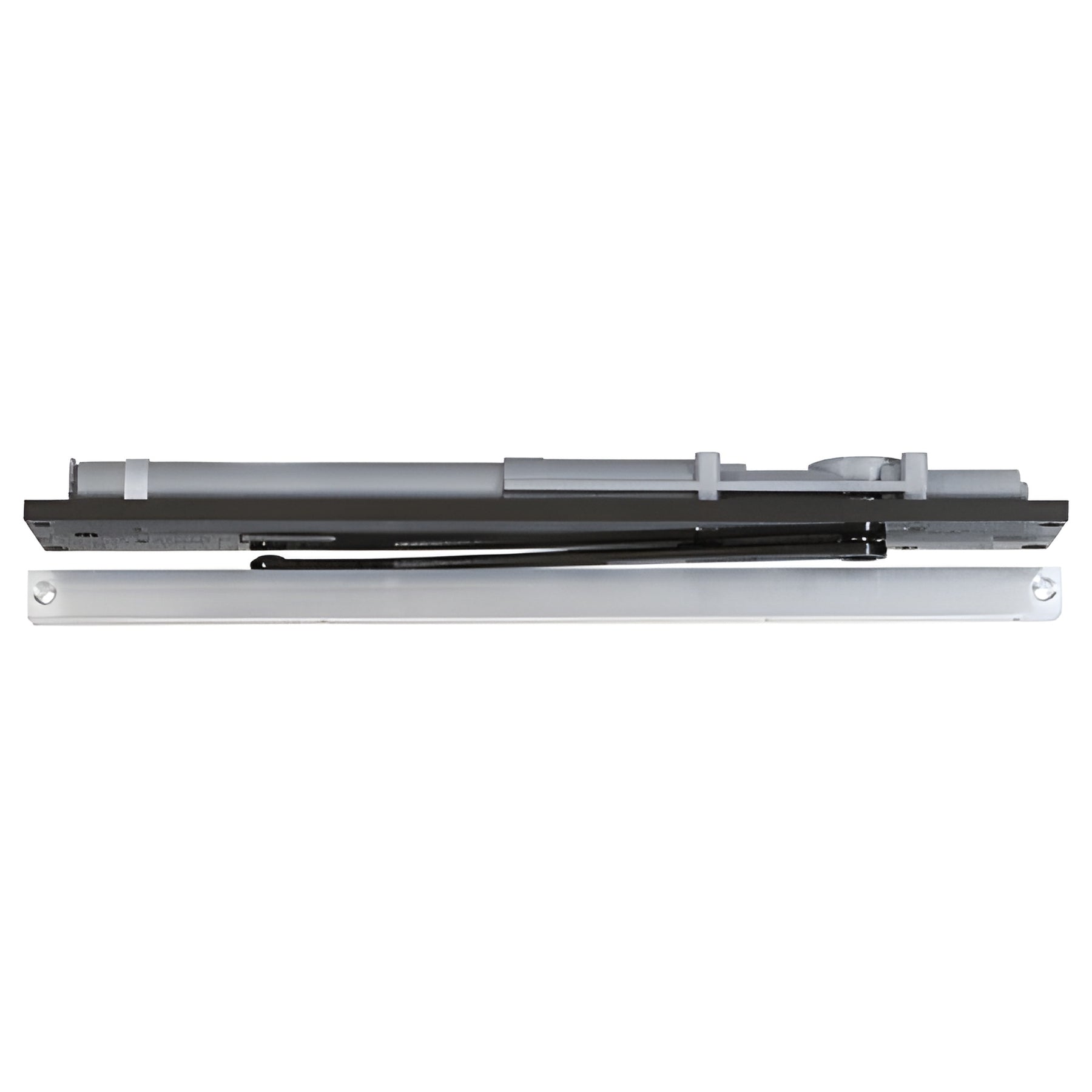

LCN Concealed Overhead Door Closer Size 4 RH No Hold Open Dark Bronze
LCN Concealed Overhead Door Closer Size 4 RH No Hold Open Dark Bronze
Regular price
$2,790.57 CAD
Regular price
Sale price
$2,790.57 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 2034RDU
Shipping Weight: 10.91 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 10.91 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Body Height
1-5/8 in. (41.3 mm)
Body Length
20-5/8 in. (523.9 mm)
Body Width
3-23/32 in. (94.5 mm)
Case Quantity
2
Closer Type
Overhead Concealed
Cover Plate Length
21-7/8 in. (555.6 mm)
Cover Plate Width
4 in. (101.6 mm)
Door Height
96 in. (2438.4 mm)
Finish/Color
Dark Bronze
Handing
Right Hand
Hold Open Option Available
Yes
Recommended Door Type
Aluminum,Hollow Metal
Slide Track Depth
1-3/8 in. (34.9 mm)
Slide Track Length
22-1/2 in. (571.5 mm)
UL Listed
Yes
Overview
- Requires minimum 1-3/4" (44.5 mm) x 4" (102 mm) wide transom — ideal for shallow-transom installations
- Certified to ANSI A156.4, Grade 1 for heavy-duty performance
- UL and cUL listed for self-closing doors (without hold-open)
- Fixed spring sizes available — ADA-compliant for interior doors to 54" (1.37 m) and exterior doors to 42" (1.07 m)
The LCN 2030 Series Pacer® Overhead Concealed Closer (SKU 2034RDU) is a heavy-duty overhead concealed door closer engineered for shallow 1-3/4" (44.5 mm) x 4" (102 mm) transoms. Its single lever arm and roller assembly deliver smooth, quiet door control, and multiple finishes and track functions meet demanding architectural requirements. Handed for right or left swing doors, the closer's fixed spring sizes support ADA requirements for interior and exterior openings. Listed to UL/cUL and certified ANSI A156.4 Grade 1, this closer is a reliable choice for commercial and institutional overhead concealed closer applications.
Order the LCN 2034RDU overhead concealed closer today for a durable, ADA-compliant solution.
