Norton® 5700 LEO® Low-Energy Aluminum Automatic Door Operator

• Complies with A.D.A. accessibility guidelines
• Retains proper closing force while providing A.D.A. mandated opening force
• Meets ANSI/BHMA A156.19 and A.D.A. A156.4
• Easy to install and set up
• Non-handed for push or pull side applications
• UL Listed

Norton® 5700 Series — LEO® Low Energy Power Door Operator (SKU: LE05741A)

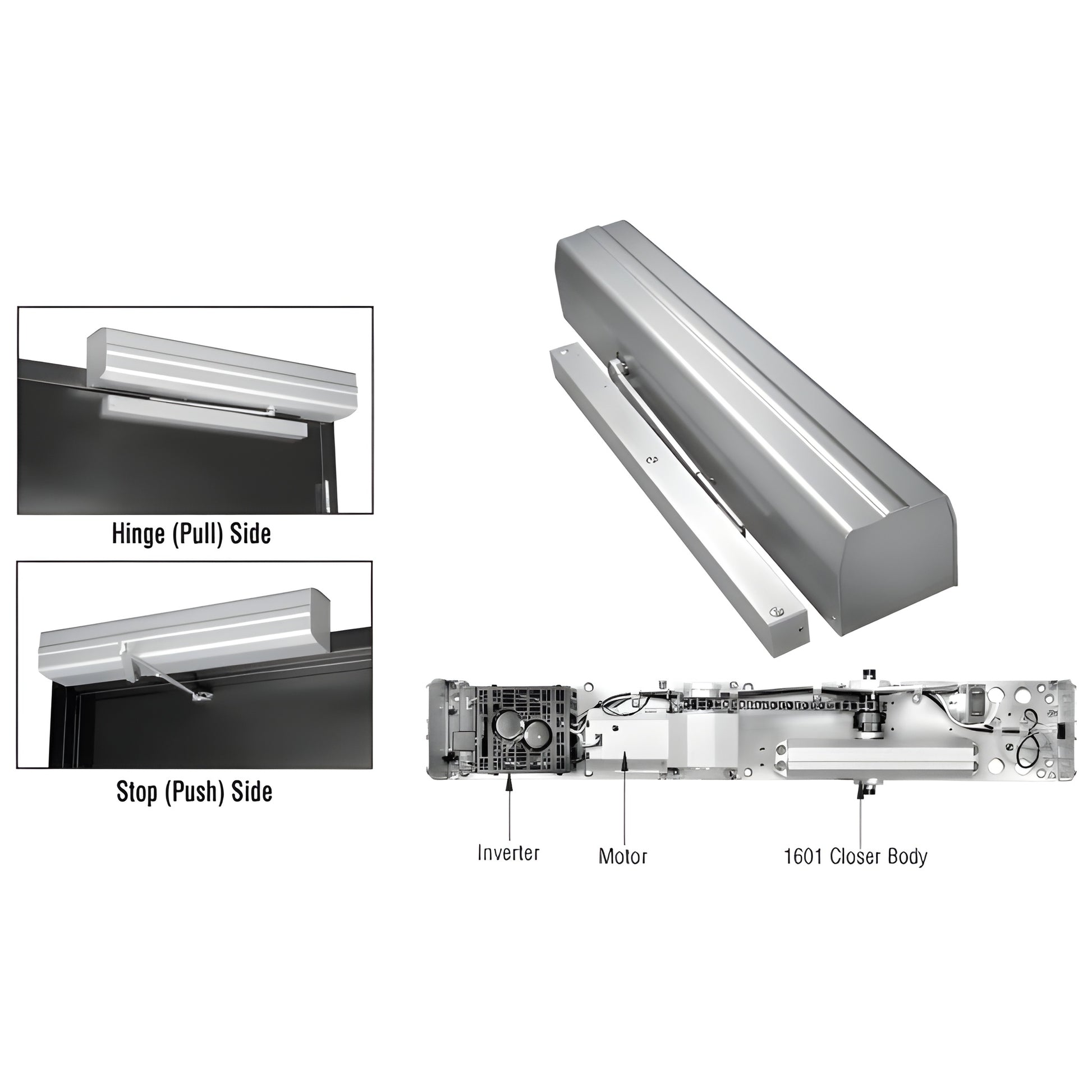

LEO® is a compact, quiet low energy power door operator designed for ADA assist openings. The patented Norton design installs in minutes and consists of three core components: inverter, motor, and the 1601 closer body. Because the 1601 closer controls the closing cycle, the drive train and motor remain disengaged during manual opening — preserving closer efficiency and providing minimal resistance to the user. In a power outage the door still closes by the closer's spring force.

Key differentiators: quiet operation, fast installation, dual functionality as both power operator and standard door closer, and compatibility with wall switches, motion sensors, or radio frequency devices. Ideal for offices, schools, retirement facilities, churches, and other locations where low energy ADA-compliant automatic door assist is required.

NOTE: This is a low energy power operator intended for A.D.A. assist openings only. It is not intended for applications requiring a full-time automatic operator.

SPECIFICATIONS:
Power Input: 120V AC, 60Hz
Current Draw: 0.6 A
Relay Output: DPDT — N.O./N.C. (jumper)
External On/Off Switch
Adjustable Hydraulic Backcheck
Adjustable Hold Open: 0 to 30 seconds
Warranty: 2 Year Limited
Finish: Sprayed combination of waterborne acrylic and polyester powder coat
Dimensions:
Body with cover: 29" (737 mm) x 5-1/4" (133 mm)
Body projection: 4-5/8" (117 mm)
Track assembly: 23" (584 mm)

NOTE: Contact CRL Technical Sales for use on doors exceeding 250 lbs. (113 kg).

NOTE: Door switches and sensors are not included and must be ordered separately.

Product Warning:

This product is a low energy operator intended for ADA assist openings only. It is not intended for full-time automatic opener applications.

This operator can be wired to work with electric strikes or magnetic locks; strikes or locks require a separate power supply.
