Product Details
- Closer Body is Completely Concealed in Transom
- Concealed Arm and Slide Track in Door
- Best Suited for High Profile Applications
- A.D.A. Opening Forces to Conform with Barrier Code Requirements While Still Providing Door Control
- ANSI A156.4 – Grade 1
- UL Listed

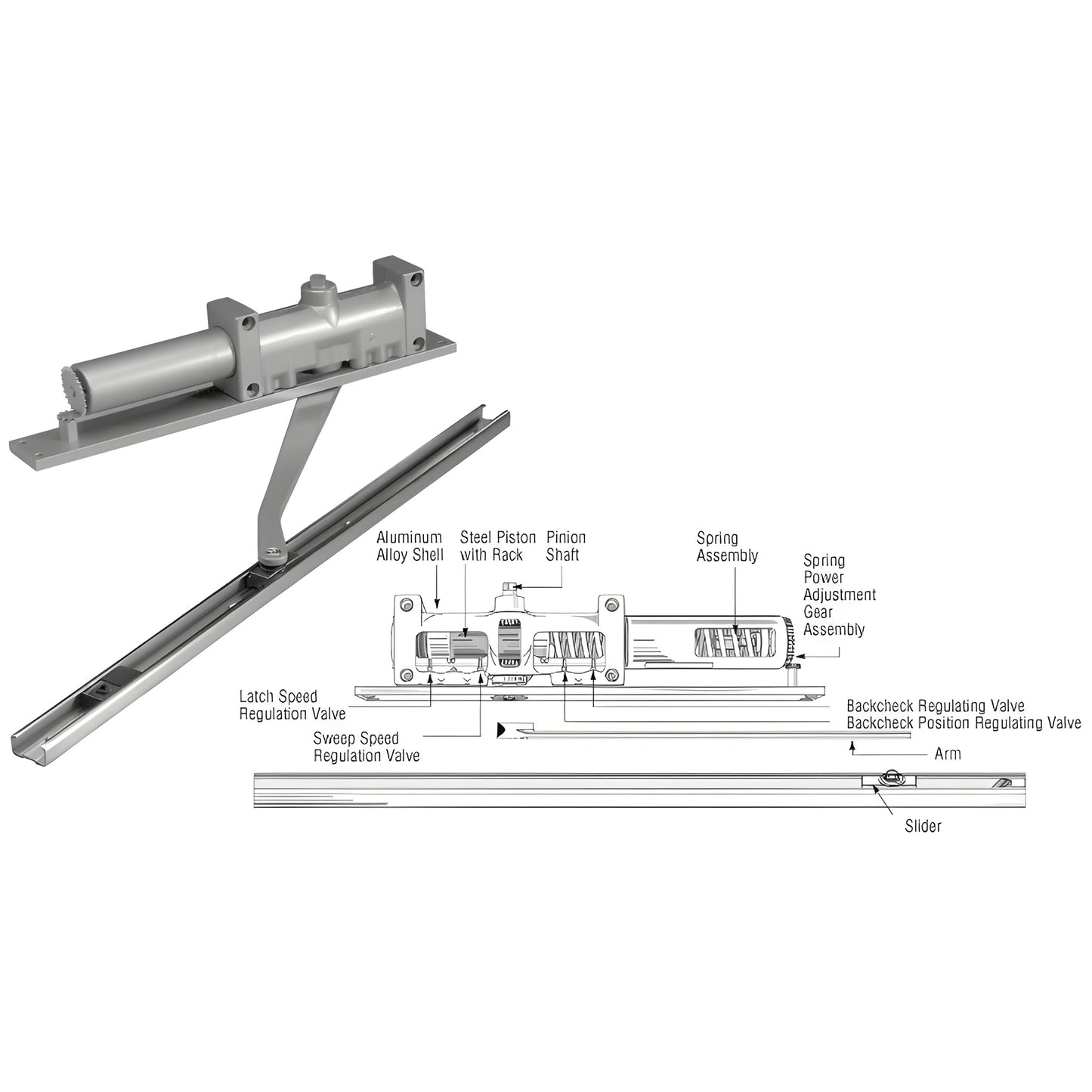

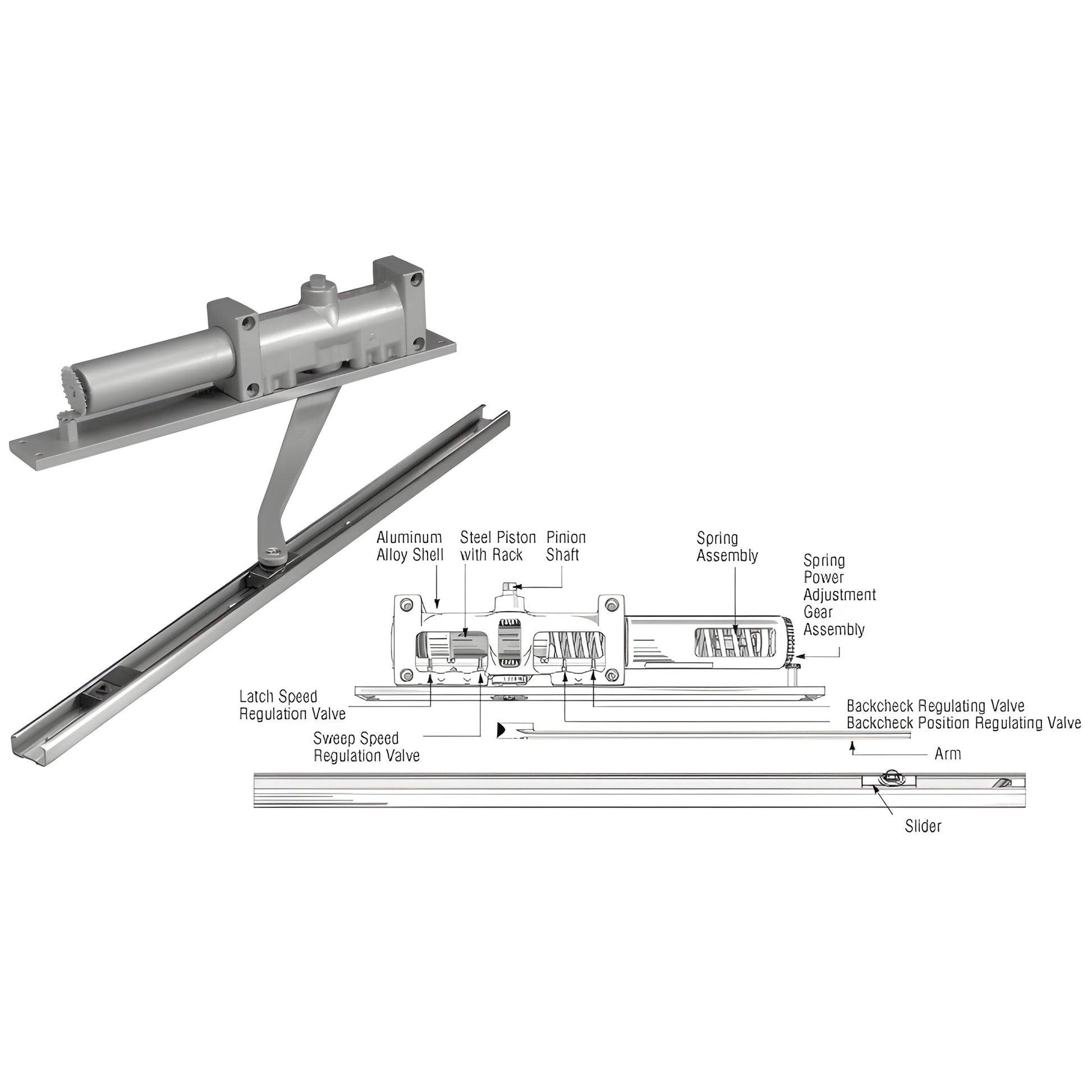

CRL Overhead Concealed Door Closers provide an aesthetically appealing way to close a door. In situations where a closer is needed but concealment in the frame header is required or desired, the Norton® 7900 Closer is the ideal solution for door control. Once installed, only the solid one-piece arm is visible when the door is open; therefore, this unit provides a high degree of vandal resistance. When the door is closed, the closer, arm and slide track are fully concealed.
Norton® 7900 Overhead Closers are best suited for high-profile applications, such as office buildings or conference centers. This heavy-duty, durable closer package includes a steel track, steel slider, polymer slider pads, and dress plates. The steel track and slider offer additional strength to the unit, while the polymer pads provide quiet operation and easy assembly. Standard features include rack and pinion operation, adjustable sweep and latch, plus adjustable backcheck cushioning and positioning.
PACKAGING INFORMATION:
All Norton® Series 7900 Closers are packed one to a box, with an arm and a slide track, one hex key for control valve adjustment (and hold open tension adjustment), one hex key for arm to track attachment, and one hex key for anchoring cushion stop in track. Installation instructions and both wood screws and metal screws for mounting are included.
SPECIFICATIONS:
Aluminum Alloy Shell
Steel Track and Slider
Polymer Slider Pads
Non-Critical Independent Valves
Shock Absorbing Door Stop
Rack and Pinion Operation
Adjustable Backcheck Cushioning
Adjustable Backcheck Positioning
Multi-Size Adjustable Spring Power
Adjustable Hold Open Option
ANSI A156.4, Grade 1
A.D.A. ANSI Standard A117.1
UL and ULC Listed
10 Year Limited Warranty
NYC Listed – 41-60-SM
Product Warning:
Closers set to comply with A.D.A. specified opening forces might not provide adequate spring power to control and close the door due to varying site conditions and door size.
