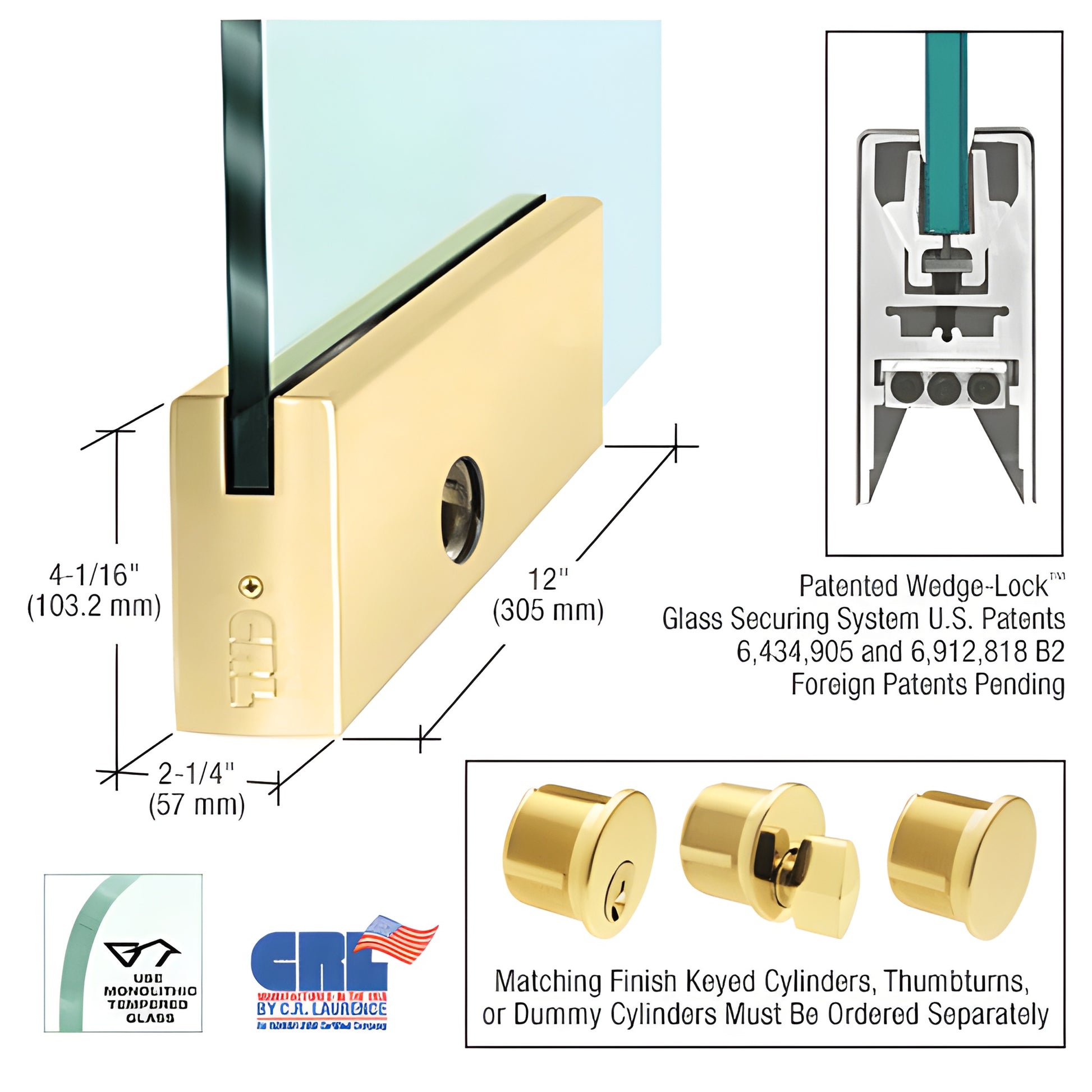

Polished Brass 4in Square DRS Door Rail w/ Lock for 3/4in Glass, 12in

• 12" (305 mm) length for 3/4" (19 mm) glass
• Use monolithic tempered glass
• Patented Wedge-Lock® glass securing system
• Models to fit 3/8" to 3/4" (10 to 19 mm) glass
• Available in several stock architectural finishes — custom finishes available
• Available with and without locks
• Matching sidelite rails available

Our innovative glass entrance solution, the CRL Wedge-Lock® Door Rail System, uses the exclusive CRL Wedge-Lock® Securing System (U.S. Patents 6,434,905 and 6,912,818 B2; Canadian Patent 2,419,706; European Patent EP 1 404 939 B1). This patented wedge action applies pressure from the bottom of the rail via two glass-retaining aluminum extrusions and a flat stainless steel bar. As the bar is pulled down with socket head cap bolts, the angled extrusions engage the grooved rail and squeeze together—producing exceptional holding force (over 900 lbs. in our 9" (228.6 mm) corner rail), and even greater force in full-length rails. Ideal for secure commercial glass doors and other high-load storefront applications.

NOTE: Actual product height: 4-1/16" (103 mm).

The Wedge-Lock® system provides faster installation than most door rails—experienced installers can prepare a door for hanging in less than ten minutes. Rails come fully fabricated and ready-to-install with end caps installed. After installing the rail, attach the door arm or pivot (not included) to the adjustable door alignment slide already assembled in the rail.

The built-in Adjustable Door Alignment System allows ±1/8" (3.2 mm) adjustment toward or away from the jamb without removing the door, standard on both top and bottom rails. To adjust on-site, remove the end cap to access three socket head cap bolts: the center bolt secures the slide; the outer bolts provide the ±1/8" adjustment. The low-profile slide allows pivots with slotted grooves to be positioned off the American Standard setback (2-3/4" / 69.8 mm), enabling fabrication for vertically out-of-square openings.

Reasons to choose Wedge-Lock® Door Rails: models accept 3/8"–3/4" (10–19 mm) glass; a rigid single-component housing that resists shifting; internal components do not require removal for installation; and durable glass-securing pads built for extreme environments. All Wedge-Lock® Door Rails include the built-in jamb alignment block; arms and pivots are ordered separately.

CRL Wedge-Lock® Door Rails are offered in multiple standard finishes and can be quoted in custom finishes and widths. Rail specifications, templates, and hardware packages are available from CRL Technical Sales via e-mail. SKU: DR4SPB34PL.
