Polished Brass Low-Profile Square Patch Rail Lock for 1/2" Glass, 8"

• 8" (203 mm) length for 1/2" (12 mm) glass
• Use monolithic tempered glass
• Patented Wedge-Lock® glass securing system (fastest installation time)
• Low profile rails: only 2-5/16" (59 mm) tall
• Available in several stock architectural finishes; custom finishes available
• Available without locks
• Matching sidelite rails available

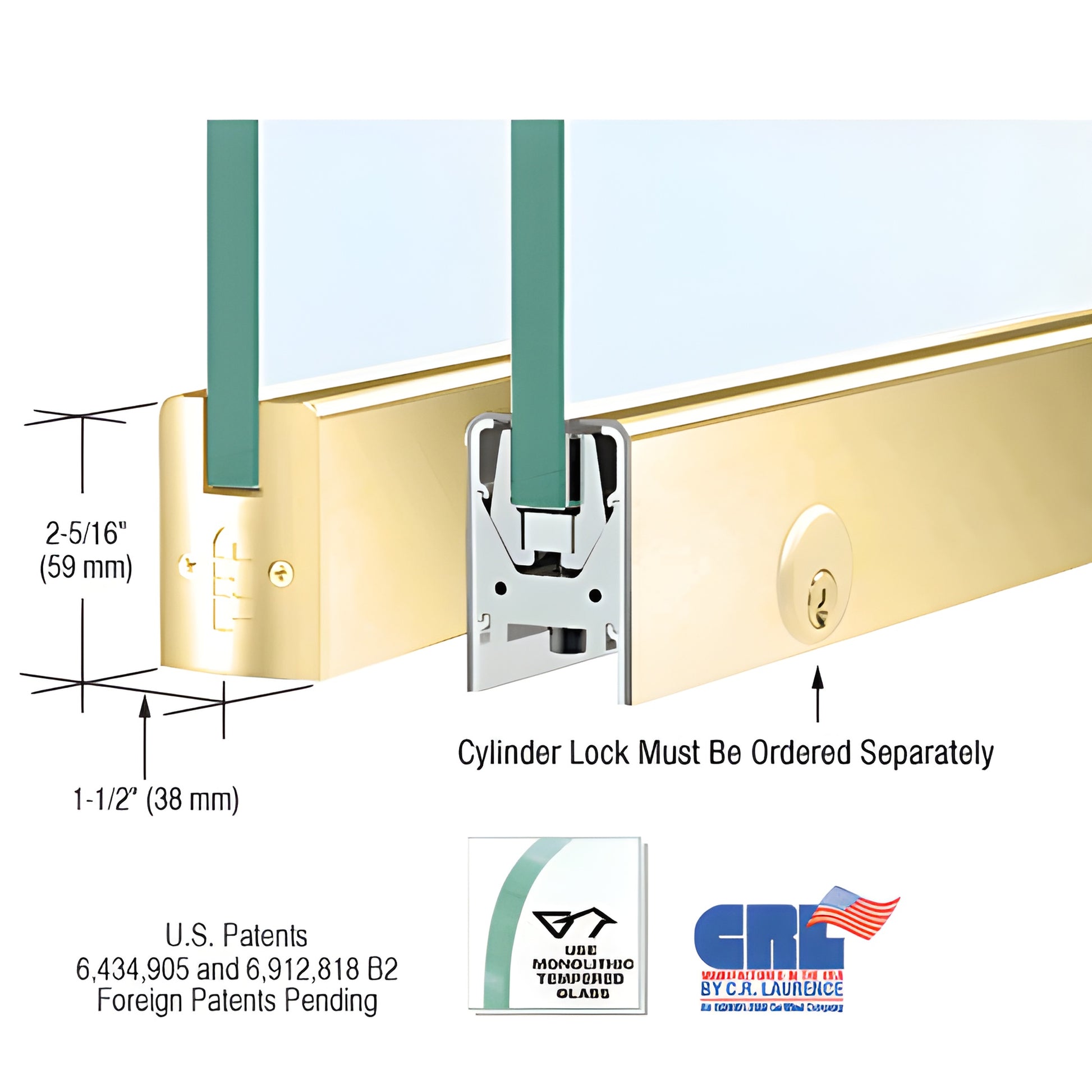

Our CRL Low Profile Door Rail (SKU: DR2SPB12PL) measures 2-5/16" (59 mm) tall by 1-1/2" (38 mm) wide and incorporates the patented Wedge-Lock® Glass Securing System (U.S. Patents 6,434,905 and 6,912,818 B2; Canadian Patent 2,419,706; European Patent EP 1 404 939 B1). CRL low profile door rails arrive complete with end caps, installation instructions, and adjustment wrenches—ready to install for commercial and architectural glass door projects.

NOTE: Actual product height: 2-5/16" (59 mm)

The Wedge-Lock® system provides a secure attachment to the glass plus the fastest installation time among door rail systems—experienced installers can prepare a door in under ten minutes. Rails come fully fabricated with end caps installed; after installing the rail, attach the door arm or pivot (not included) to the adjustable door alignment slide already assembled in the rail. The adjustable alignment system allows 1/8" (3 mm) of in/out adjustment without removing the door—standard on both top and bottom rails.

To adjust after installation, remove the end cap to access three socket head cap bolts: the center secures the adjustable slide, and the two outer bolts adjust the slide 1/8" (3 mm) in or out. The low-profile slide allows pivots with slotted grooves to be positioned other than the American Standard setback, enabling fabrication for vertically out-of-square openings.

Reasons to choose Wedge-Lock® door rails:

• Models accept 3/8" to 3/4" (10 to 19 mm) glass
• Rigid single-component housing resists shifting and maintains adjustment
• Internal components remain assembled—no removal required before installation
• Durable glass securing pads designed for longevity in extreme environments

NOTE: All Wedge-Lock® rails feature a built-in jamb alignment block. Arms and pivots must be ordered separately to meet job requirements.

CRL Wedge-Lock® door rails are available in standard finishes and can be quoted in custom finishes and widths. Rail specifications, templates, and hardware packages are available from CRL Technical Sales via e-mail.

ORDERING INFORMATION:
• All door rails are supplied with the standard
