Polished Brass Low-Profile DRS Patch Rail 8" w/ Lock for 3/8" Glass

• 8" (203 mm) length for 3/8" (10 mm) glass
• Use monolithic tempered glass
• Patented Wedge-Lock® glass securing system
• Low profile rails — only 2-5/16" (59 mm) tall
• Available in several stock architectural finishes; custom finishes available
• Available without locks
• Matching sidelite rails available

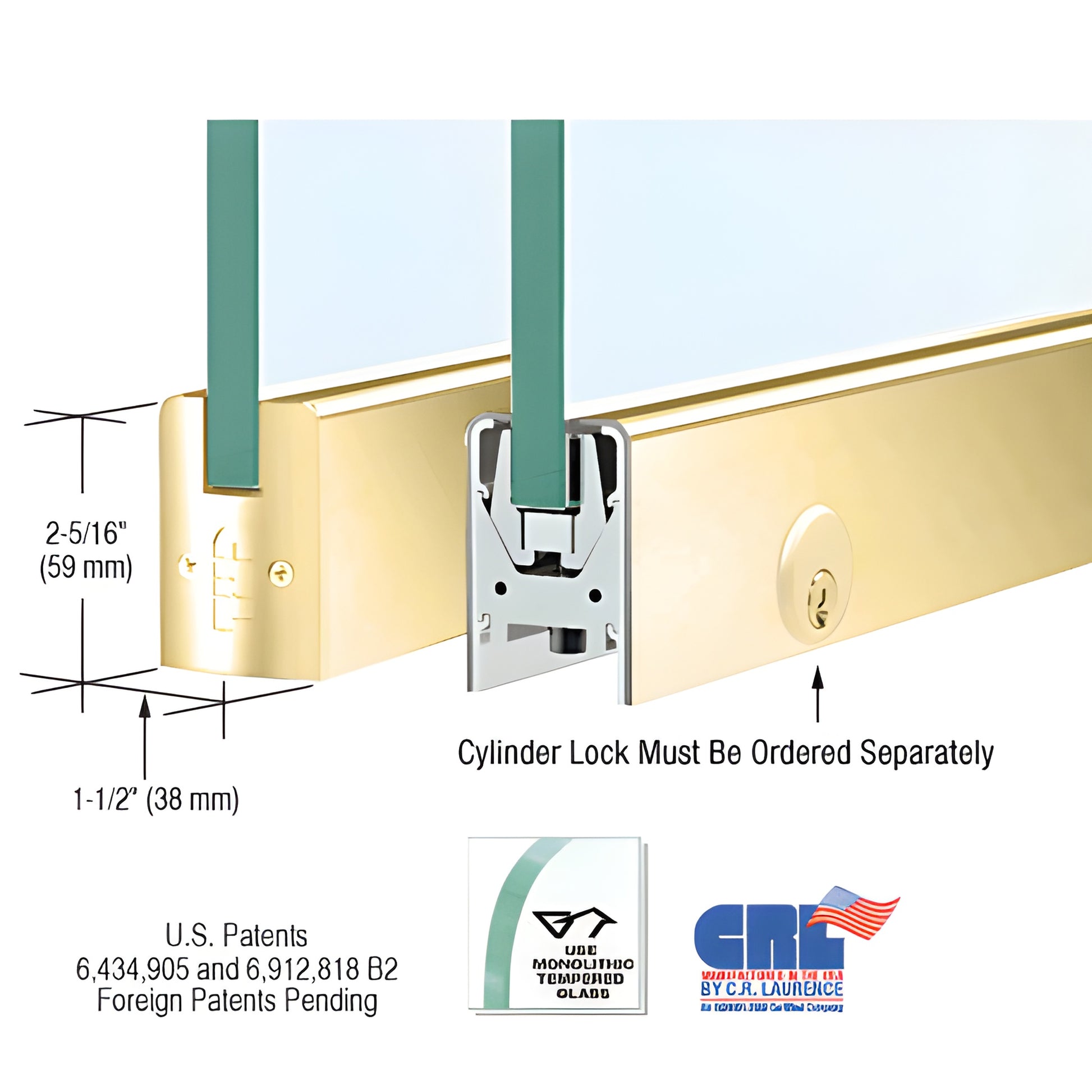

Our CRL Low Profile Door Rail (SKU: DR2SPB38PL) measures 2-5/16" (59 mm) tall by 1-1/2" (38 mm) wide and features the patented Wedge-Lock® Glass Securing System (U.S. Patents 6,434,905 and 6,912,818 B2; Canadian Patent 2,419,706; European Patent EP 1 404 939 B1). These low profile door rails come complete with end caps, installation instructions, and adjustment wrenches for fast, ready-to-install operation.

NOTE: Actual product height: 2-5/16" (59 mm).

The Wedge-Lock® system provides a secure attachment to the glass and the fastest installation time among door rail systems—experienced installers can prepare a door in under ten minutes. Rails arrive fully fabricated with end caps installed. After mounting the rail, attach the door arm or pivot (not included) to the adjustable door alignment slide already assembled in the rail. The standard Adjustable Door Alignment System (top and bottom rails) allows ±1/8" (±3 mm) adjustment toward or away from the jamb without removing the door.

To adjust after installation, remove the end cap to reveal three socket head cap bolts: the center bolt locks the slide; the two outer bolts provide the ±1/8" (3 mm) adjustment. The low-profile adjustable slide and slotted pivot grooves allow fabrication for vertically out-of-square openings and positions other than the American Standard setback of 2-3/4" (69.8 mm).

Why choose Wedge-Lock® door rails:

• Accepts 3/8" to 3/4" (10–19 mm) glass (select models)
• Rigid single-component housing that resists shift and loss of adjustment
• Internal components remain installed during mounting—no disassembly required
• Durable glass securing pads for longevity in extreme environments

NOTE: All Wedge-Lock® door rails include a built-in jamb alignment block; arms and pivots must be ordered separately to meet specific job requirements.

CRL Wedge-Lock® door rails are available in several standard finishes and can be quoted in custom finishes and widths. Rail specifications, templates, and hardware packages are available from CRL Technical Sales via e-mail.

ORDERING INFORMATION:
• All door rails are supplied with the standard Kwik-Adjust™ Pivot Alignment System
