Polished Brass DRS 8" Low-Profile Door Patch Rail 12mm Glass No Lock

• 8" (203 mm) Length for 1/2" (12 mm) Glass
• Use Monolithic Tempered Glass
• Patented Wedge-Lock® Glass Securing System
• Low Profile Rails are Only 2-5/16" (59 mm) Tall
• Available in Several Stock Architectural Finishes - Custom Finishes Available
• Available Without Locks Only
• Matching Sidelite Rails Available

SKU: DR2SPB12P

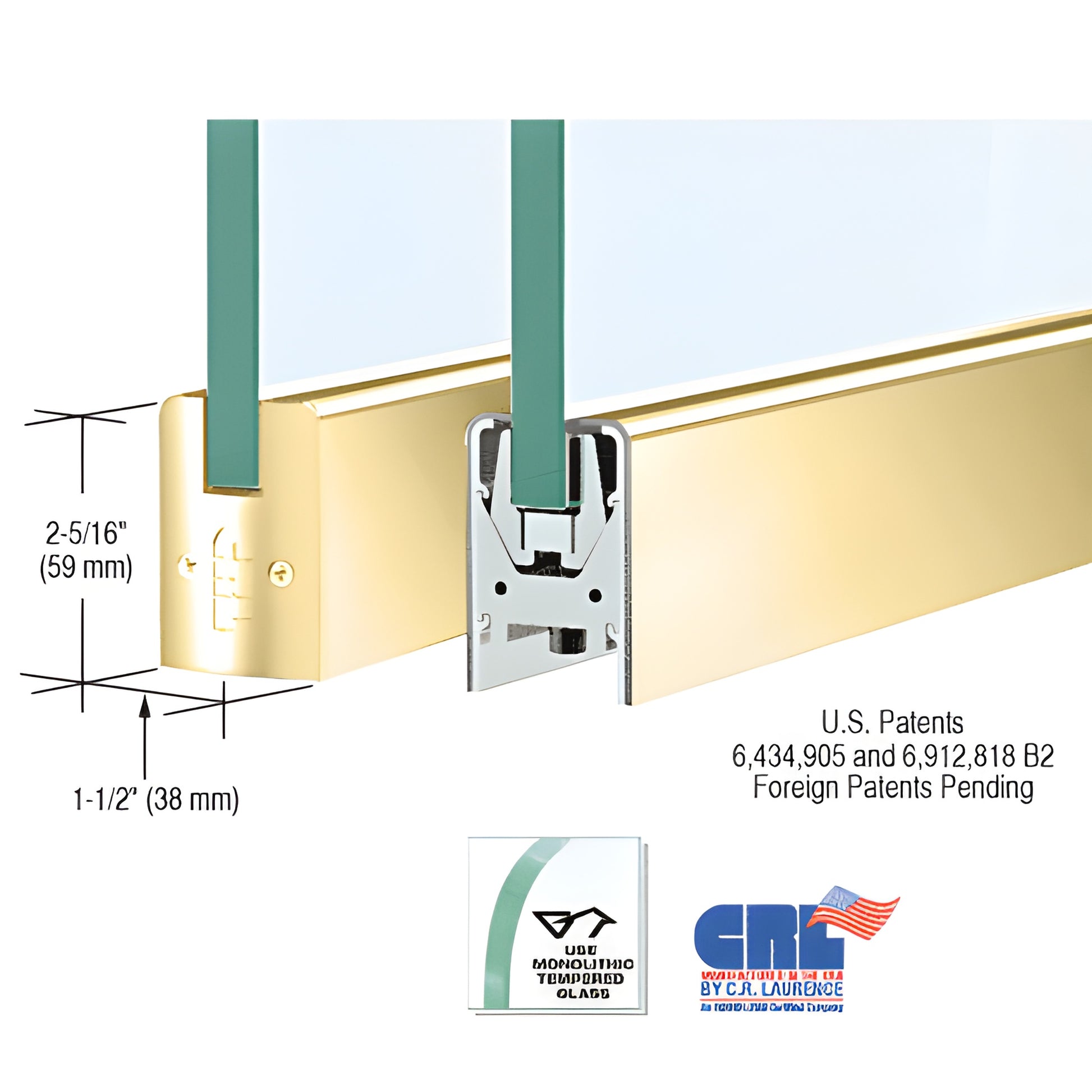

Our CRL Low Profile Door Rail is a compact, ready-to-install door rail engineered for 1/2" (12 mm) monolithic tempered glass. Measuring only 2-5/16" (59 mm) high by 1-1/2" (38 mm) wide, the rail integrates the patented Wedge-Lock® Glass Securing System (U.S. Patents 6,434,905 and 6,912,818 B2; Canadian Patent 2,419,706; European Patent EP 1 404 939 B1) for fast, secure glass retention.

Key differentiators:

• Fast installation: experienced installers can prepare a door in under ten minutes using the Wedge-Lock® system.
• Durable single-piece housing that resists shift or loss of adjustment over time (not made of two halves).
• Adjustable Door Alignment Slide (standard on top and bottom rails) allows +/-1/8" (3 mm) adjustment without removing the door.
• Pre-assembled with End Caps, installation instructions, and adjustment wrenches included.
• Designed to accept 3/8" to 3/4" (10 to 19 mm) glass in compatible models; glass pads built for longevity in extreme environments.
• Built-in Jamb Alignment Block; arms and pivots sold separately to meet job requirements.

The Adjustable Door Alignment System uses three socket head cap bolts hidden behind the end cap: the center bolt secures the slide, and the two outer bolts provide the 1/8" (3 mm) in/out adjustment. The low-profile slide permits pivot placement other than the American Standard setback, enabling fabrication for vertically out-of-square openings.

Finishes and ordering:

• Available in several standard architectural finishes; custom finishes and widths quoted on request.
• Models with locks are supplied with the lock mechanism installed; matching finish keyed cylinders or thumbturns must be ordered separately.
• End Caps are included in stock rail lengths; specify door rail length (including End Caps) for custom lengths.
• All door rails ship with the Kwik-Adjust™ Pivot Alignment System; closer arms and floor or overhead pivots are sold separately.
• Pivot inserts (1NT701, 1NT703, 1NT704) sold separately for overhead or floor closers.
• Rail specifications, templates, and hardware packages are available from CRL Technical Sales via <
