8" Polished Brass Tapered Patch Rail w/ Lock for 1/2" Glass Door

• 8" (203 mm) Length for 1/2" (12 mm) Glass
• Use Monolithic Tempered Glass
• Patented Wedge-Lock® Glass Securing System
• Low Profile Rails are Only 2-5/16" (59 mm) Tall
• Available in Several Stock Architectural Finishes - Custom Finishes Available
• Available Without Locks Only
• Matching Sidelite Rails Available

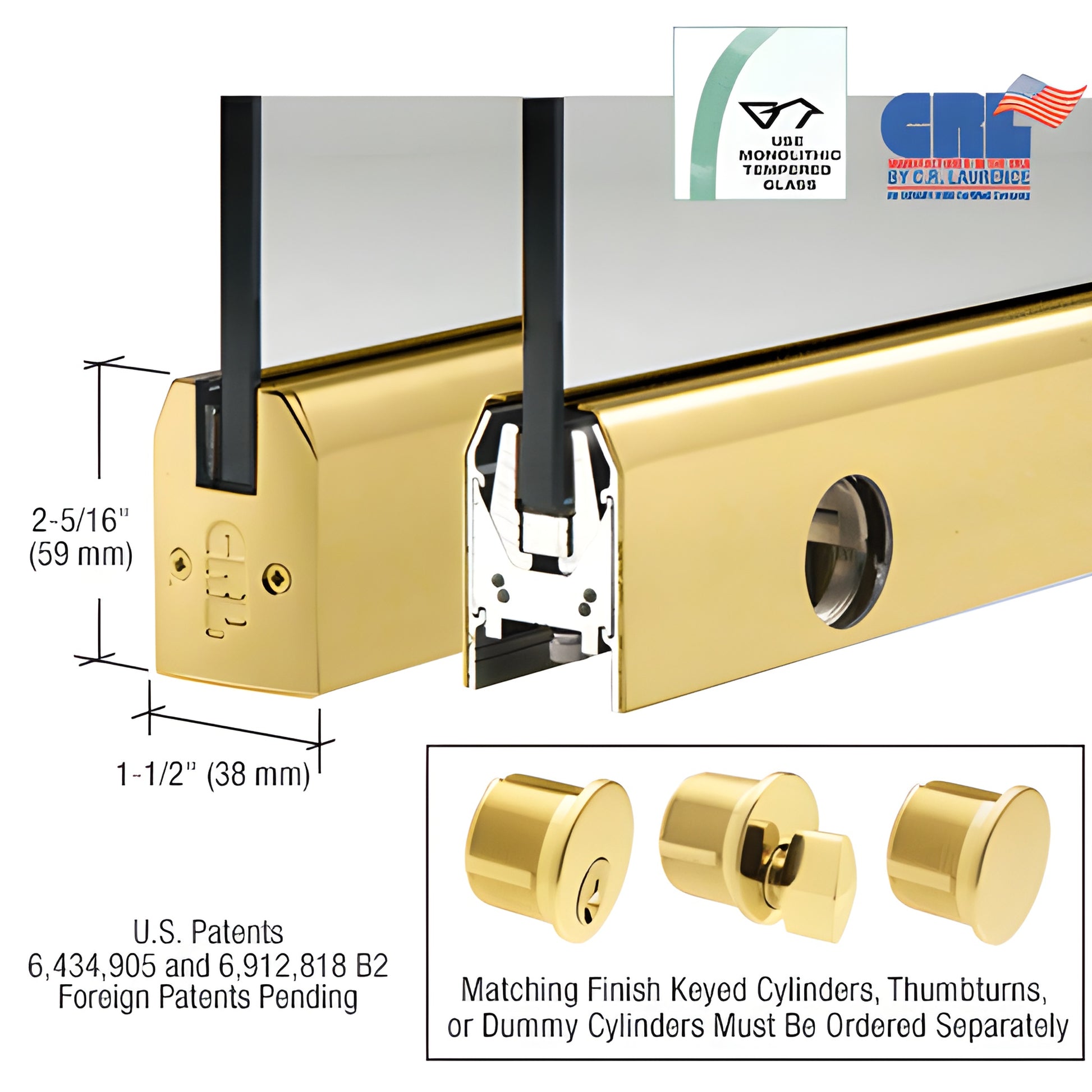

Our CRL Low Profile Door Rail (SKU: DR2TPB12PL) is a compact door rail for 1/2" (12 mm) tempered glass measuring only 2-5/16" (59 mm) high by 1-1/2" (38 mm) wide. It features the patented Wedge-Lock® Glass Securing System (U.S. Patents 6,434,905 and 6,912,818 B2; Canadian Patent 2,419,706; European Patent EP 1 404 939 B1) for fast, secure glass attachment and the industry’s quickest installation times for low profile door rail systems.

Rails ship ready-to-install with End Caps, installation instructions and adjustment wrenches. The standard Adjustable Door Alignment System (top and bottom rails) allows ±1/8" (3 mm) adjustment toward or away from the jamb without removing the door. After installation you access three socket head cap bolts by removing the End Cap: the center bolt secures the slide, the two outer bolts provide the ±1/8" adjustment.

Key differentiators and long-tail benefits:

• Fast installation: experienced installers can prepare a door in under ten minutes using the Wedge-Lock® system.
• Durable single-component housing: resists shift and long-term loss of adjustment because the rail is not made from two halves.
• Internal components stay assembled for easier installation—no disassembly required.
• Glass pad design for longevity in extreme environments.
• Accepts a range of glass thicknesses (models available for 3/8" to 3/4" glass).
• Built-in Jamb Alignment Block standard; arms and pivots ordered separately to meet job requirements.

NOTE: Actual Product Height: 2-5/16" (59 mm).

The low-profile adjustable slide allows pivot placement other than the American Standard Setback (2-3/4" / 69.8 mm), enabling fabrication for vertically out-of-square openings.

Finishes & quoting: Available in several standard architectural finishes; custom finishes and widths quoted on request. Rail specifications, templates and hardware packages are available from CRL Technical Sales via e-mail.
