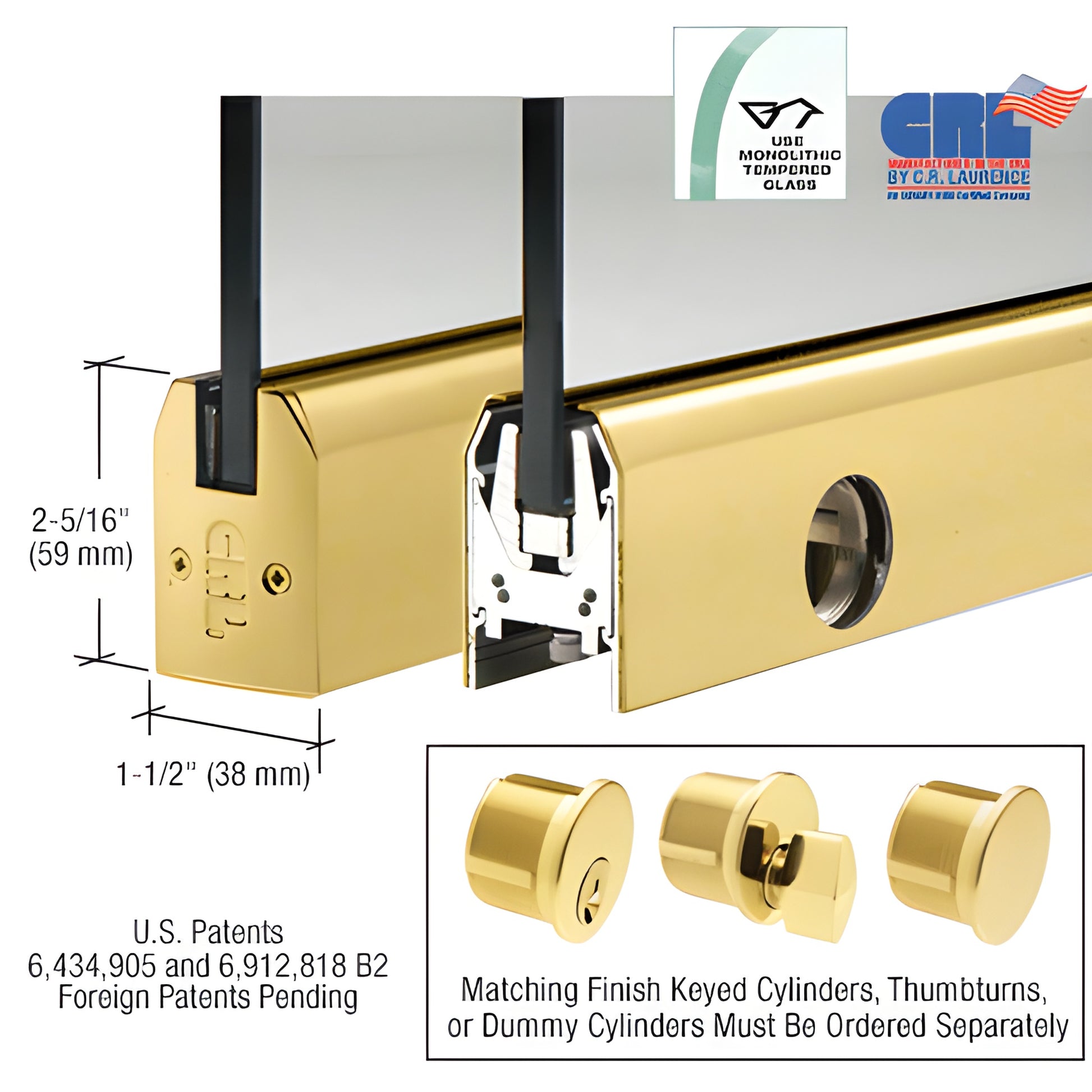

Polished Brass Slim Tapered Door Patch Rail w/ Lock 3/8" Glass 8"

• 8" (203 mm) Length for 3/8" (10 mm) Glass
• Use Monolithic Tempered Glass
• Patented Wedge-Lock® Glass Securing System
• Low Profile Rails are Only 2-5/16" (59 mm) Tall
• Available in Several Stock Architectural Finishes - Custom Finishes Available
• Available Without Locks Only
• Matching Sidelite Rails Available

SKU: DR2TPB38PL

Our CRL Low Profile Door Rail is a compact, ready-to-install door rail designed for frameless glass doors and shower doors. Measuring only 2-5/16" (59 mm) tall by 1-1/2" (38 mm) wide, this low profile door rail for 3/8" (10 mm) glass incorporates CRL’s patented Wedge-Lock® Glass Securing System (U.S. Patents 6,434,905; 6,912,818 B2; Canadian Patent 2,419,706; European Patent EP 1 404 939 B1). Rails include End Caps, installation instructions, and adjustment wrenches.

NOTE: Actual Product Height: 2-5/16" (59 mm)

The Wedge-Lock® system delivers fast, secure glass attachment—experienced installers can prepare a door in under ten minutes—making this an ideal low profile glass door rail for commercial and residential applications. Rails ship completely fabricated with the adjustable door alignment slide pre-assembled. After mounting the rail, simply attach your door arm or pivot (not included) to the adjustable slide. The Adjustable Door Alignment System (standard on top and bottom rails) allows ±1/8" (3 mm) adjustment toward or away from the jamb without door removal.

To adjust after installation, remove the End Cap to access three socket-head cap bolts: the center bolt secures the slide; the two outer bolts adjust the slide ±1/8" (3 mm). The low-profile slide supports pivots with slotted grooves and can be fabricated for vertically out-of-square openings.

Key differentiators:

• Fast installation with patented Wedge-Lock® system — ideal for time-sensitive commercial installs
• Rigid single-component housing that resists shift and maintains adjustment over time
• Internal components remain installed during rail mounting — no pre-removal required
• Glass securing pads engineered for longevity in extreme environments
• Available models accept 3/8" to 3/4" (10–19 mm) glass

Finish & customization: Available in several standard architectural finishes; custom finishes and widths quoted on request. Matching sidelite rails
