Polished Brass Low Profile Door Patch Rail 8in, 3/8in Glass No Lock

• 8" (203 mm) Length for 3/8" (10 mm) Glass
• Use Monolithic Tempered Glass
• Patented Wedge-Lock® Glass Securing System
• Low Profile Rails are Only 2-5/16" (59 mm) Tall
• Available in Several Stock Architectural Finishes — Custom Finishes Available
• Available Without Locks
• Matching Sidelite Rails Available

SKU: DR2TPB38P

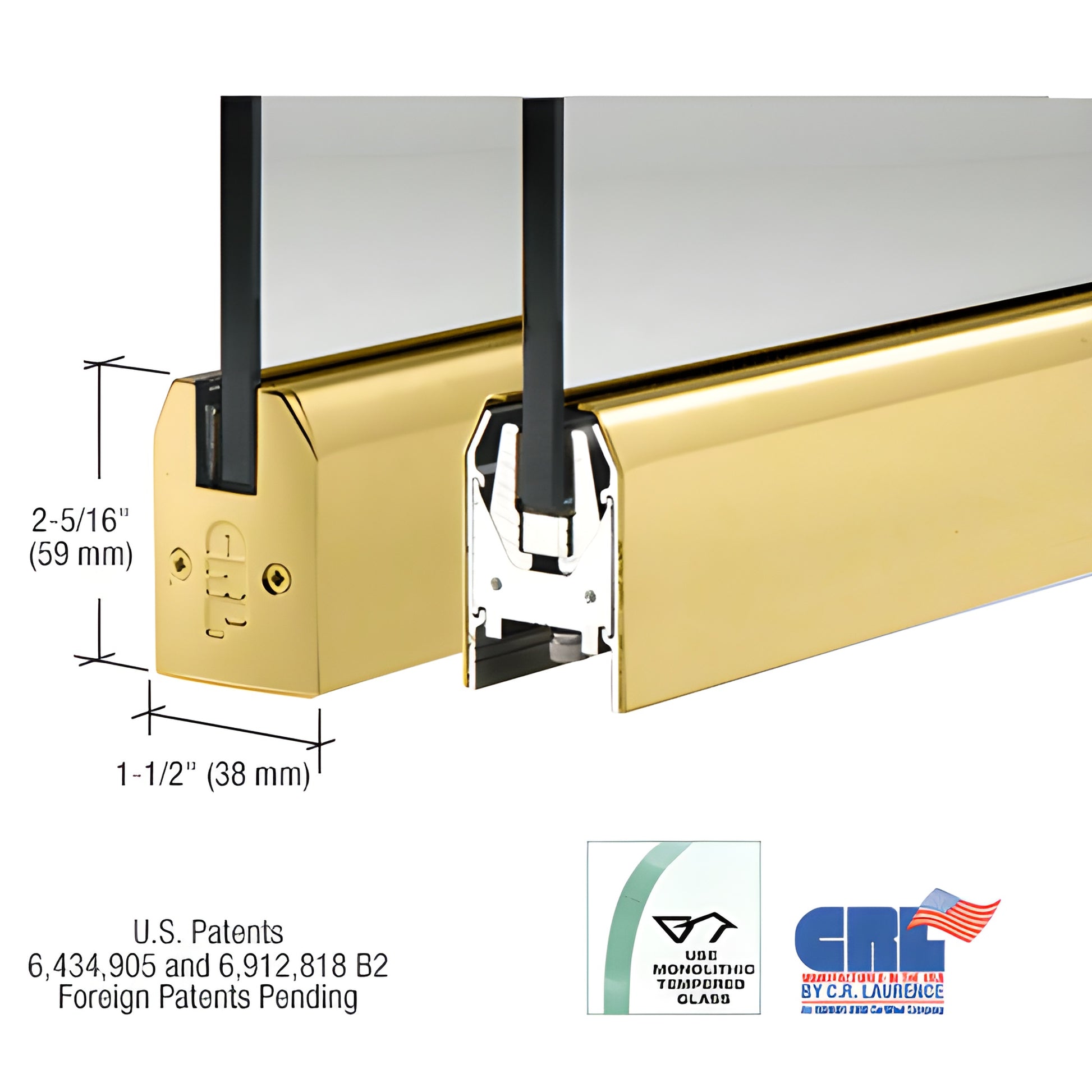

Our CRL Low Profile Door Rail is a compact, ready-to-install glass door rail designed for 3/8" (10 mm) monolithic tempered glass. The rail measures 2-5/16" (59 mm) high by 1-1/2" (38 mm) wide and features the patented Wedge-Lock® Glass Securing System (U.S. Patents 6,434,905 & 6,912,818 B2; Canadian Patent 2,419,706; European Patent EP 1 404 939 B1). Rails come complete with End Caps, installation instructions, and adjustment wrenches.

NOTE: Actual Product Height: 2-5/16" (59 mm)

The Wedge-Lock® system provides a fast, secure attachment to the glass—offering one of the quickest installation times in the frameless door rail category. Experienced installers can prepare a door for installation in less than ten minutes. CRL Wedge-Lock® Door Rails ship fully fabricated with End Caps installed; after rail installation, simply attach the door arm or pivot (not included) to the pre-assembled adjustable door alignment slide.

The built-in Adjustable Door Alignment System allows ±1/8" (±3 mm) adjustment toward or away from the jamb without removing the door. This adjustability is standard on both top and bottom rails. To access adjustments after installation, remove the End Cap to reveal three socket head cap bolts: the center bolt secures the slide, and the two outer bolts provide the ±1/8" (3 mm) fine adjustment. The low-profile adjustable slide enables pivot placement other than the American Standard setback of 2-3/4" (69.8 mm), allowing fabrication for vertically out-of-square openings.

Other product differentiators:

• Models accept 3/8" to 3/4" (10 to 19 mm) glass (see model selection)
• Rigid single-component housing that resists shifting and long-term adjustment loss
• Internal components remain in place—no disassembly required before installation
• Durable glass-securing pads engineered for longevity in extreme environments
• Built-in Jamb Alignment Block (arms and pivots ordered separately)

CRL Wedge-Lock® Door Rails are available in several standard architectural finishes; custom finishes and widths can be quoted on request. Rail specifications, templates, and hardware packages are available from CRL Technical Sales via
