Polished Stainless Square DRS Door Patch Rail with Lock 3/8" Glass 8"

• 8" (203 mm) length for 3/8" (10 mm) glass
• Use monolithic tempered glass
• Patented Wedge-Lock® Glass Securing System
• Low profile rails are only 2-5/16" (59 mm) tall
• Available in several stock architectural finishes — custom finishes available
• Available without locks
• Matching sidelite rails available

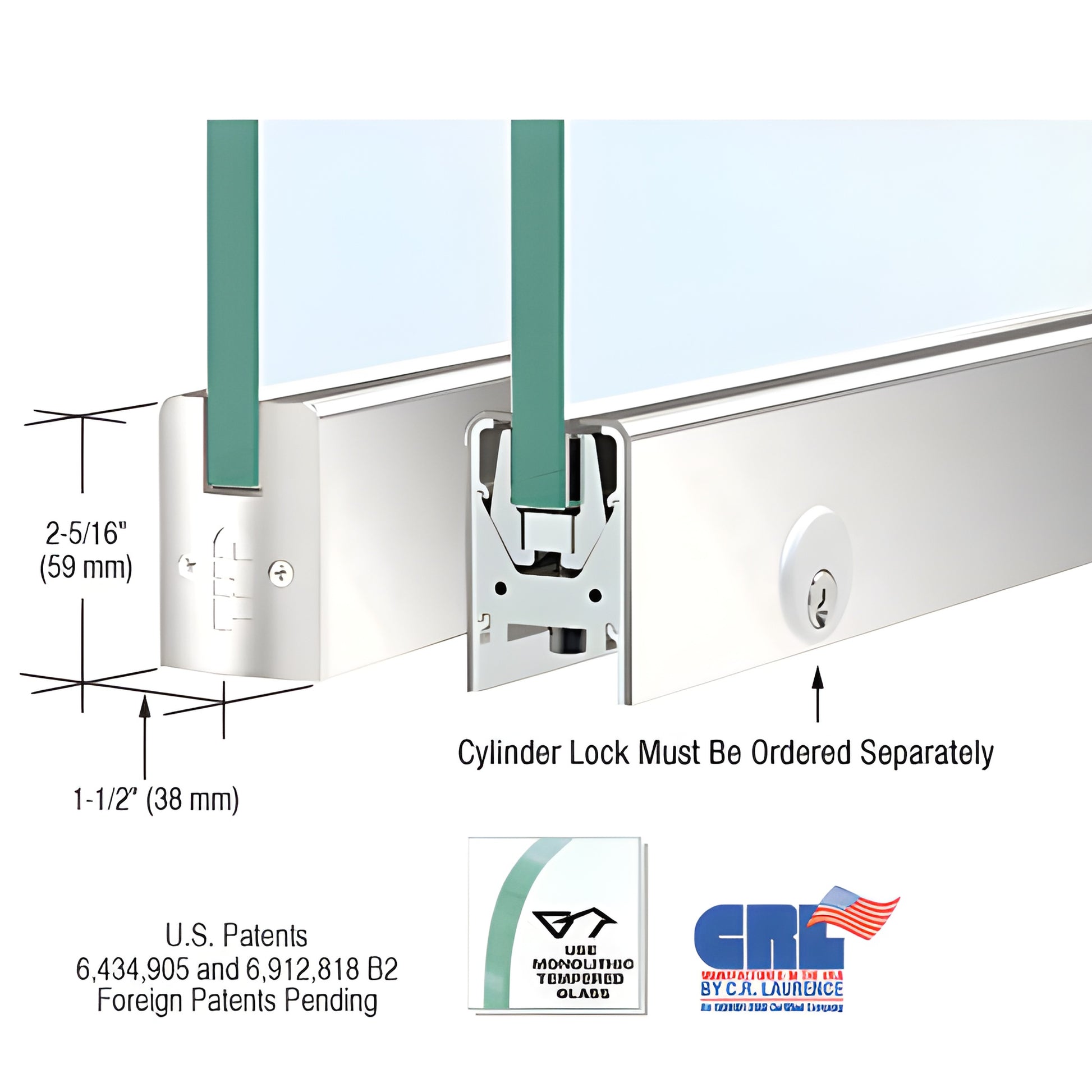

Our CRL Low Profile Door Rail (SKU: DR2SPS38PL) measures 2-5/16" (59 mm) tall by 1-1/2" (38 mm) wide and features the patented Wedge-Lock® Glass Securing System (U.S. Patents 6,434,905 and 6,912,818 B2, Canadian Patent 2,419,706, European Patent EP 1 404 939 B1). These low profile glass door rails are shipped complete with end caps, installation instructions, and adjustment wrenches for fast, ready-to-install performance.

NOTE: Actual product height: 2-5/16" (59 mm)

The Wedge-Lock® system delivers a secure attachment and the fastest installation time of any door rail system CRL offers — experienced installers can prepare a door in under ten minutes. Rails arrive completely fabricated with end caps installed; after installation, simply attach the door arm or pivot (not included) to the adjustable door alignment slide already assembled in the rail.

The Adjustable Door Alignment System allows ±1/8" (3 mm) adjustment toward or away from the jamb without removing the door. This feature is standard on both top and bottom rails. To adjust after installation, remove the end cap to access three socket head cap bolts: the center bolt locks the slide; the two outer bolts adjust the slide in or out. The low-profile slide supports pivots with slotted grooves and can be fabricated for vertically out-of-square openings.

Why choose Wedge-Lock® Door Rails:

• Models accept 3/8" to 3/4" (10–19 mm) glass
• Rigid single-component housing resists shifting and stays in adjustment
• Internal components do not require removal for installation
• Durable glass securing pads designed for longevity in extreme environments

NOTE: All Wedge-Lock® Door Rails include a built-in jamb alignment block. Arms and pivots must be ordered separately to meet job requirements.

CRL Wedge-Lock® Door Rails are available in several standard finishes and can be quoted in custom finishes and widths. Rail specifications, templates, and hardware packages are available from CRL Technical Sales via e-mail.

ORDERING INFORMATION:
• All door rails are supplied with the standard Kwik-Adjust™ Pivot Alignment System. Closer arms and floor or overhead pivots must be ordered separately.
• Models with locks
