Product Details
- 24"H (610 mm) Posts Stocked in Los Angeles
- U-Channel for 3/8"(10 mm) Glass
- Six Standard Configurations End, Center, Corner, 135 deg., 3-Way, and 4-Way
- Brushed #4 Finish
- Ready to Install

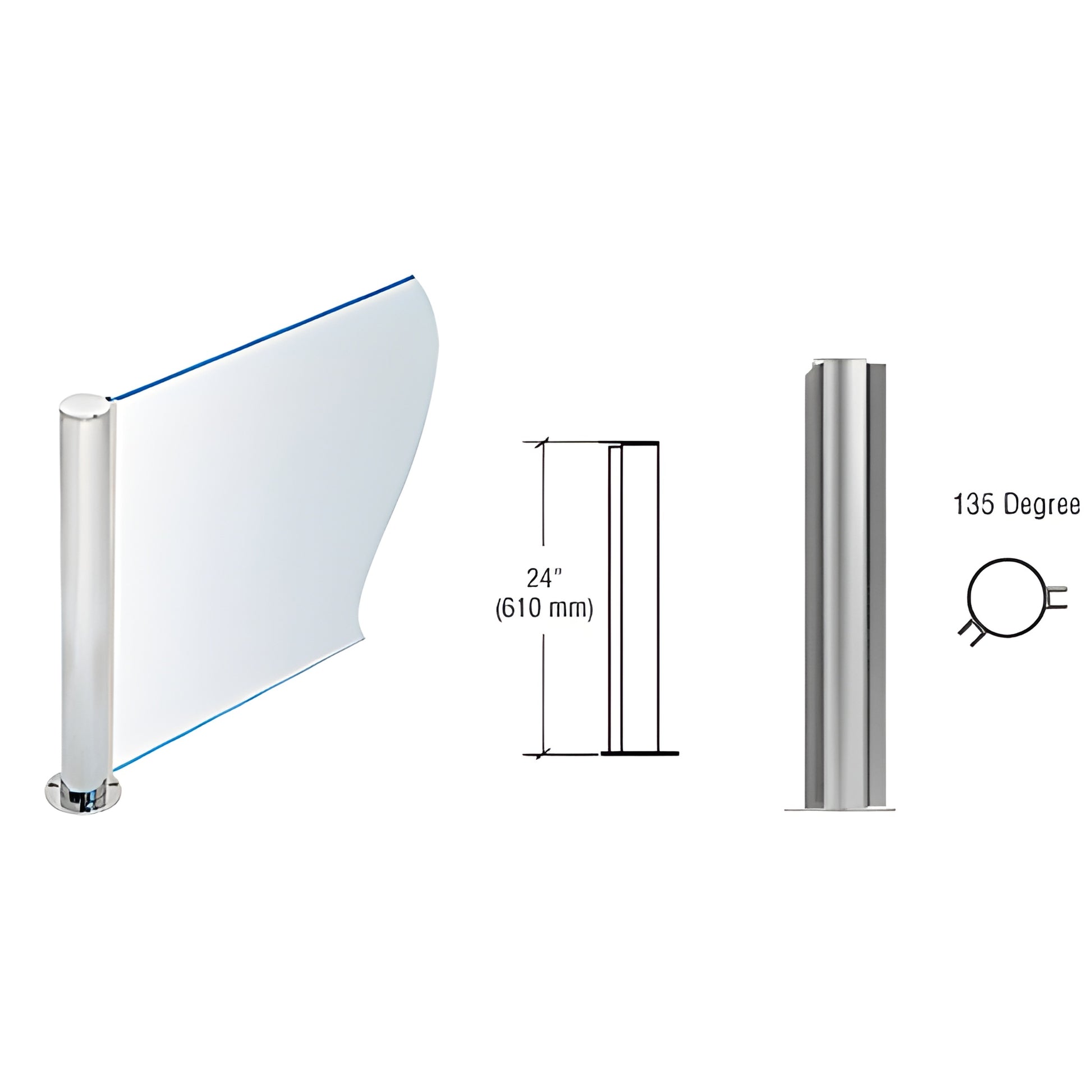

CRL Elegant Series Glass Partition Posts for 3/8" (10 mm) glass are constructed with 1-1/2" (38 mm) Diameter Stainless Steel Tubing. Glass can be attached to the full length u-channels with Cat. No. 33SC Clear Silicone, which meets CRL Standards.
Model PP08 Posts are available off the shelf in various stock sizes and two finishes. You can install them in wood, marble, or vitreous counter tops using the welded flange base and the supplied screws. Each kit contains one Post, one Welded Flange Base, one Top Cap, Glazing U-channel and Installation Screws. Glass is not provided.
We can fabricate custom posts for non-stock sizes and configurations. For do-it-yourselfers we offer stock component parts ready-to-ship so you can fabricate complete units in your own shop.
Elegant Series Posts measure 1-1/2" (38 mm) in diameter; Welded base plates measure 3" (76.2 mm) in diameter. Glazing u-channel is available for 1/4" (6 mm) glass for all stock sizes. Glazing u-channel for 3/8" (10 mm) glass is available for 24" (610 mm) high stock sizes, or on special order for other sizes.
Product Warning:
For interior use only. Maximum recommended span for 3/8"(10 mm) glass is 56" wide. Use tempered glass only.
Stainless Steel Advisory:
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
