CRL Matte Black 4" Custom Tapered Sidelite Rail for 1/2" Glass Door

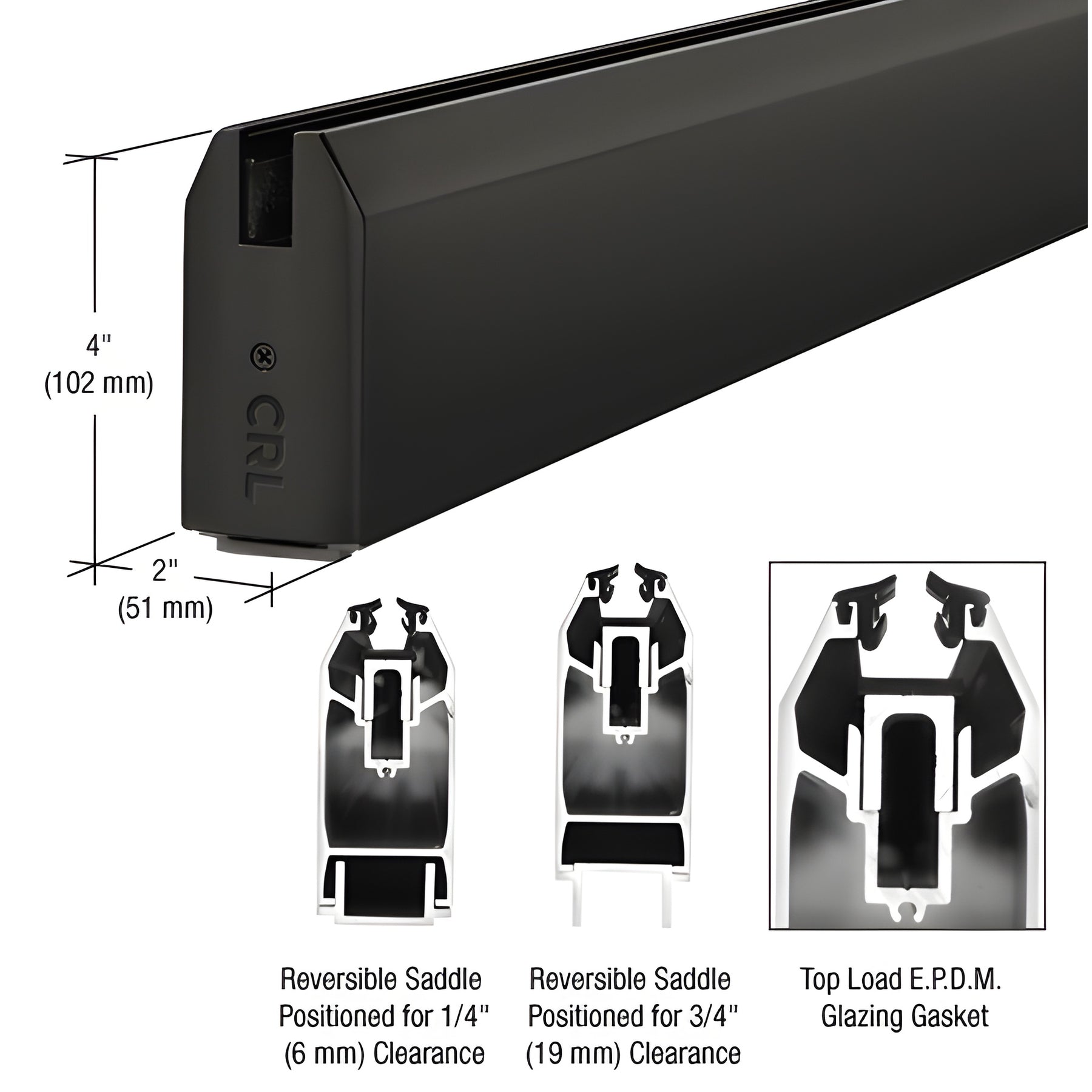

• Reversible extruded saddle fits 1/4" or 3/4" (6 or 19 mm) door clearances
• Provides an even sightline with matching door rails
• Vinyl supplied to glaze 1/2" (12 mm) glass; GG38 vinyl for 3/8" (10 mm) glass sold separately
• Ready-to-ship models from CRL inventory for fast delivery
• Designed for monolithic tempered glass installations
• Matching door rails and square sidelite rails available for a coordinated storefront or office system

The CRL 4" (102 mm) Tapered Sidelite Rail (SKU: SR4TMBL12CL) is a storefront and office glazing solution used to secure fixed glass panels while matching our door rail sightline. Ideal for 1/2" (12 mm) monolithic tempered glass, the profile accepts glass with a simple "lift-and-drop" installation using our Aluminum Neoprene Setting Blocks. Glass is locked in with a top-load EPDM roll-in glazing gasket to eliminate messy silicone sealant and speed installation—key benefits for commercial storefront and interior sidelites.

Available features and options:

• Lengths: standard 120" (3.05 m); selected finishes also in 240" (6.10 m); custom lengths and finishes available
• Finishes: multiple finishes to match door rails and hardware
• Installation retention: nominal 9/16" (14 mm) glass retention top and bottom when used with UCSB4 setting blocks
• Accessories: Roll-In EPDM Gaskets, matching finish End Caps, and UCSB4 setting blocks sold separately

Ordering information
• This model ships with vinyl for 1/2" (12 mm) glass. For 3/8" (10 mm) glazing, order GG38 Series vinyl separately.
• SREC4T Series end caps and Cat. No. UCSB4 setting blocks are not included and must be ordered separately.
• Ready-to-ship SKUs available from CRL inventory for expedited commercial storefront and office glazing projects.

Product warning
Shown with end caps which are sold separately.

Order SR4TMBL12CL today for a coordinated 4" tapered sidelite
