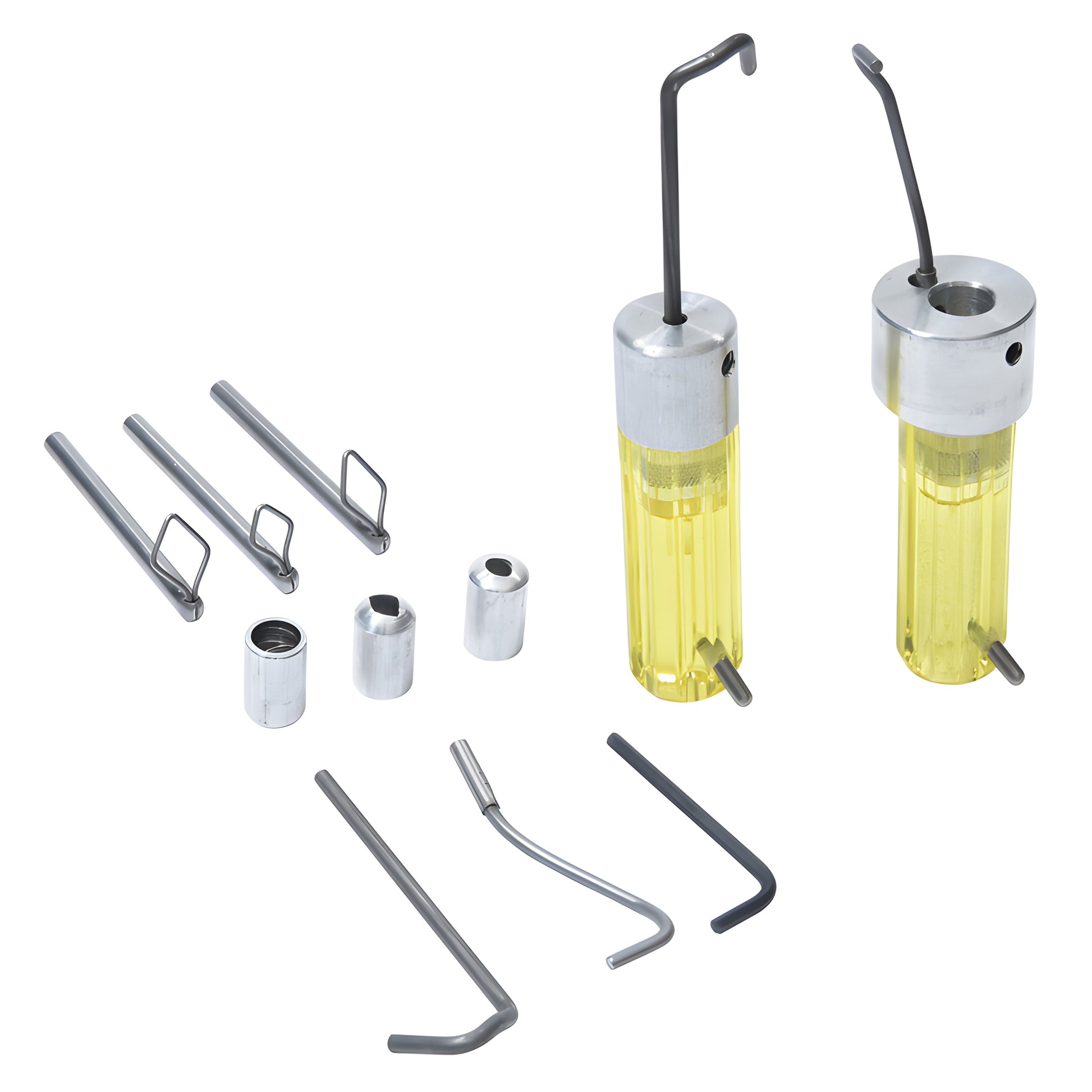

Installation Kit for Rear Window Glass in Cabs, Coaches, Trailers, and Boats

• Designed For Installing Rear Window Glass in Cabs, Coaches, Trailers, and Boats
• Sold as a Complete Kit and as Individual Parts

There are two simple steps to install rear window glass in vehicular cabs, coaches, trailers and boats.

1. Insert one of the spreader hooks into the solid channel spreader handle. Tighten set screw with allen wrench. Use the channel spreader to open the glass channel of the weatherstrip, allowing the glass to seat into position.

2. Insert a collet into the aluminum front of the hollow insert handle and tighten set screw. Attach inserter eye, tighten set screw, feed the locking strip through the handle, the collet and the eye inserter.

(1) 2011022 Hollow Inserter Handle

(1) 2011023 Channel Spreader Handle

(1) 2011024 7/16" Eye Inserter

(1) 2011025 7/16" Collet

(1) 2011026 3/8" Eye Inserter

(1) 2011027 3/8" Collet

(1) 2011028 5/16" Eye Inserter

(1) 2011029 5/16" Collet

(1) 2011030 Large Channel Spreader Hook

(1) 2011031 Small Channel Spreader Hook

(1) 2011034 Allen Wrench
