Rixson® Heavy-Duty Center-Hung Top Door Pivot, Polished Brass Cover
Rixson® Heavy-Duty Center-Hung Top Door Pivot, Polished Brass Cover
Regular price
$937.28 CAD
Regular price
Sale price
$937.28 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# H340PB
Shipping Weight: 1.54 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 1.54 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Bottom Door Rail Depth
3/4-1 3/4
Brand
Rixson
Finish/Color
Polished Brass
Handing
Non Handed
Material
Aluminum
Pin Diameter
1/2-11/16
Pivot Top
Yes
Pivot Type
Center Hung
Recommended Door Type
Aluminum, Wood, Hollow Metal
Overview
- Heavy-Duty 11/16" (17 mm) Diameter Pivot Pin with Needle Bearing
- Finished Cover Plates, Wood, and Machine Screws are Included
- Pivots are Non-Handed

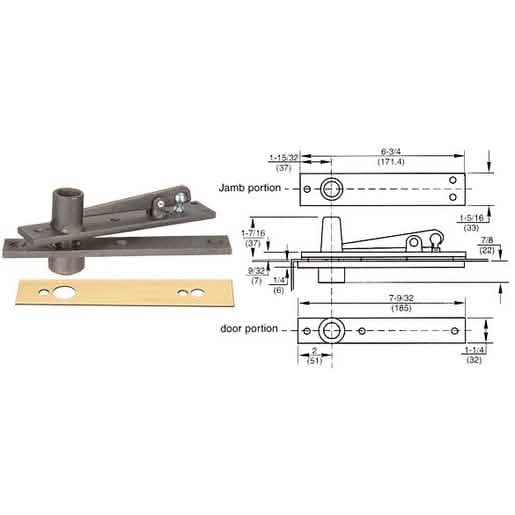

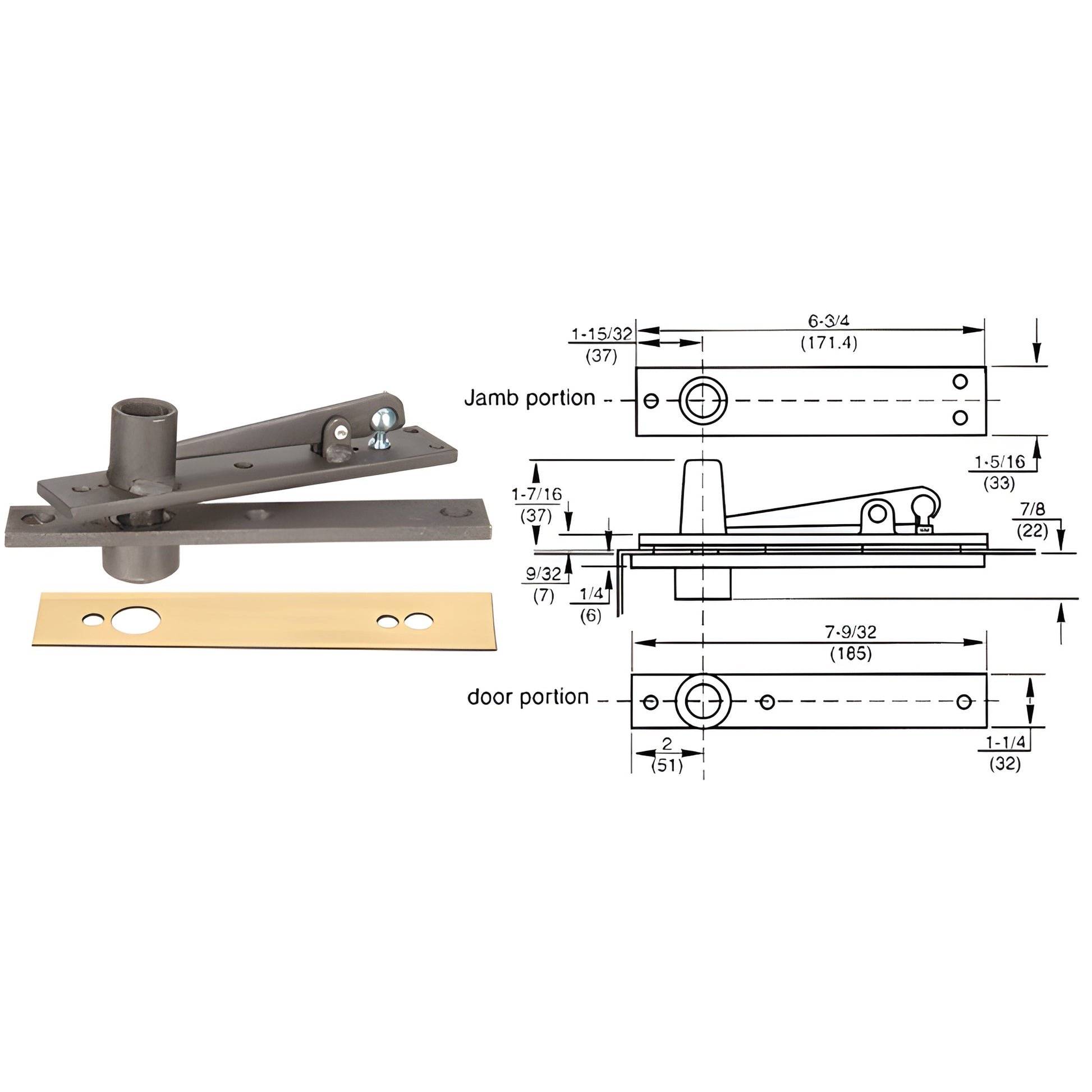

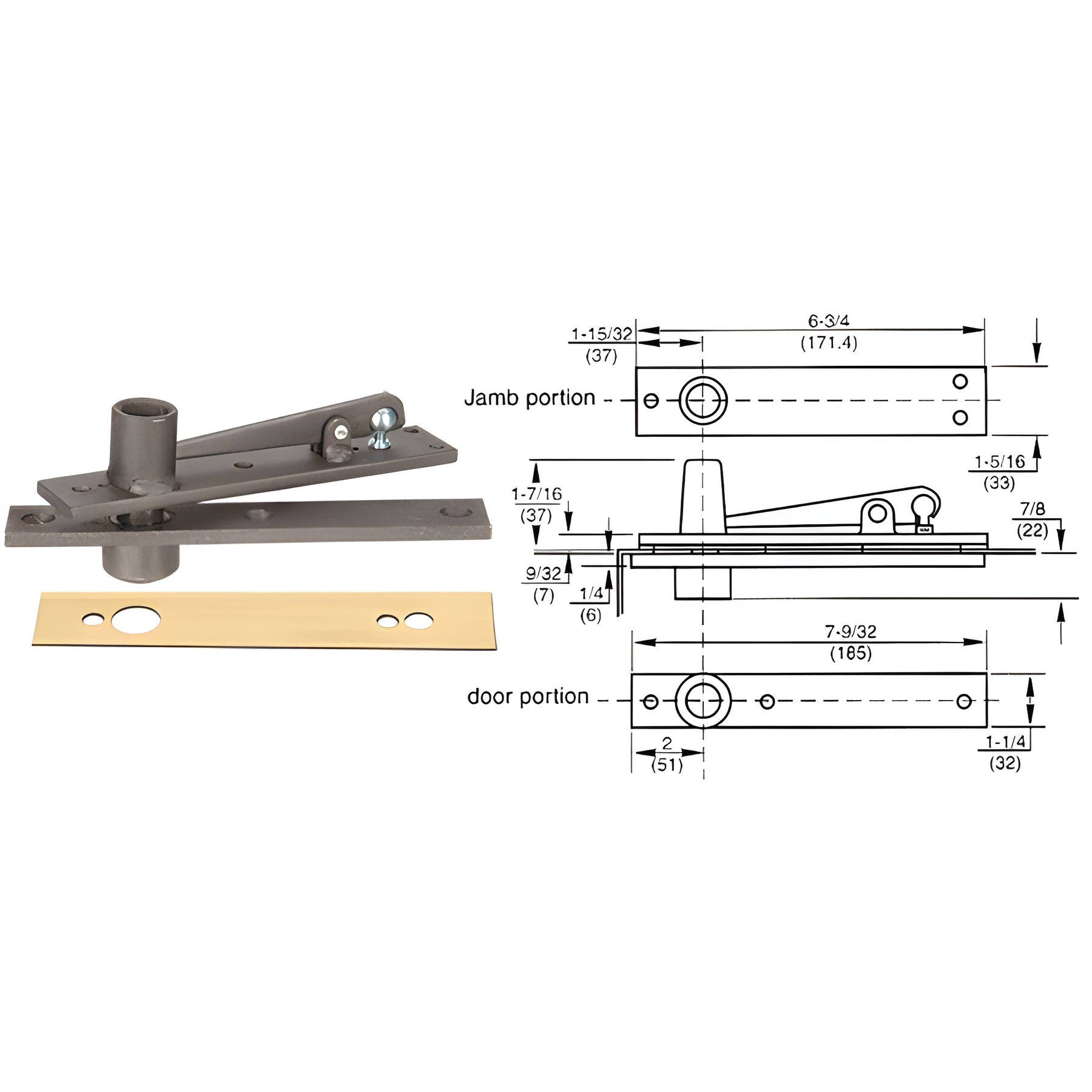

This Rixson® Heavy-Duty Center-Hung Top Pivot (SKU: H340PB) is a walking-beam style center-hung top pivot engineered for commercial and high-traffic doors. It features a heavy-duty 11/16" (17 mm) pivot pin with needle bearing for smooth operation and reduced wear, plus a supplied door receiver that provides 3/4" (19 mm) deep engagement. The pivot is fully mortised and non-handed for easy installation and universal fit. Finished cover plate, wood screws, and machine screws are included for a complete mounting solution.
Brass Finish Advisory:
Although durable, brass is prone to oxidation and can develop a tarnished appearance over time regardless of initial packaging or storage. For care and maintenance details, view the Brass Finish Disclaimer in the Technical References section.
Key features: Rixson H340PB center-hung top pivot, 11/16" needle-bearing pin, 3/4" receiver engagement, mortised non-handed design, includes cover plate and mounting screws — ideal for commercial door hardware applications. Order now to secure durable, low-maintenance door pivot hardware.
