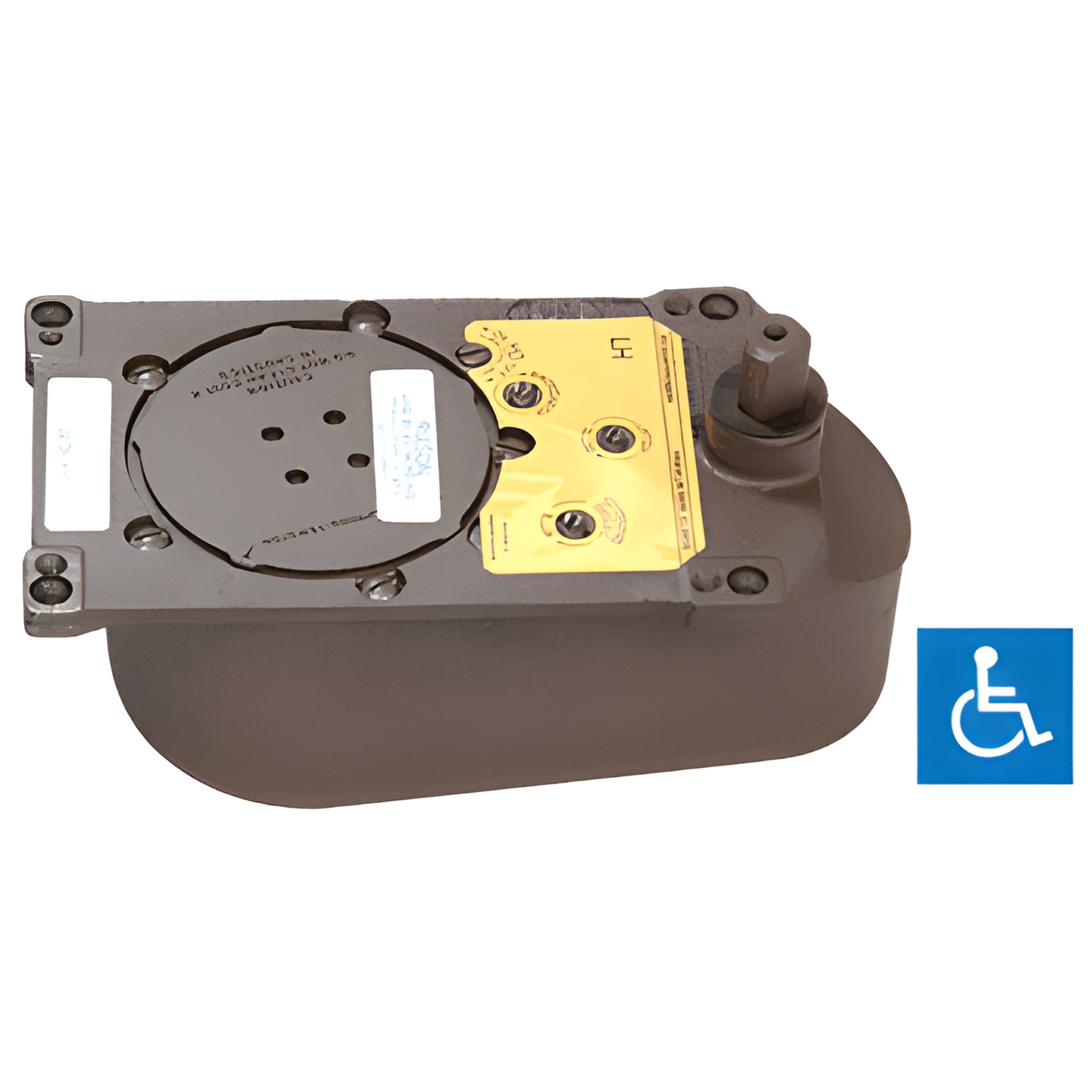

Rixson PH27 Floor Closer Body Left Hand 8.5 lb Offset 90° Hold-Open

Rixson PH27 Floor Closer Body Left Hand 8.5 lb Offset 90° Hold-Open

$1,932.81 CAD
$1,932.81 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# PH2790SH0LH85
Shipping Weight: 20.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Adjustable Hydraulic Backcheck
Yes
Americans with Disabilities Act
Yes
Body Height
4-1/16 in. (103.2 mm)
Body Length
11-1/8 in. (282.6 mm)
Body Width
5-7/8 in. (149.2 mm)
Brand
Rixson
Built In Positive Dead Stop
Yes
Certification
ANSI 117.1, ANSI 156.4 Grade 1
Closer Body Only
Yes
Closer Type
Floor Closer
Door Height May Require Intermediate Pivots
Yes
Door Opening
90 °
Handing
Left Hand
Independent Closing and Latching Valves
Yes
Interior Or Exterior Doors
Yes
Maximum Door Width - Exterior
48 in. (1219.2 mm)
Maximum Door Width - Interior
48 in. (1219.2 mm)
Maximum Weight Center Hung
450 lbs. (204.1 kg)
Non Stocked Parts and Acessories Special Order
Yes
Recommended Door Type
Aluminum, Hollow Metal
Selective Hold Open
Yes
Series
27
Similar
BTS75VBF90HO, BTS80BF, J993HOD, J994HOD
Spring Size
8.5
UL Listed
Yes

Overview

  • For exterior or interior doors up to 450 lbs. (204 kg) and 48" (1.22 m) wide
  • Selective on/off hold open
  • Built-in positive dead stop

This Rixson® Model 27 Offset Floor Mounted Door Closer (SKU: PH2790SH0LH85) is a heavy-duty offset floor closer engineered for high-traffic exterior and interior doors. The bottom arm connects directly to the floor closer spindle, transferring door weight to the closer and delivering superior closing efficiency compared to surface or overhead concealed closers. It supports doors up to 450 lbs. (204 kg) and 48" (1.22 m) wide.

Standard features include selective on/off hold open, a built-in positive dead stop, and separate independent valves for closing, latching and backcheck adjustments—ideal for commercial, heavy-duty, and ADA-related door control applications.

NOTE: CRL is a stocking Rixson® Specialty Door Control Distributor. For help specifying Rixson® products, contact our Technical Sales Department.

ADA Compliance: Although A.D.A. Series door closers meet A.D.A. specified opening force criteria, site conditions and door size may require additional spring power; ADA-compliant setting does not guarantee adequate closing force in every installation.

Optional accessories that may be needed:
253000 Floor Closer Cement Case • 274750LH Closer Cover
252050LH Bottom Offset Arm • R180 Top Offset Pivot • M19LH Intermediate Offset Pivots.

Additional finishes and accessories are available upon request for quotation.

Product Warning:

Closers set to comply with A.D.A. specified opening forces might not provide adequate spring power to control and close the door due to varying site conditions and door size.

Most shipping weights are approximate and have not been verified. If exact weight is required to determine shipping costs, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors may vary depending on your monitor settings.



Contact our Technical Sales team to confirm specifications or request a quote for the
