Rixson PH28 Floor Closer 8.5 lb Center-Hung 105° Selective Hold Left

• For exterior or interior doors up to 350 lbs (158 kg) and 48" (1.22 m) wide
• Selective on/off hold-open
• Built-in positive dead stop

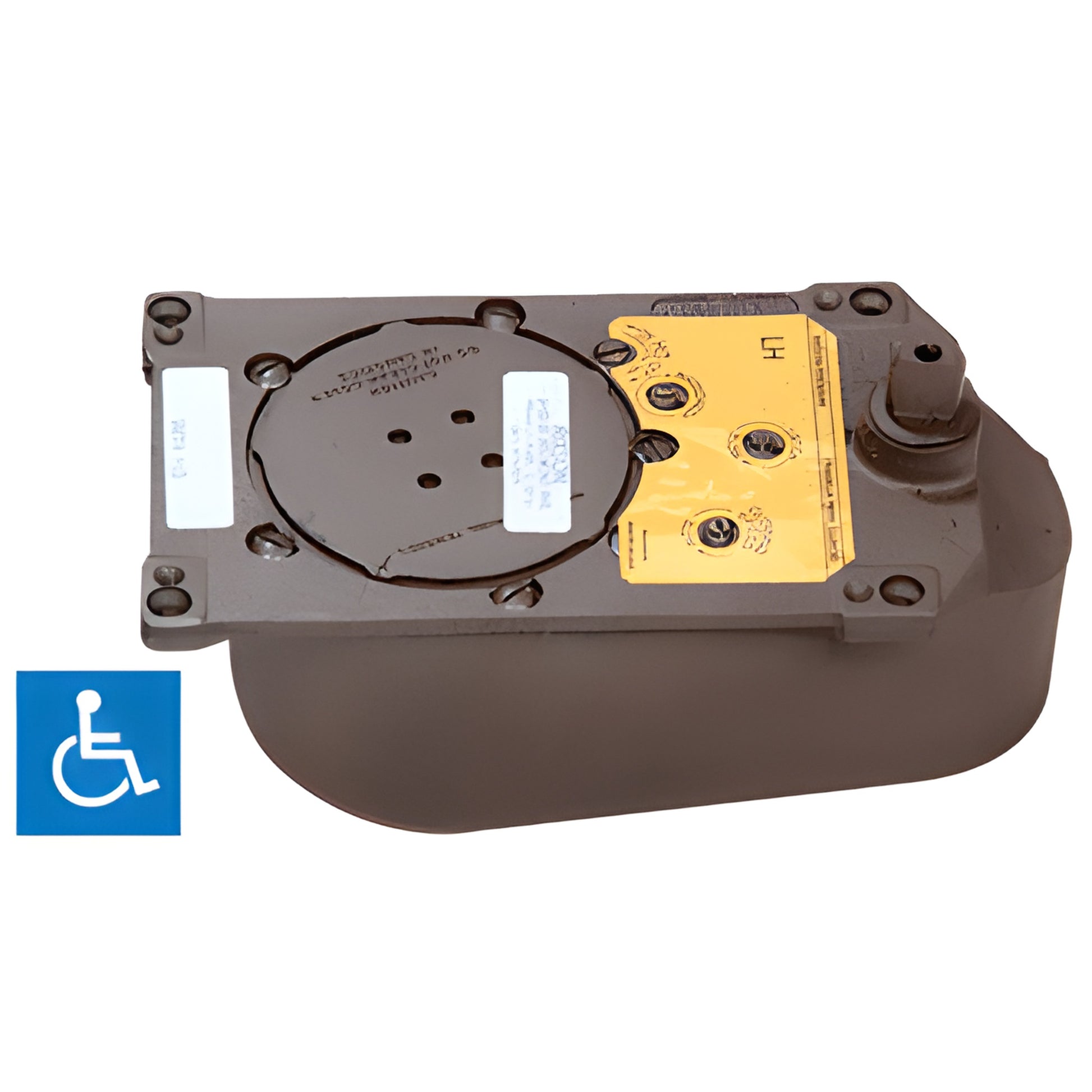

This Rixson® Model 28 Center-Hung Floor Mounted Door Closer (SKU: PH28105SH0LH85) is a heavy-duty center-hung floor closer engineered for maximum closing efficiency on high-traffic or heavy doors. The door weight is supported by the bottom arm directly connected to the floor closer spindle, delivering greater closing force and reliability than surface or overhead concealed closers. Ideal long-tail use cases: center-hung floor mounted door closer for heavy exterior doors, ADA-compatible floor closer for 48" doors, and commercial center-hung closer for 350 lb doors.

Standard features include selective on/off hold-open, built-in positive dead stop, and separate independent valves for closing, latching and backcheck adjustments.

NOTE: While A.D.A. Series door closers meet A.D.A. specified opening force limits, they may not provide sufficient spring power to control and close some doors depending on site conditions and door size.

NOTE: CRL is a stocking Rixson® Specialty Door Control Distributor. For Rixson® products, contact the CRL Technical Sales Department for assistance.

Optional accessories that may be needed:
253000 Floor Closer Cement Case 284720LH Closer Cover 282026 Bottom Center-Hung Arm 340 Top Center-Hung Pivot

Additional finishes and accessories are available upon request—contact us for a quotation.


Product Warning:

Closers adjusted to meet A.D.A. opening forces might not provide adequate spring power to control and close the door for all installations due to variable site conditions and door size.
