Rixson® Heavy-Duty Long Top Pivot Pin for Center-Hung Doors, Dark Bronze
Rixson® Heavy-Duty Long Top Pivot Pin for Center-Hung Doors, Dark Bronze
Regular price
$1,520.96 CAD
Regular price
Sale price
$1,520.96 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# H345DU
Shipping Weight: 2.09 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 2.09 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Bottom Door Rail Depth
3/4-1 3/4
Brand
Rixson
Finish/Color
Dark Bronze
Handing
Non Handed
Material
Aluminum
Pin Diameter
1/2-11/16
Pivot Top
Yes
Pivot Type
Center Hung
Recommended Door Type
Aluminum, Wood, Hollow Metal
Overview
- 11/16" (17 mm) diameter heavy-duty, long 1-3/4" (44 mm) engagement pivot pin
- Non-handed center-hung top pivot for doors
- Finished cover plates included
- Available in four finishes

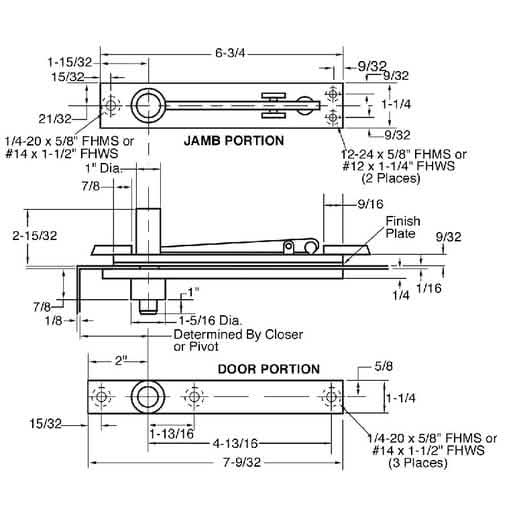

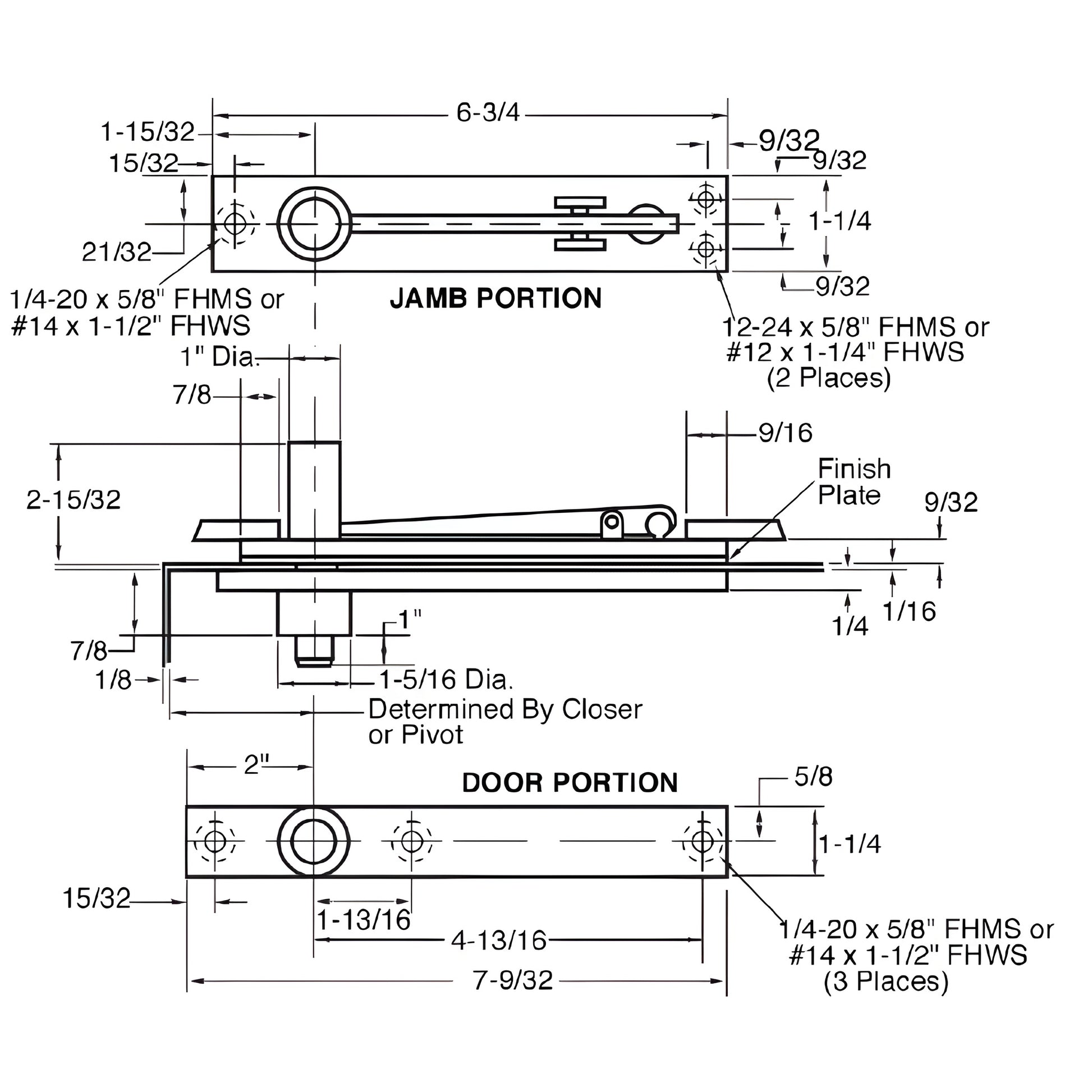

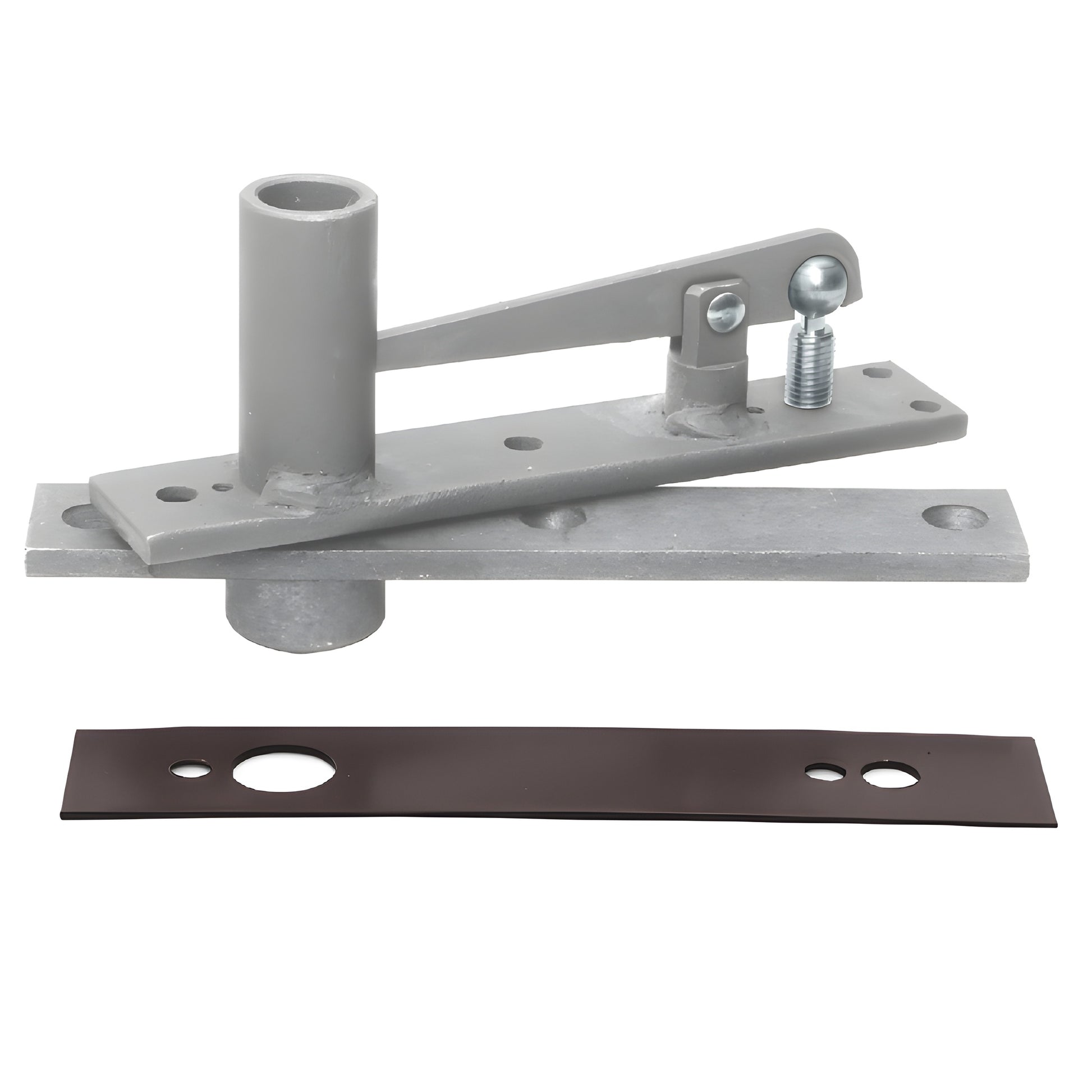

Rixson® Heavy-Duty Center-Hung Top Pivot (SKU: H345DU) is a walking-beam style top pivot with a 11/16" (17 mm) pivot pin and a needle-bearing door receiver that provides 1-3/4" (44 mm) engagement. The long engagement makes this pivot ideal for installations where building settling is a concern. Fully mortised and non-handed, the pivot ships with finished cover plates plus both wood and machine screws for common installations.
Differentiators: needle-bearing receiver for smooth operation, long 1-3/4" (44 mm) engagement for settling resistance, fully mortised non-handed design, includes cover plates and screws.
NOTE: Special header and door rail preparation is required. Consult our Technical Sales Department for assistance.
Order the H345DU heavy-duty center-hung top pivot today or contact us for technical assistance.
