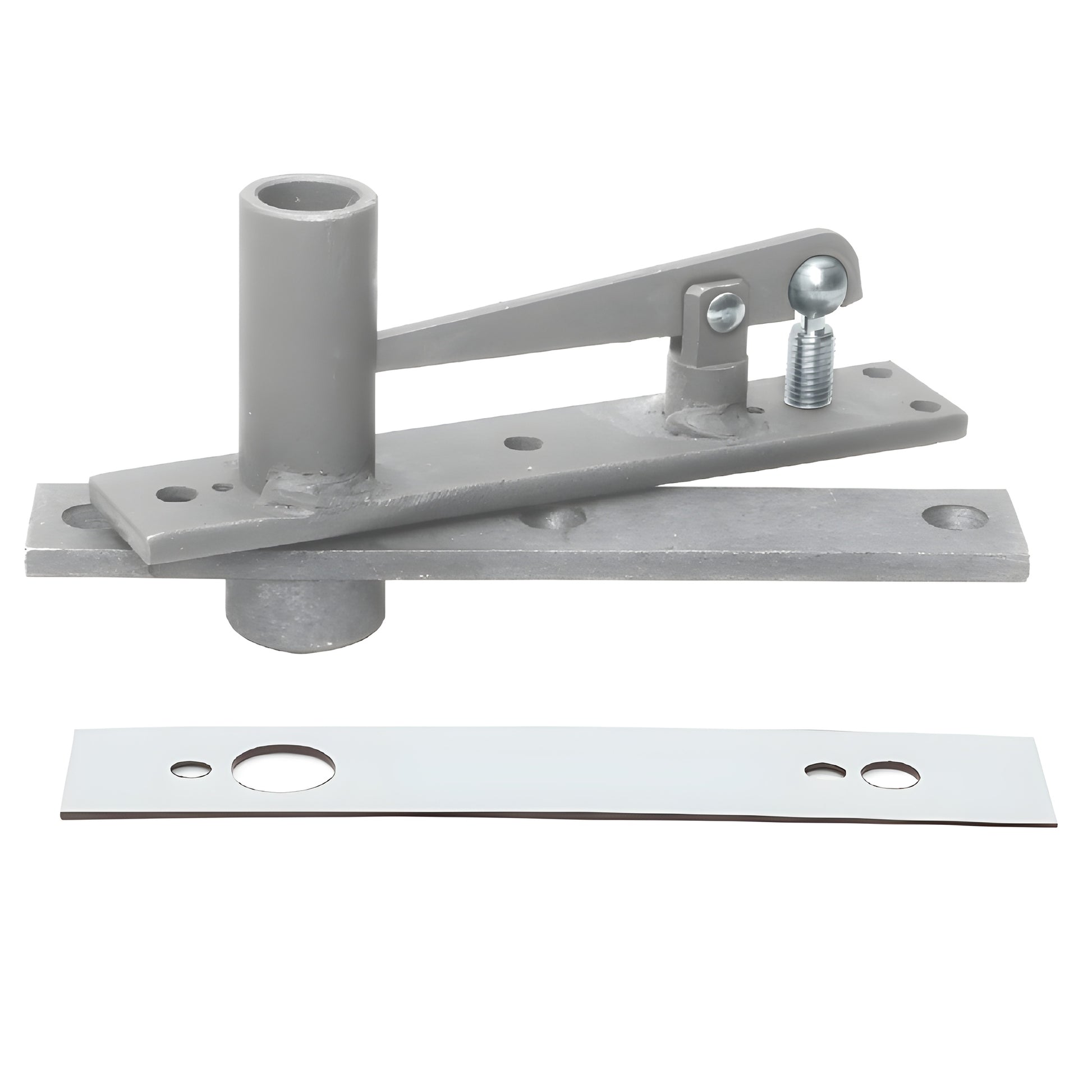

Rixson Heavy-Duty Center-Hung Long Pivot Pin Top Pivot, Satin Chrome
Rixson Heavy-Duty Center-Hung Long Pivot Pin Top Pivot, Satin Chrome
Regular price
$1,520.96 CAD
Regular price
Sale price
$1,520.96 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# H345SC
Shipping Weight: 2.12 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 2.12 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Bottom Door Rail Depth
3/4-1 3/4
Brand
Rixson
Finish/Color
Satin Chrome
Handing
Non Handed
Material
Aluminum
Pin Diameter
1/2-11/16
Pivot Top
Yes
Pivot Type
Center Hung
Recommended Door Type
Aluminum, Wood, Hollow Metal
Overview
- 11/16" (17 mm) diameter heavy-duty long pivot pin with 1-3/4" (44 mm) engagement
- Non-handed, fully mortised center-hung top pivot
- Includes finished cover plates, wood and machine screws for common installations
- Available in four finishes
This Rixson® Heavy-Duty Center-Hung Top Pivot (SKU: H345SC) is a walking-beam style pivot designed for heavy-duty commercial doors. The supplied door receiver uses a heavy-duty needle bearing and provides a deep 1-3/4" (44 mm) engagement, making it well-suited for installations where dramatic building settling may occur. Fully mortised and non-handed, this top pivot fits a wide range of door applications and includes cover plates and both wood and machine screws for flexible mounting options.
Differentiators:
- Needle-bearing receiver for smooth operation under heavy loads
- Long 1-3/4" engagement to accommodate building movement
- Non-handed design simplifies inventory and installation
NOTE: Special header and door rail preparation is required. Consult our Technical Sales Department for installation guidance.
Ordering: For pricing, finish availability, or installation support for the H345SC heavy-duty center-hung top pivot, contact CRL or your local distributor today.
