Rixson® PH27 8.5 lb Offset Floor Closer Body Only 105° Hold-Open Left
Rixson® PH27 8.5 lb Offset Floor Closer Body Only 105° Hold-Open Left
Regular price
$1,932.81 CAD
Regular price
Sale price
$1,932.81 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# PH27105SH0LH85
Shipping Weight: 19.185 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 19.185 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Adjustable Hydraulic Backcheck
Yes
Americans with Disabilities Act
Yes
Body Height
4-1/16 in. (103.2 mm)
Body Length
11-1/8 in. (282.6 mm)
Body Width
5-7/8 in. (149.2 mm)
Brand
Rixson
Built In Positive Dead Stop
Yes
Certification
ANSI 117.1, ANSI 156.4 Grade 1
Closer Body Only
Yes
Closer Type
Floor Closer
Door Height May Require Intermediate Pivots
Yes
Door Opening
105 °
Handing
Left Hand
Independent Closing and Latching Valves
Yes
Interior Or Exterior Doors
Yes
Maximum Door Width - Exterior
48 in. (1219.2 mm)
Maximum Door Width - Interior
48 in. (1219.2 mm)
Maximum Weight Center Hung
450 lbs. (204.1 kg)
Non Stocked Parts and Acessories Special Order
Yes
Recommended Door Type
Aluminum, Hollow Metal
Selective Hold Open
Yes
Series
27
Similar
BTS75VBF90HO, BTS80BF, J993HOD, J994HOD
Spring Size
8-1/2
UL Listed
Yes
Overview
- For exterior or interior doors weighing up to 450 lbs (204 kg) and 48" (1.22 m) wide
- Selective on/off hold-open
- Built-in positive dead stop

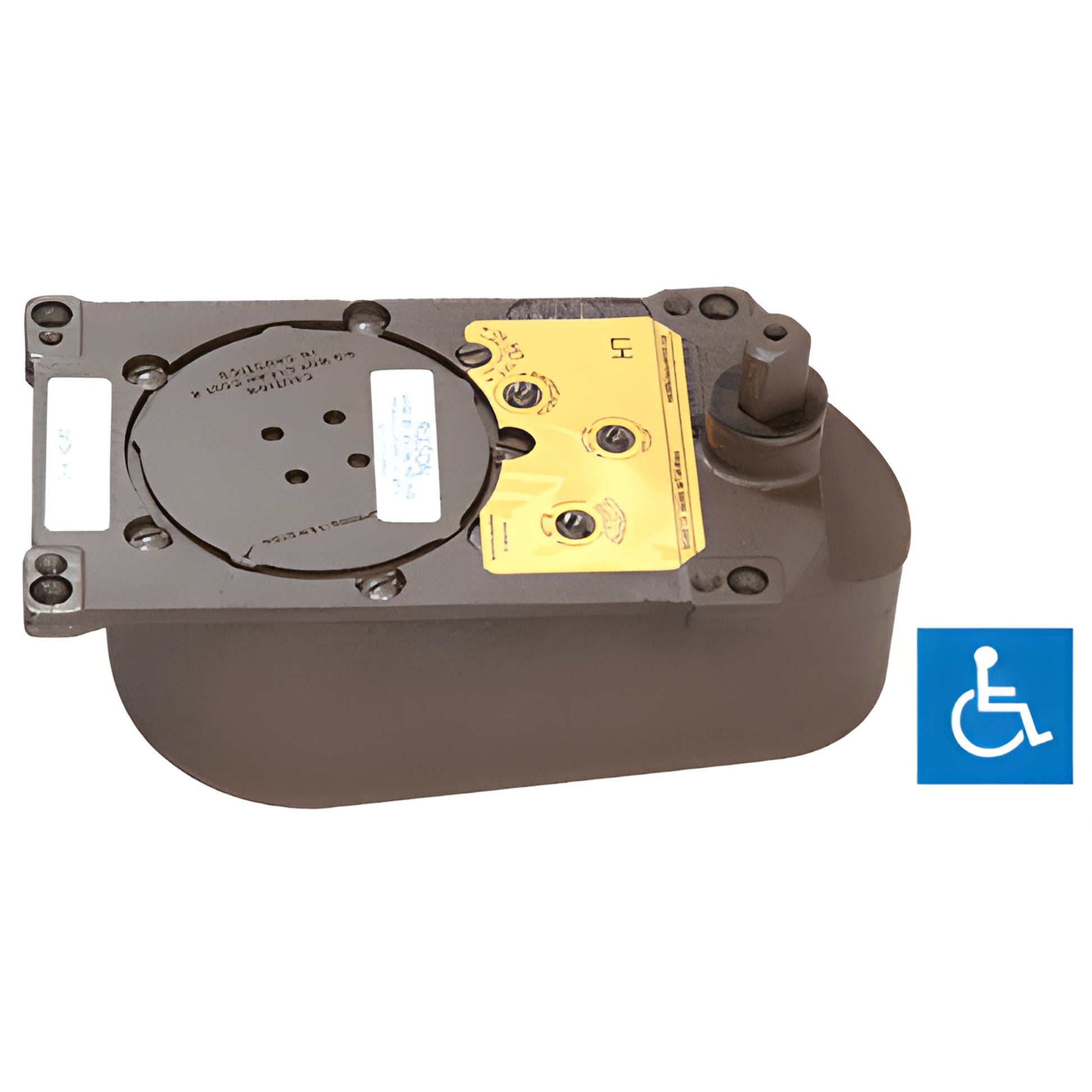

This Rixson® Model 27 Offset Floor Mounted Door Closer (SKU: PH27105SH0LH85) is a heavy-duty floor-mounted door closer engineered for superior closing efficiency. The bottom arm connects directly to the floor closer spindle so the door weight is supported at the floor, providing higher mechanical efficiency than surface-mounted or overhead concealed closers. Ideal as a floor-mounted closer for 450 lb doors and 48" wide openings, it controls heavy exterior and interior doors reliably.
Standard features include selective on/off hold-open, built-in positive dead stop, and separate independent valves for closing, latch and backcheck adjustments for precise control.
NOTE: CRL is a stocking Rixson® Specialty Door Control Distributor. For product availability, pricing, or technical assistance contact our Technical Sales Department.
ADA compliance note: Although A.D.A. series door closers meet A.D.A. specified opening-force limits, site conditions and door size may affect closing power and may prevent adequate spring return.
Optional accessories that may be needed:
253000 Floor Closer Cement Case 274750LH Closer Cover
252050LH Bottom Offset Arm R180 Top Offset Pivot M19LH Intermediate Offset Pivots.
Additional finishes and accessories are available upon request for quotation.
Product Warning:
Closers adjusted to comply with A.D.A. opening forces may not provide sufficient spring power to control and close the door under all site conditions or door sizes.
Contact our Technical Sales Department for pricing, availability, or help selecting the correct floor-mounted door closer for your application.
