Rixson PH27 Floor Closer, 8.5 lb Offset 105° Selective Hold-Open RH

Rixson PH27 Floor Closer, 8.5 lb Offset 105° Selective Hold-Open RH

$2,679.79 CAD
$2,679.79 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# PH27105SH0RH85
Shipping Weight: 19.185 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Adjustable Hydraulic Backcheck
Yes
Americans with Disabilities Act
Yes
Body Height
4-1/16 in. (103.2 mm)
Body Length
11-1/8 in. (282.6 mm)
Body Width
5-7/8 in. (149.2 mm)
Brand
Rixson
Built In Positive Dead Stop
Yes
Certification
ANSI 117.1,ANSI 156.4 Grade 1
Closer Body Only
Yes
Closer Type
Floor Closer
Door Height May Require Intermediate Pivots
Yes
Door Opening
105 °
Handing
Right Hand
Independent Closing and Latching Valves
Yes
Interior Or Exterior Doors
Yes
Maximum Door Width - Exterior
48 in. (1219.2 mm)
Maximum Door Width - Interior
48 in. (1219.2 mm)
Maximum Weight Center Hung
450 lbs. (204.1 kg)
Non Stocked Parts and Acessories Special Order
Yes
Recommended Door Type
Aluminum, Hollow Metal
Selective Hold Open
Yes
Series
27
Similar
BTS75VBF90HO, BTS80BF, J993HOD, J994HOD
Spring Size
8.5
UL Listed
Yes

Overview

  • For exterior or interior doors up to 450 lbs (204 kg) and 48" (1.22 m) wide
  • Selective on/off hold open
  • Built-in positive dead stop

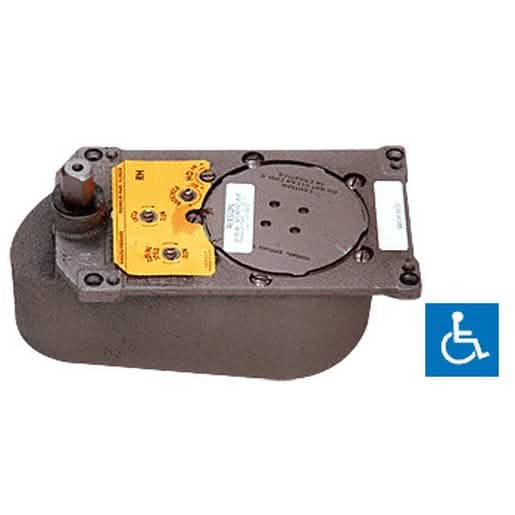

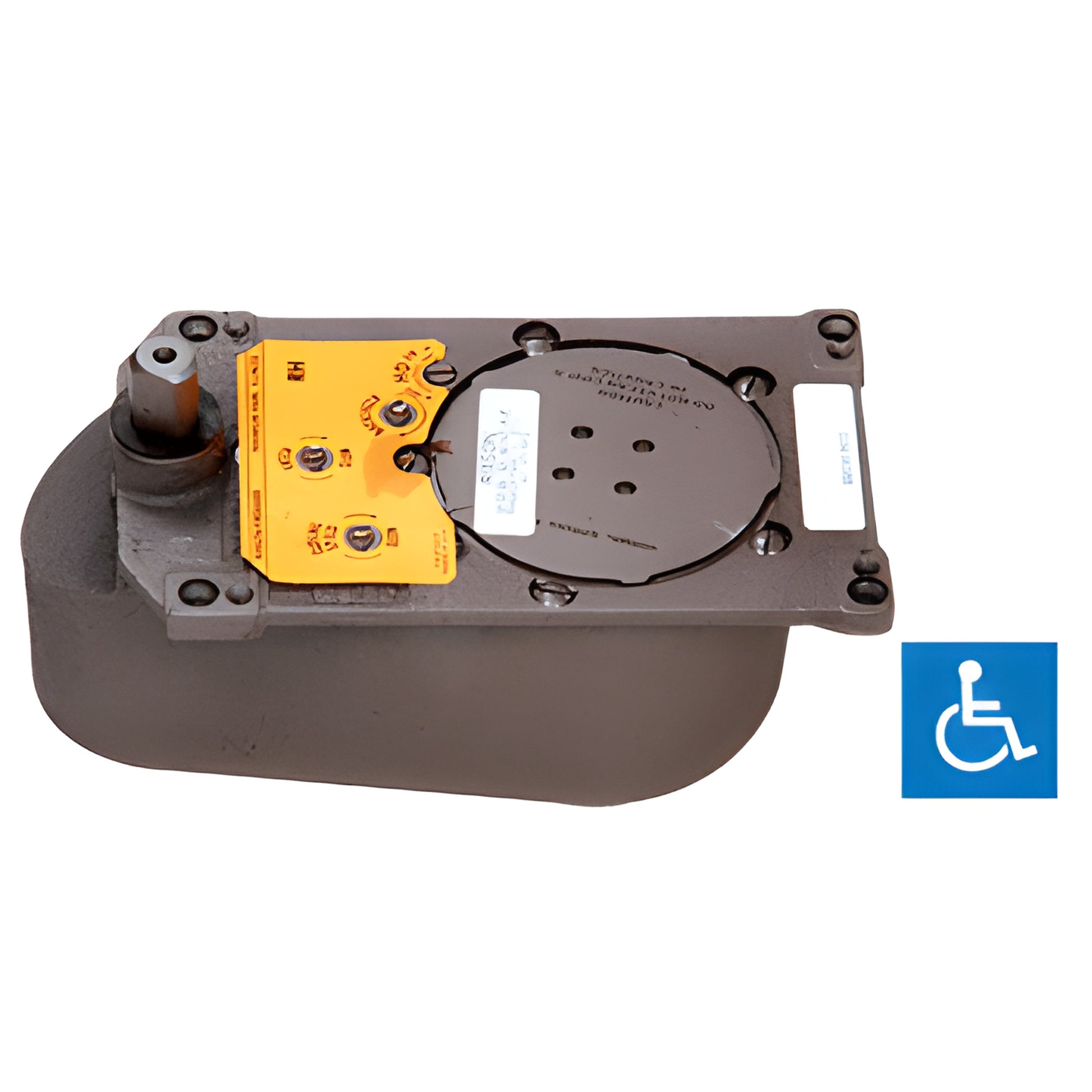

This Rixson® Model 27 Offset Floor Mounted Door Closer is a heavy-duty offset floor closer designed for reliable, efficient control of heavy doors. Because the bottom arm connects directly to the floor closer spindle, closing efficiency and load support exceed that of surface-mounted or overhead concealed closers — ideal for commercial exterior or interior doors requiring a floor-mounted solution.

Standard features: selective on/off hold open, built-in positive dead stop, and independent valves for closing, latch and backcheck adjustment. This closer is suitable for applications requiring a durable offset floor mounted door closer for heavy doors and commercial entryways.

Notes:

  • CRL is a stocking Rixson® Specialty Door Control Distributor — contact our Technical Sales Department for assistance with Rixson® products.
  • A.D.A. Series closers meet A.D.A. specified opening forces but may not provide sufficient spring power to control and close the door in all site conditions or with larger door sizes.

Optional accessories that may be needed:

Additional finishes and accessories are available upon request — contact us for a quotation.

Product Warning:
Closers set to comply with A.D.A. specified opening forces might not provide adequate spring power to control and close the door due to varying site conditions and door size. Verify closer suitability for your installation.

Most shipping weights are approximate and have not been verified. If exact weight is required to determine shipping costs, request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation; colors may vary by monitor.

SKU: PH27105SH0RH85
