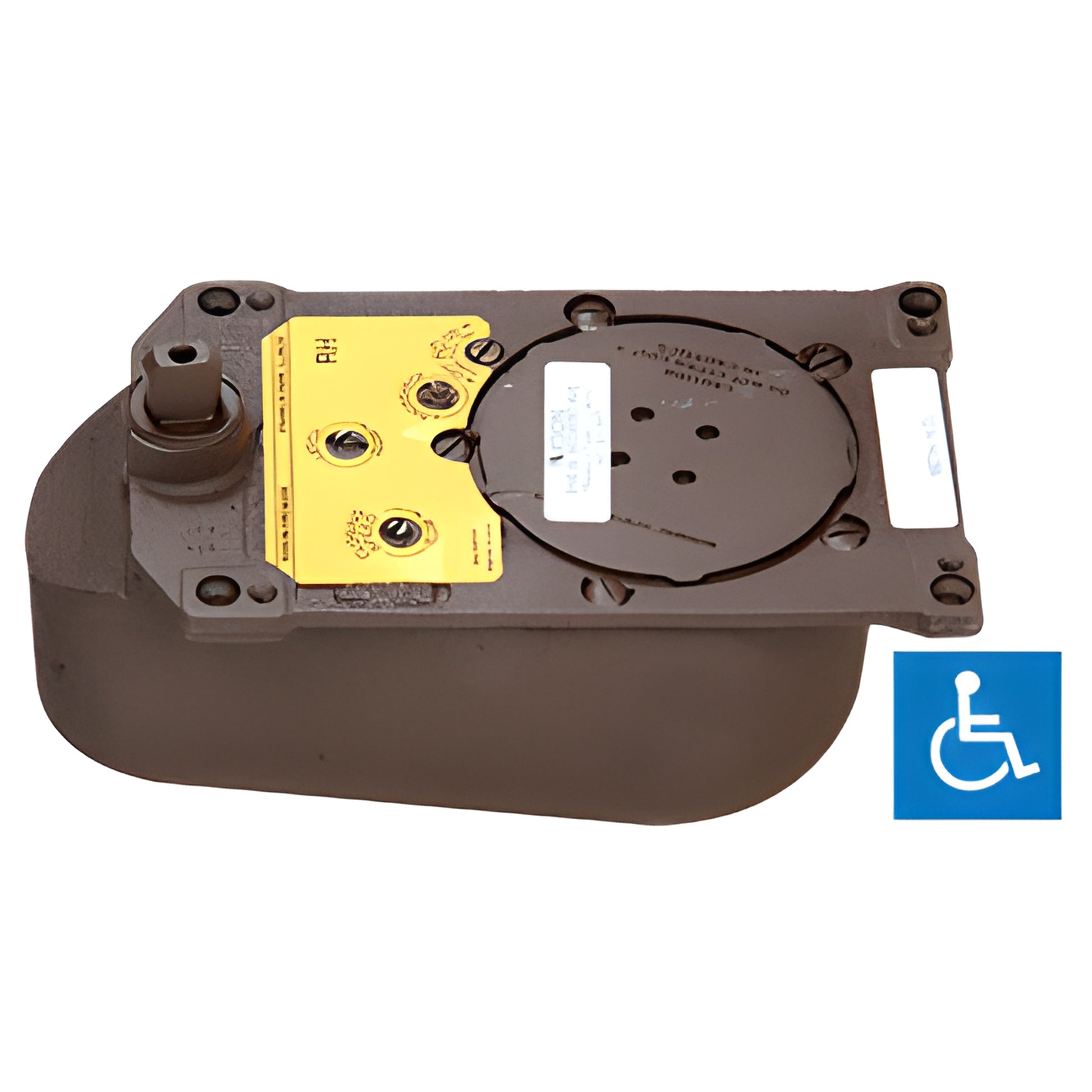

Rixson® Model PH28 8.5 Lb. Center-Hung 105 Degree Selective Hold Open Floor Mounted Closer Body Only - Right Hand
Rixson® Model PH28 8.5 Lb. Center-Hung 105 Degree Selective Hold Open Floor Mounted Closer Body Only - Right Hand
Regular price
$2,194.42 CAD
Regular price
Sale price
$2,194.42 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# PH28105SH0RH85
Shipping Weight: 20.0 Pounds
Shipping Limitations: None
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Shipping Weight: 20.0 Pounds
Shipping Limitations: None
This Product Ships Free!
Compliance and RestrictionsWarning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Description
| Adjustable | Hydraulic Backcheck Yes |
| Americans with | Disabilities Act Yes |
| Body Height 4-1/16 in. | (103.2 mm) |
| Body Length 11-1/8 in. | (282.6 mm) |
| Body Width 5-7/8 in. | (149.2 mm) |
| Brand | Rixson |
| Built | In Positive Dead Stop Yes |
| Certification ANSI | 117.1, ANSI 156.4 Grade 1 |
| Closer | Body Only Yes |
| Closer | Type Floor Closer |
| Door Height 102 in. | (2590.8 mm) |
| Door Opening | 105 ° |
| Handing | Right Hand |
| Independent | Closing and Latching Valves Yes |
| Interior | Or Exterior Doors Yes |
| Maximum Door Width - Exterior 48 in. | (1219.2 mm) |
| Maximum Door Width - Interior 48 in. | (1219.2 mm) |
| Maximum Weight Center Hung 350 lbs. | (158.8 kg) |
| Non | Stocked Parts and Acessories Special Order Yes |
| Recommended | Door Type Aluminum, Hollow Metal |
| Selective | Hold Open Yes |
| Series | 28 |
| Similar BTS | 75VBF90HO, BTS80BF, J993HOD, J994HOD |
| Spring Size | 8.5 |
| U | L Listed Yes |
Overview
The Rixson® Model 28 Center-Hung Floor Mounted Door Closer is engineered for superior mechanical door control, accommodating both exterior and interior doors up to 350 lbs (158 kg) and 48" (1.22 m) wide.
This high-efficiency closer features a direct connection between the bottom arm and the floor closer spindle, significantly enhancing closing efficiency over surface or overhead concealed closers.
Standard features include selective on or off hold open, a built-in positive dead stop, and independent valves for closing, latch, and backcheck adjustments.
Please note, while compliant with A.D.A.
opening forces, this closer may not provide adequate spring power for all site conditions.
For additional Rixson® products or customization inquiries, contact CRL's Technical Sales Department.
Optional accessories include the 253000 Floor Closer Cement Case, 284720RH Closer Cover, and 282026 Bottom Center-Hung Arm.
This high-efficiency closer features a direct connection between the bottom arm and the floor closer spindle, significantly enhancing closing efficiency over surface or overhead concealed closers.
Standard features include selective on or off hold open, a built-in positive dead stop, and independent valves for closing, latch, and backcheck adjustments.
Please note, while compliant with A.D.A.
opening forces, this closer may not provide adequate spring power for all site conditions.
For additional Rixson® products or customization inquiries, contact CRL's Technical Sales Department.
Optional accessories include the 253000 Floor Closer Cement Case, 284720RH Closer Cover, and 282026 Bottom Center-Hung Arm.
