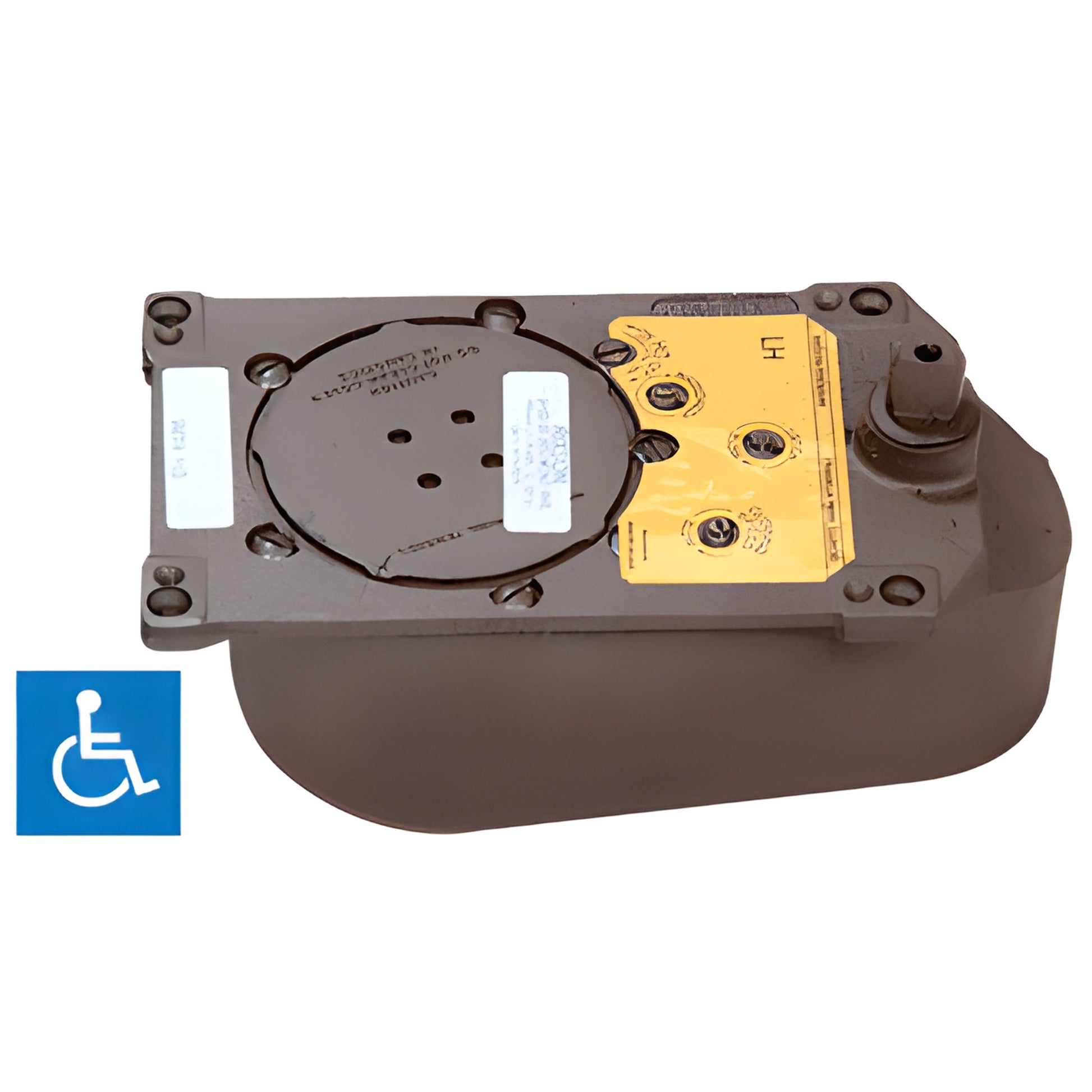

Rixson PH28 8.5 lb Center-Hung 90° Hold-Open Floor Closer Left Hand
Rixson PH28 8.5 lb Center-Hung 90° Hold-Open Floor Closer Left Hand
Regular price
$2,637.19 CAD
Regular price
Sale price
$2,637.19 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# PH2890SH0LH85
Shipping Weight: 20.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 20.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Adjustable Hydraulic Backcheck
Yes
Americans with Disabilities Act
Yes
Body Height
4-1/16 in. (103.2 mm)
Body Length
11-1/8 in. (282.6 mm)
Body Width
5-7/8 in. (149.2 mm)
Brand
Rixson
Built In Positive Dead Stop
Yes
Certification
ANSI 117.1, ANSI 156.4 Grade 1
Closer Body Only
Yes
Closer Type
Floor Closer
Door Height
102 in. (2590.8 mm)
Door Opening
90 °
Handing
Left Hand
Independent Closing and Latching Valves
Yes
Interior Or Exterior Doors
Yes
Maximum Door Width - Exterior
48 in. (1219.2 mm)
Maximum Door Width - Interior
48 in. (1219.2 mm)
Maximum Weight Center Hung
350 lbs. (158.8 kg)
Non Stocked Parts and Acessories Special Order
Yes
Recommended Door Type
Aluminum, Hollow Metal
Selective Hold Open
Yes
Series
28
Similar
BTS75VBF90HO, BTS80BF, J993HOD, J994HOD
Spring Size
8.5
UL Listed
Yes
Overview
- For exterior or interior doors weighing up to 350 lbs (158 kg) and 48" (1.22 m) wide
- Selective on/off hold-open
- Built-in positive dead stop
This Rixson® Model 28 center-hung floor mounted door closer (SKU: PH2890SH0LH85) provides a highly efficient mechanical method of door control. The door weight is carried by the bottom arm directly connected to the floor closer spindle, increasing closing efficiency compared to surface or overhead concealed closers. This center-hung floor closer is ideal for heavy-duty commercial doors up to 350 lbs and 48" wide.
Standard features include selective on/off hold-open, built-in positive dead stop, and separate independent valves for closing, latch and backcheck adjustments—useful for precise control on exterior or interior commercial doors.
Note: While the A.D.A. series settings meet A.D.A. specified opening force requirements, varying site conditions and door size can affect spring power and may prevent adequate closing force.
Note: CRL is a stocking Rixson® Specialty Door Control distributor. For Rixson® product availability or technical assistance, contact CRL Technical Sales.
Optional accessories that may be needed:
253000 Floor Closer Cement Case
284720LH Closer Cover
282026 Bottom Center-Hung Arm
340 Top Center-Hung Pivot
Additional finishes and accessories are available upon request for quotation.
Product Warning:
Closers set to comply with A.D.A. specified opening forces might not provide adequate spring power to control and close the door due to varying site conditions and door size.
