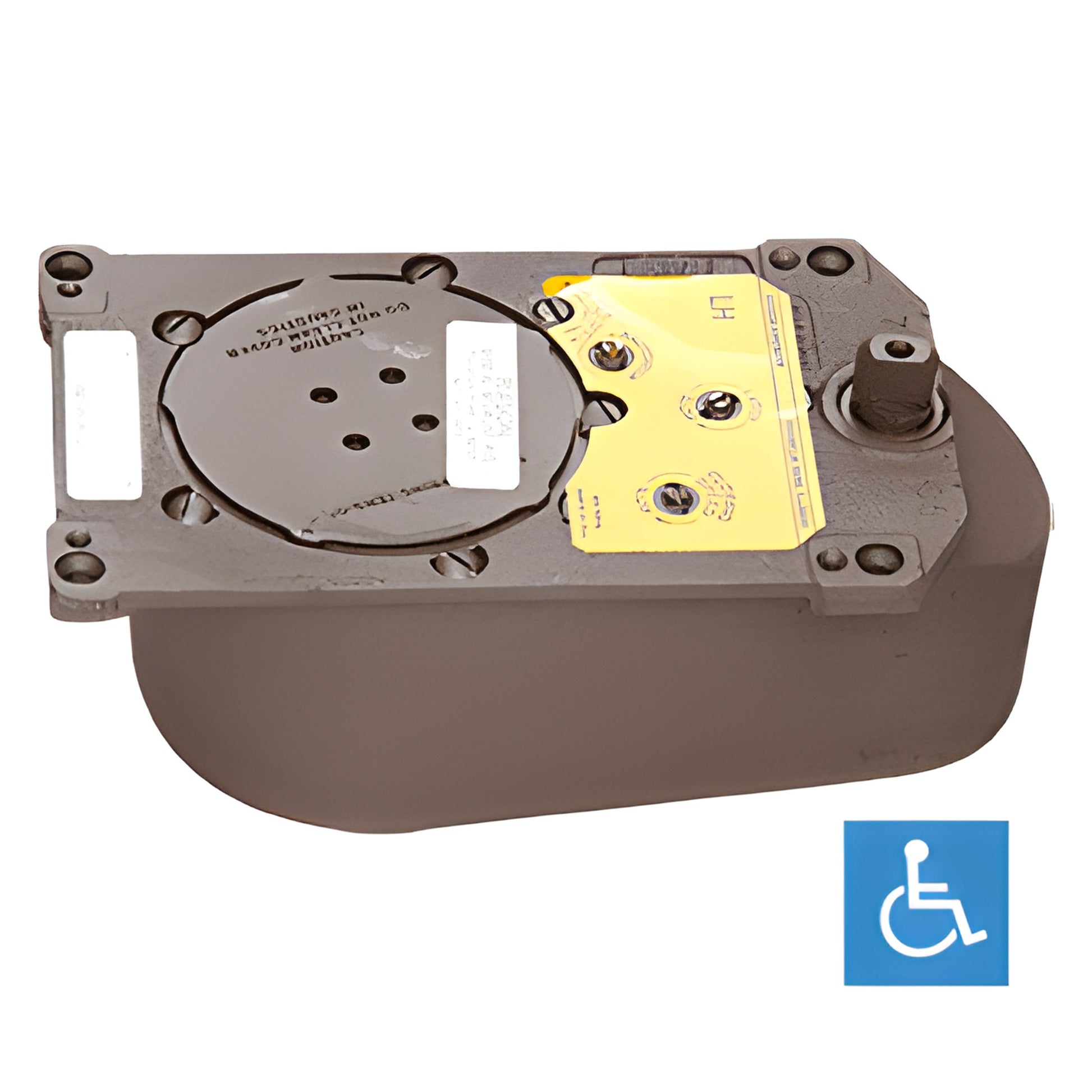

Rixson PH328 8.5 lb Left-Hand 90° Center-Hung Floor Closer Body Only
Rixson PH328 8.5 lb Left-Hand 90° Center-Hung Floor Closer Body Only
Regular price
$1,917.18 CAD
Regular price
Sale price
$1,917.18 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# PH32890SH0L85
Shipping Weight: 19.18 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 19.18 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Adjustable Hydraulic Backcheck
Yes
Americans with Disabilities Act
Yes
Body Height
4-1/16 in. (103.2 mm)
Body Length
11-1/8 in. (282.6 mm)
Body Width
5-7/8 in. (149.2 mm)
Brand
Rixson
Built In Positive Dead Stop
Yes
Certification
ANSI 117.1, ANSI 156.4 Grade 1
Closer Body Only
Yes
Closer Type
Floor Closer
Door Height
96 in. (2438.4 mm)
Door Opening
90 °
Handing
Left Hand
Independent Closing and Latching Valves
Yes
Interior Or Exterior Doors
Yes
Maximum Door Width - Exterior
38 in. (965.2 mm)
Maximum Door Width - Interior
38 in. (965.2 mm)
Maximum Weight Center Hung
325 lbs. (147.4 kg)
Non Stocked Parts and Acessories Special Order
Yes
Patch Fitting Usage
Yes
Recommended Door Type
Patch Fittings
Selective Hold Open
Yes
Series
328
Similar
BTS75VBF90HO, BTS80BF, J993HOD, J994HOD
Spring Size
8.5
Tapered Spindle Design
Yes
UL Listed
Yes
Overview
- Physically handicapped 8.5 lbs opening force — ADA opening force compliant option for accessibility
- Tapered spindle design for use with patch fittings — compatible with patch hardware
- Selective on/off hold-open — choose permanent or non-hold-open operation
Rixson® Model 328 Center-Hung Floor Mounted Door Closer (SKU: PH32890SH0L85) is a heavy-duty center-hung, floor-mounted door closer engineered to control interior or exterior doors up to 325 lbs (147 kg) and 42" (1.07 m) wide. Designed for patch fitting applications, the tapered spindle insert provides reliable mounting with patch hardware.
Key differentiators: built-in positive dead stop for reliable door positioning; separate independent valves for closing, latch and back-check adjustments for precise hydraulic control; optional ADA 8.5 lbs opening-force setting for accessibility compliance.
Standard features: selective on/off hold-open; positive dead stop; independent closing, latch and back-check adjustment valves.
Optional accessories (may be required):
Additional finishes and accessories are available upon request for quotation.
Product Warning: Closers set to comply with A.D.A. specified opening forces (e.g., 8.5 lbs) might not provide adequate spring power to control and fully close the door under certain site conditions or with larger/heavier doors. Verify door size, weight and site conditions before selecting ADA opening-force settings.
Need a quote or help selecting the right floor-mounted door closer for your project? Contact our sales team or request a quotation now.
