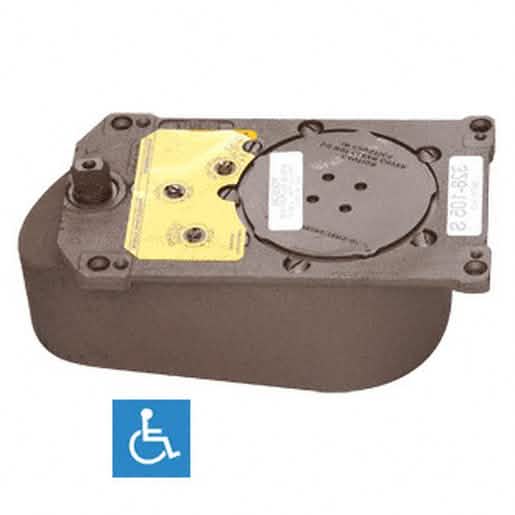

Rixson® PH328 Floor Closer Body 8.5 lb, Center-Hung RH, 90° Hold-Open
Rixson® PH328 Floor Closer Body 8.5 lb, Center-Hung RH, 90° Hold-Open
Regular price
$1,917.18 CAD
Regular price
Sale price
$1,917.18 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# PH32890SH0R85
Shipping Weight: 19.2 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 19.2 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Adjustable Hydraulic Backcheck
Yes
Americans with Disabilities Act
Yes
Body Height
4-1/16 in. (103.2 mm)
Body Length
11-1/8 in. (282.6 mm)
Body Width
5-7/8 in. (149.2 mm)
Brand
Rixson
Built In Positive Dead Stop
Yes
Certification
ANSI 117.1,ANSI 156.4 Grade 1
Closer Body Only
Yes
Closer Type
Floor Closer
Door Height
96 in. (2438.4 mm)
Door Opening
90 °
Handing
Right Hand
Independent Closing and Latching Valves
Yes
Interior Or Exterior Doors
Yes
Maximum Door Width - Exterior
38 in. (965.2 mm)
Maximum Door Width - Interior
38 in. (965.2 mm)
Maximum Weight Center Hung
325 lbs. (147.4 kg)
Non Stocked Parts and Acessories Special Order
Yes
Patch Fitting Usage
Yes
Recommended Door Type
Patch Fittings
Selective Hold Open
Yes
Series
328
Similar
BTS75VBF90HO, BTS80BF, J993HOD, J994HOD
Spring Size
8.5
Tapered Spindle Design
Yes
UL Listed
Yes
Overview
- Physically Handicapped 8.5 lbs. opening force — ADA accessibility compliant option
- Tapered spindle design for use with patch fittings — ideal for glass and storefront doors
- Selective on/off hold-open for flexible traffic control

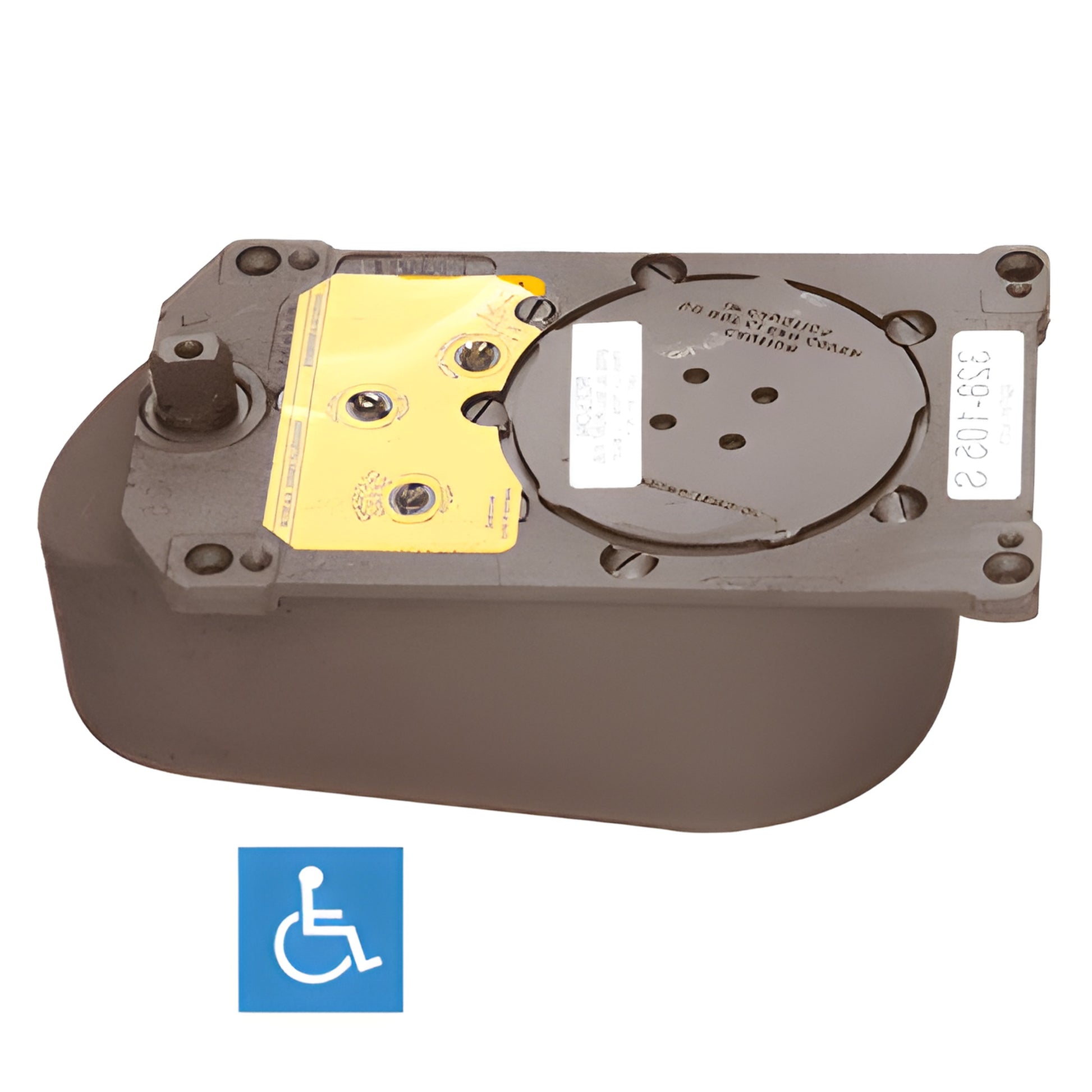

This Rixson® Model 328 Center-Hung Floor Mounted Door Closer (SKU PH32890SH0R85) delivers precise mechanical control for interior or exterior doors. Designed for tapered spindle inserts used with patch fittings, this floor closer supports doors up to 325 lbs. (147 kg) and 42" (1.07 m) wide.
Standard features include selective on/off hold-open, a built-in positive dead stop, and separate independent valves for closing, latch and backcheck adjustments—providing adjustable, reliable performance for commercial entrances and glass door applications.
NOTE: While the ADA series can meet A.D.A. specified opening forces (8.5 lbs.), varying site conditions and door sizes may reduce spring power and prevent adequate closing force.
Optional accessories that may be needed:
Additional finishes and accessories are available by request for quotation.
Product Warning:
Closers adjusted to meet A.D.A. opening-force limits may not provide sufficient spring power to control and fully close the door under all site conditions and door sizes.
Call or request a quote to confirm compatibility with your door hardware and receive pricing for PH32890SH0R85.
