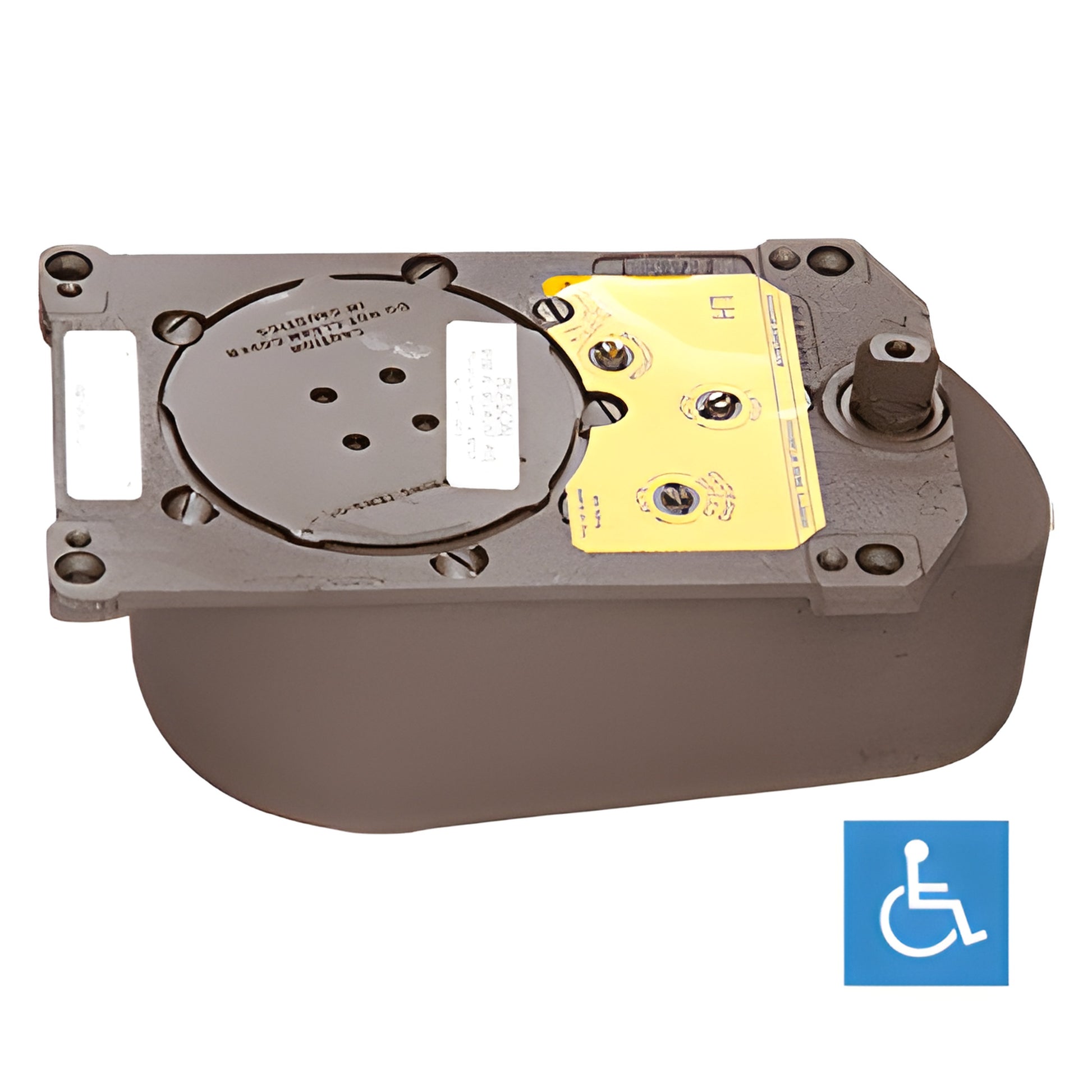

Rixson PH328 Floor Closer Body Only 8.5 lb Center-Hung 105° Selective
Rixson PH328 Floor Closer Body Only 8.5 lb Center-Hung 105° Selective
Regular price
$1,917.18 CAD
Regular price
Sale price
$1,917.18 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# PH328105SH0L85
Shipping Weight: 20.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 20.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Adjustable Hydraulic Backcheck
Yes
Americans with Disabilities Act
Yes
Body Height
4-1/16 in. (103.2 mm)
Body Length
11-1/8 in. (282.6 mm)
Body Width
5-7/8 in. (149.2 mm)
Brand
Rixson
Built In Positive Dead Stop
Yes
Certification
ANSI 117.1, ANSI 156.4 Grade 1
Closer Body Only
Yes
Closer Type
Floor Closer
Door Height
96 in. (2438.4 mm)
Door Opening
105 °
Handing
Left Hand
Independent Closing and Latching Valves
Yes
Interior Or Exterior Doors
Yes
Maximum Door Width - Exterior
38 in. (965.2 mm)
Maximum Door Width - Interior
38 in. (965.2 mm)
Maximum Weight Center Hung
325 lbs. (147.4 kg)
Non Stocked Parts and Acessories Special Order
Yes
Patch Fitting Usage
Yes
Recommended Door Type
Patch Fittings
Selective Hold Open
Yes
Series
328
Similar
BTS75VBF90HO,BTS80BF,J993HOD,J994HOD
Spring Size
8.5
Tapered Spindle Design
Yes
UL Listed
Yes
Overview
- Physically Handicapped 8.5 Lbs. opening force for compliance with ADA accessibility requirements
- Tapered spindle design for use with patch fittings
- Selective on/off hold-open
This Rixson® Model 328 Center-Hung Floor Mounted Door Closer (SKU: PH328105SH0L85) delivers precise mechanical control for interior or exterior doors. Designed for patch fitting applications, the tapered spindle insert fits patch hardware and supports doors up to 325 lbs (147 kg) and 42" (1.07 m) wide — ideal for commercial ADA-compliant entrances and retrofit projects.
Standard features include selective on/off hold-open, a built-in positive dead stop, and separate independent valves for closing, latch and backcheck adjustments for fine-tuned performance and reliable door control.
Optional accessories that may be needed:
Additional finishes and accessories are available upon request for quotation.
Product Warning:
Closers set to comply with ADA-specified opening forces (8.5 lb) might not provide sufficient spring power to control and fully close the door under certain site conditions or with larger door sizes. Verify suitability for your installation before finalizing specifications.
Order the Rixson Model 328 floor-mounted door closer (SKU: PH328105SH0L85) for reliable, ADA-focused door control — contact us to request a quote or confirm compatibility for your patch fitting application.
