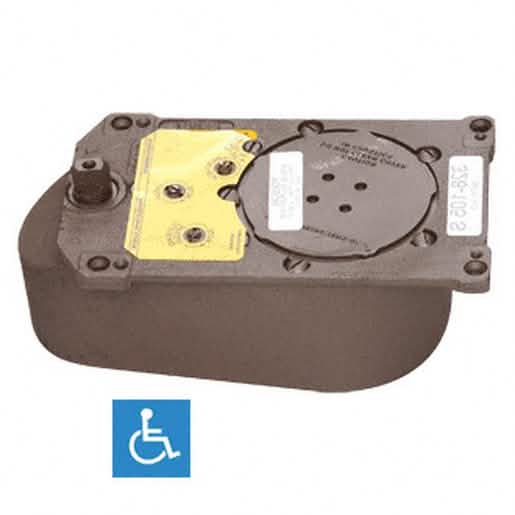

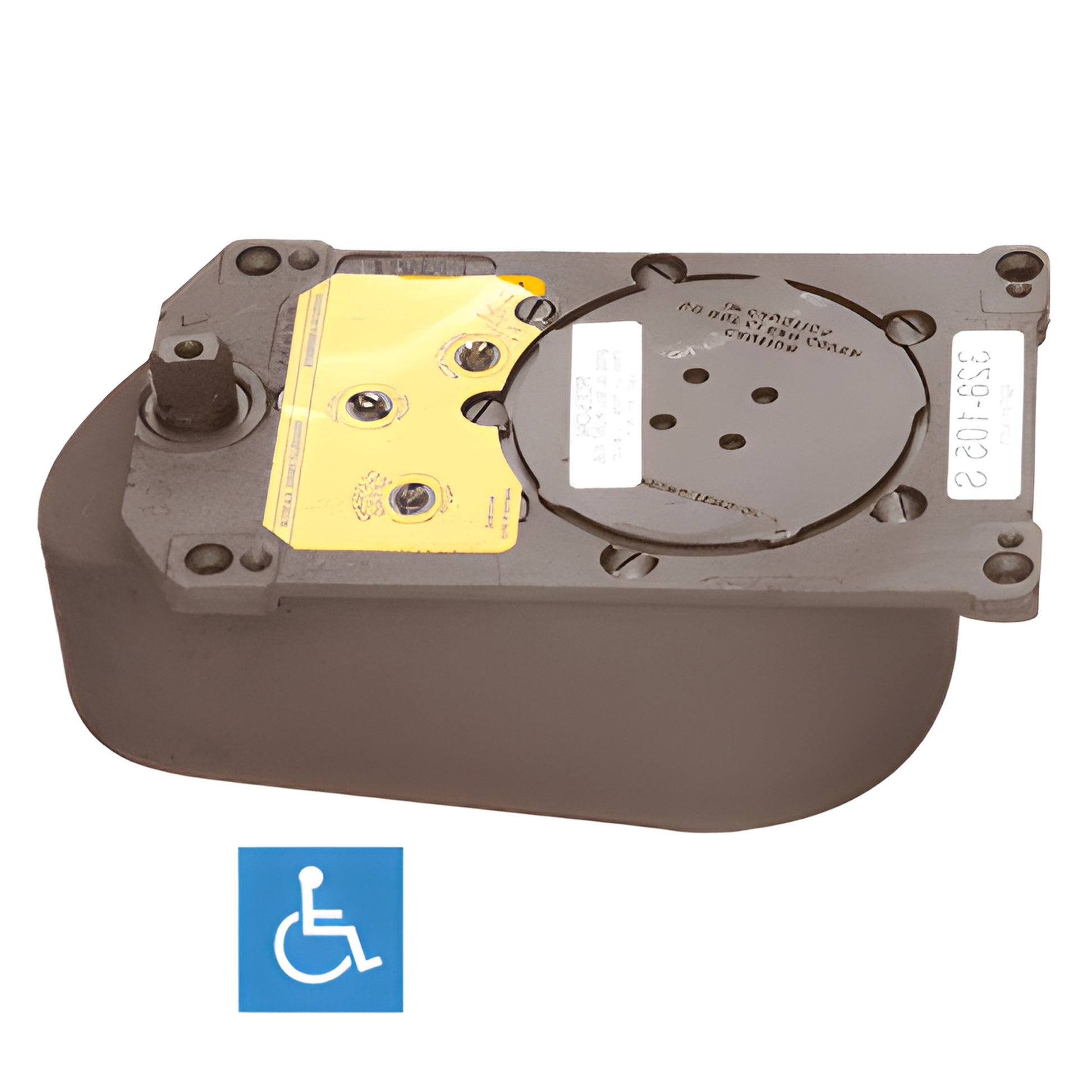

Rixson PH328 Floor Closer Body 8.5 lb CH RH 105° Selective Hold-Open
Rixson PH328 Floor Closer Body 8.5 lb CH RH 105° Selective Hold-Open
Regular price
$1,917.18 CAD
Regular price
Sale price
$1,917.18 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# PH328105SH0R85
Shipping Weight: 20.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 20.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Adjustable Hydraulic Backcheck
Yes
Americans with Disabilities Act
Yes
Body Height
4-1/16 in. (103.2 mm)
Body Length
11-1/8 in. (282.6 mm)
Body Width
5-7/8 in. (149.2 mm)
Brand
Rixson
Built In Positive Dead Stop
Yes
Certification
ANSI 117.1, ANSI 156.4 Grade 1
Closer Body Only
Yes
Closer Type
Floor Closer
Door Height
96 in. (2438.4 mm)
Door Opening
105 °
Handing
Right Hand
Independent Closing and Latching Valves
Yes
Interior Or Exterior Doors
Yes
Maximum Door Width - Exterior
38 in. (965.2 mm)
Maximum Door Width - Interior
38 in. (965.2 mm)
Maximum Weight Center Hung
325 lbs. (147.4 kg)
Non Stocked Parts and Acessories Special Order
Yes
Patch Fitting Usage
Yes
Recommended Door Type
Patch Fittings
Selective Hold Open
Yes
Series
328
Similar
BTS75VBF90HO, BTS80BF, J993HOD, J994HOD
Spring Size
8.5
Tapered Spindle Design
Yes
UL Listed
Yes
Overview
- Physically handicapped 8.5 lbs opening force for ADA accessibility compliance (A.D.A. series)
- Tapered spindle design for use with patch fittings and tapered spindle inserts
- Selective on/off hold-open for controlled egress
This Rixson® Model 328 Center-Hung Floor Mounted Door Closer (SKU: PH328105SH0R85) is a durable center-hung floor-mounted door closer engineered to provide reliable mechanical control for interior or exterior doors. Designed for use with the tapered spindle insert for patch fittings, this closer supports doors up to 325 lbs (147 kg) and up to 42" (1.07 m) wide.
Standard features include selective on/off hold-open, a built-in positive dead stop, and separate independent valves for closing, latching, and back check adjustments—ideal for commercial ADA door projects and retrofit applications.
NOTE: Although A.D.A. Series door closers meet A.D.A. specified opening force limits, they may not provide sufficient spring power to fully control and close some doors depending on site conditions and door size.
Optional accessories that may be needed are:
Additional finishes and accessories are available upon request for quotation.
Product Warning:
Closers set to comply with A.D.A. specified opening forces might not provide adequate spring power to control and close the door due to varying site conditions and door size.
For pricing, lead times, or to request a quote for this Rixson Model 328 center-hung floor mounted door closer (SKU: PH328105SH0R85), contact CRL Customer Service or request a quote today.
