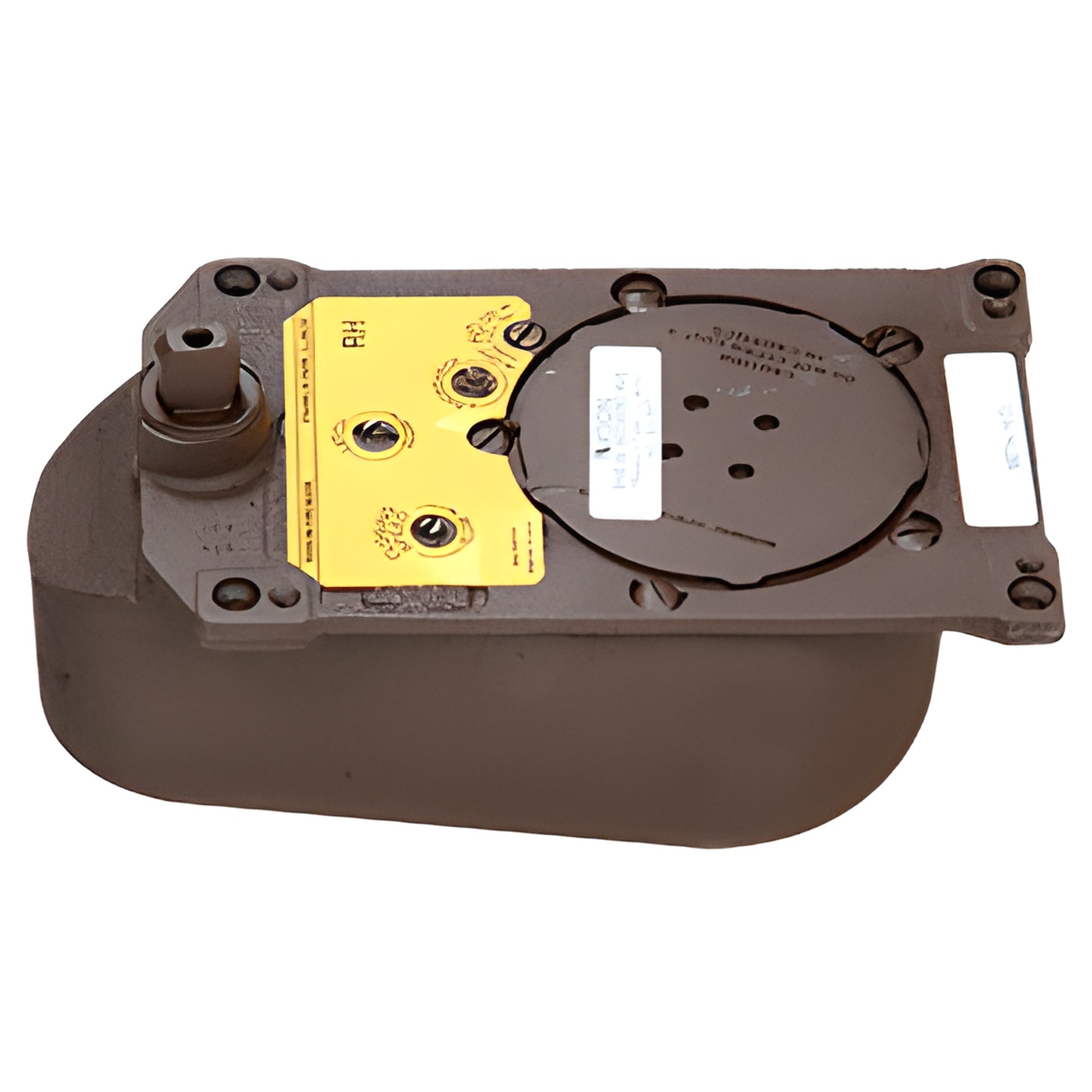

Rixson 28 Series Center-Hung Floor Door Closer Body RH 90° Hold-Open

• For exterior or interior doors weighing up to 350 lbs. (158 kg) and 48" (1.22 m) wide
• Selective on/off hold-open for controlled propping
• Built-in positive dead stop

Rixson® Model 28 Center-Hung Floor Mounted Door Closer — engineered for high-efficiency door control on heavy center-hung doors. The bottom arm connects directly to the floor closer spindle, transferring door weight to the closer and delivering superior closing efficiency compared with surface or overhead concealed closers. Ideal for exterior and interior center-hung doors up to 350 lb (158 kg) and 48" (1.22 m) wide.

Standard features: selective on/off hold-open, built-in positive dead stop, and separate independent valves for closing, latch and backcheck adjustments — providing precise, field-adjustable performance for commercial and heavy-duty applications.

Note: CRL is a stocking Rixson® Specialty Door Control distributor. For Rixson® product availability or technical assistance, contact our Technical Sales Department.

Optional accessories that may be needed: 253000 Floor Closer Cement Case 284720RH Closer Cover 282026 Bottom Center-Hung Arm 340 Top Center-Hung Pivot

Additional finishes and accessories are available upon request for quotation.
