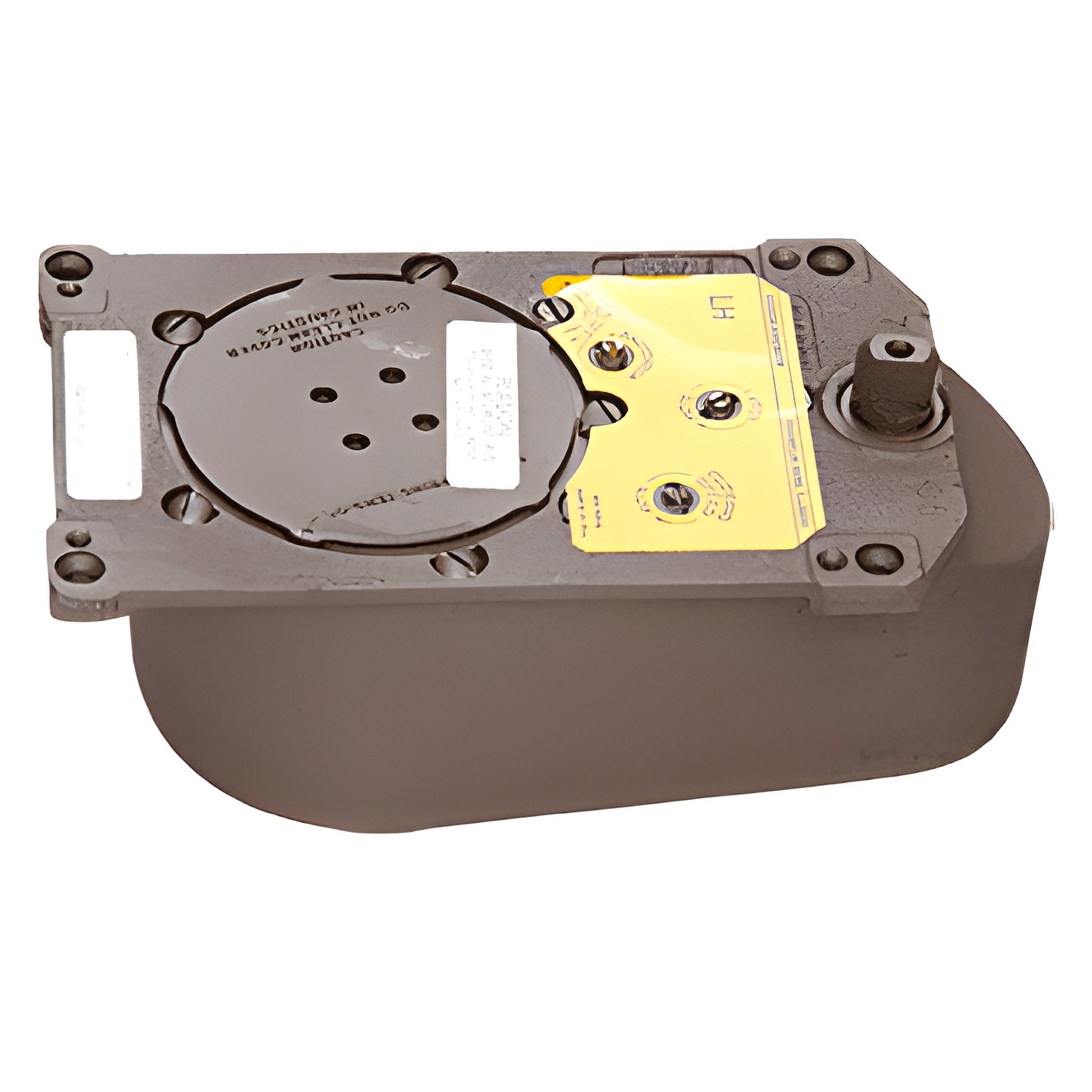

Rixson 328 Center-Hung Floor Closer Body LH 105° Hold-Open for Patch
Rixson 328 Center-Hung Floor Closer Body LH 105° Hold-Open for Patch
Regular price
$2,659.92 CAD
Regular price
Sale price
$2,659.92 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 328105SH0LHB0D
Shipping Weight: 19.01 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 19.01 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Adjustable Hydraulic Backcheck
Yes
Body Height
4-1/16 in. (103.2 mm)
Body Length
11-1/8 in. (282.6 mm)
Body Width
5-7/8 in. (149.2 mm)
Brand
Rixson
Built In Positive Dead Stop
Yes
Certification
ANSI 117.1
Closer Body Only
Yes
Closer Type
Floor Closer
Door Height
96 in. (2438.4 mm)
Door Opening
105 °
Handing
Left Hand
Hold Open
105
Independent Closing and Latching Valves
Yes
Interior Or Exterior Doors
Yes
Maximum Door Width - Exterior
38 in. (965.2 mm)
Maximum Door Width - Interior
38 in. (965.2 mm)
Maximum Weight Center Hung
325 lbs. (147.4 kg)
Non Stocked Parts and Acessories Special Order
Yes
Patch Fitting Usage
Yes
Recommended Door Type
Patch Fittings
Selective Hold Open
Yes
Series
328
Similar
BTS75VBFNHO, BTS7510CPBS, BTS7510CPDU
Tapered Spindle Design
Yes
UL Listed
Yes
Overview
- Tapered spindle design — compatible with patch fittings for glass and metal doors
- For exterior or interior doors up to 325 lbs (147 kg) and 42" (1.07 m) wide
- Selective on/off hold-open for controlled entry and egress
- Built-in positive dead stop and separate independent valves for closing, latching, and back check adjustment
Rixson® Model 328 Center-Hung Floor Mounted Door Closer (SKU: 328105SH0LHB0D) is a heavy-duty, center-hung floor closer engineered for reliable control of interior and exterior doors, including patch-fitted glass doors. The tapered spindle insert allows easy integration with patch fittings while supporting doors up to 325 lbs and 42" wide.
Standard features: selective on/off hold-open, positive dead stop, and independent valves for closing, latch and back check adjustments—ideal for commercial and high-traffic exterior or interior applications requiring precise door control.
Optional accessories that may be needed:
Additional finishes and accessories available upon request.
Need a quote or technical assistance? Contact CRL Customer Service to request pricing, finishes, or installation guidance.
Specifications
Templates
