Rixson® Polished Chrome 28 Series Center-Hung Left Hand 90º Selective Hold Open Floor Mounted Closer - Complete Package

• For Exterior or Interior Doors
• Selective Hold Open Feature (SHO)
• 350 lb (159 kg) Capacity
• Built-In Positive Dead Stop
• Adjustable Hydraulic Backcheck
• ANSI A156.4 Grade 1
• 10 Year Limited Warranty
• UL Listed

Rixson® Floor Mounted Door Closers (SKU: 2890SH0LHPC) are a proven solution for high-traffic and heavy doors. The floor-mounted design supports door weight on the bottom arm for a service-free, long-lasting performance and an efficient 85% closing-force-to-opening-force ratio—allowing lighter opening effort while maintaining reliable door control. Ideal long-tail keyword matches: Rixson floor mounted door closer 350 lb capacity, selective hold open floor closer, heavy-duty center-hung door closer.

CRL stocks the Selective Hold Open model and offers multiple factory options and accessories. These closers are designed for durability in commercial applications and provide precise hydraulic control for closing, latching, and backcheck.

• Single-acting, handed installation
• Selective Hold Open (SHO) stocked
• Independent valves for closing speed, latching speed, and backcheck adjustments
• Built-in positive dead stop prevents the door from swinging beyond the specified opening (stock 90° and 105°)
• "PH" models meet ANSI A117.1 / ADA 8.5 lb opening force
• 350 lb (159 kg) capacity for doors up to 48" (1.22 m) wide
• Furnished with wood and machine screws

• 28 Series Center-Hung Closer Body
• 253000 Cement Case
• 284720 Finished Cover Plate
• 282026 Bottom Arm
• 340 Center-Hung Top Pivot

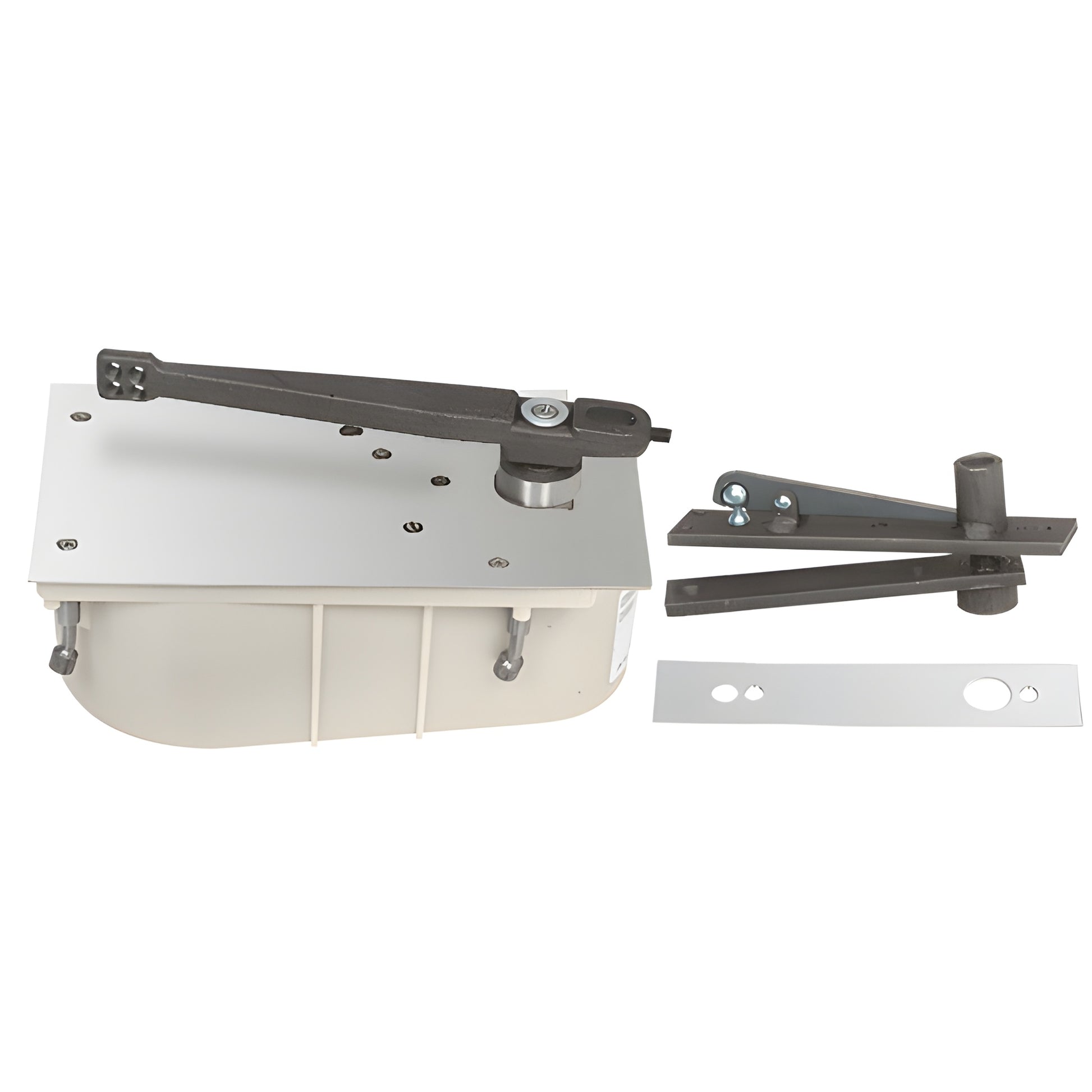

The following components are included to complete the job:

253000 Floor Closer Cement Case
284720RH Closer Cover
282026 Bottom Center-Hung Arm
340 Top Center-Hung Pivot

Additional finishes, optional features, and accessories are available upon request—contact CRL for custom configurations and pricing.

Closers adjusted to meet ADA-specified opening forces may not provide adequate spring power to control and fully close the door in all site conditions or with oversized/heavy doors. Verify suitability for your application prior to installation.
