Rixson® 28 Polished Chrome Floor Closer Center-Hung RH 105° Hold-Open

• For Exterior or Interior Doors
• Selective Hold Open Feature
• 350 lb (159 kg) Capacity
• Built-In Positive Dead Stop
• Adjustable Backcheck
• ANSI A156.4 Grade 1
• 10 Year Limited Warranty
• UL Listed

Rixson® Floor Mounted Door Closers are a proven, service-free solution for high-traffic and heavy doors. Floor closers provide superior mechanical control with an 85% closing-force-to-opening-force ratio, lowering required opening effort while maintaining reliable closing performance. The door weight is supported by the bottom arm connected directly to the floor closer spindle, making these closers ideal for commercial exterior or interior applications where durability matters.

This SKU: 28105SH0RHPC — stocked with Selective Hold Open (SHO) — is offered by CRL with optional finishes and accessories available on request.

FEATURES AND SPECIFICATIONS:

• Single-acting, handed design
• Selective Hold Open (SHO) — stocked
• Separate, independent valves for closing speed, latching speed, and backcheck
• Built-in positive dead stop prevents over-swing (stocked at 90° and 105°)
• "PH" models meet ANSI A117.1 and ADA 8.5 lb opening-force requirement
• 350 lb (159 kg) weight capacity; for doors up to 48" (1.22 m) wide
• Furnished with wood and machine screws

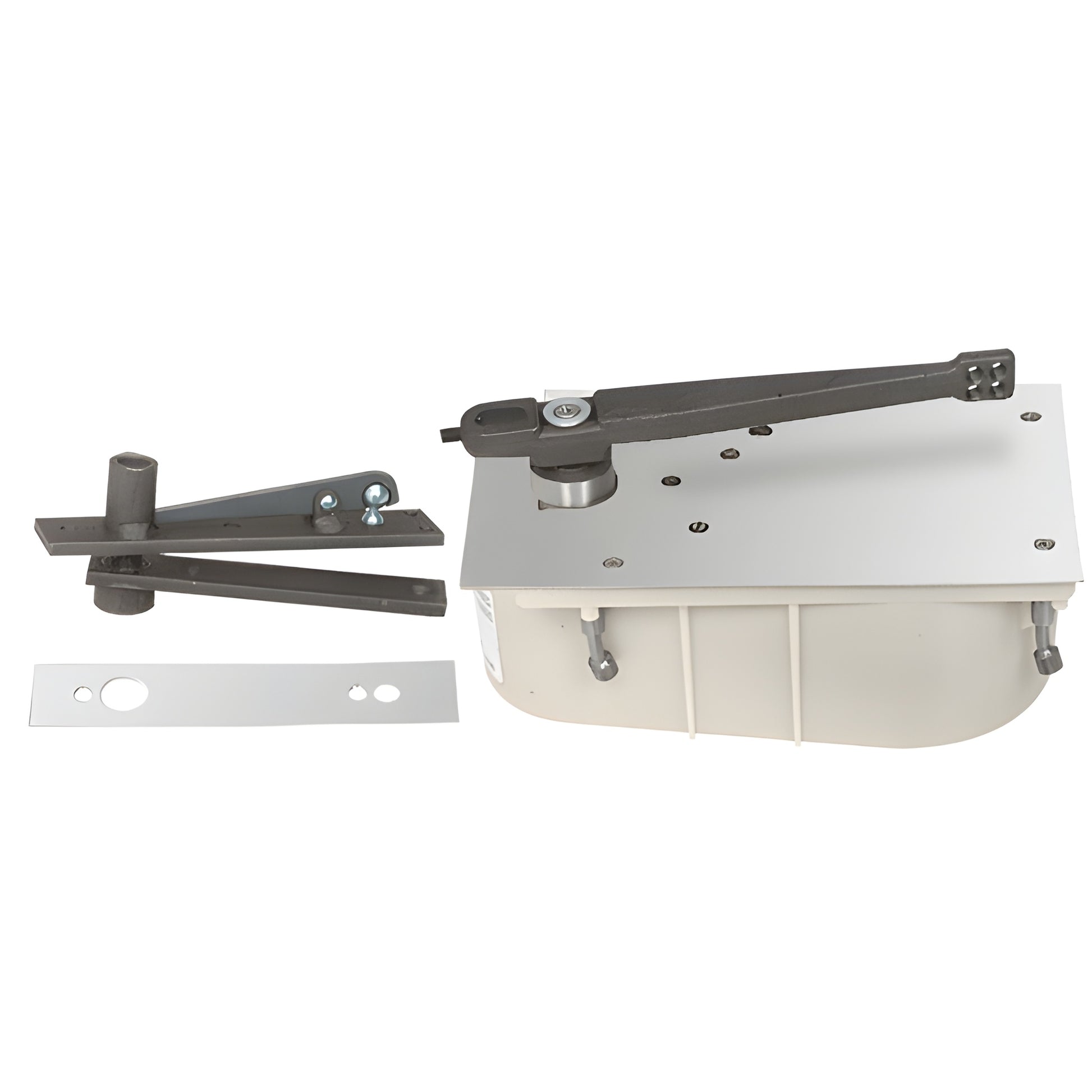

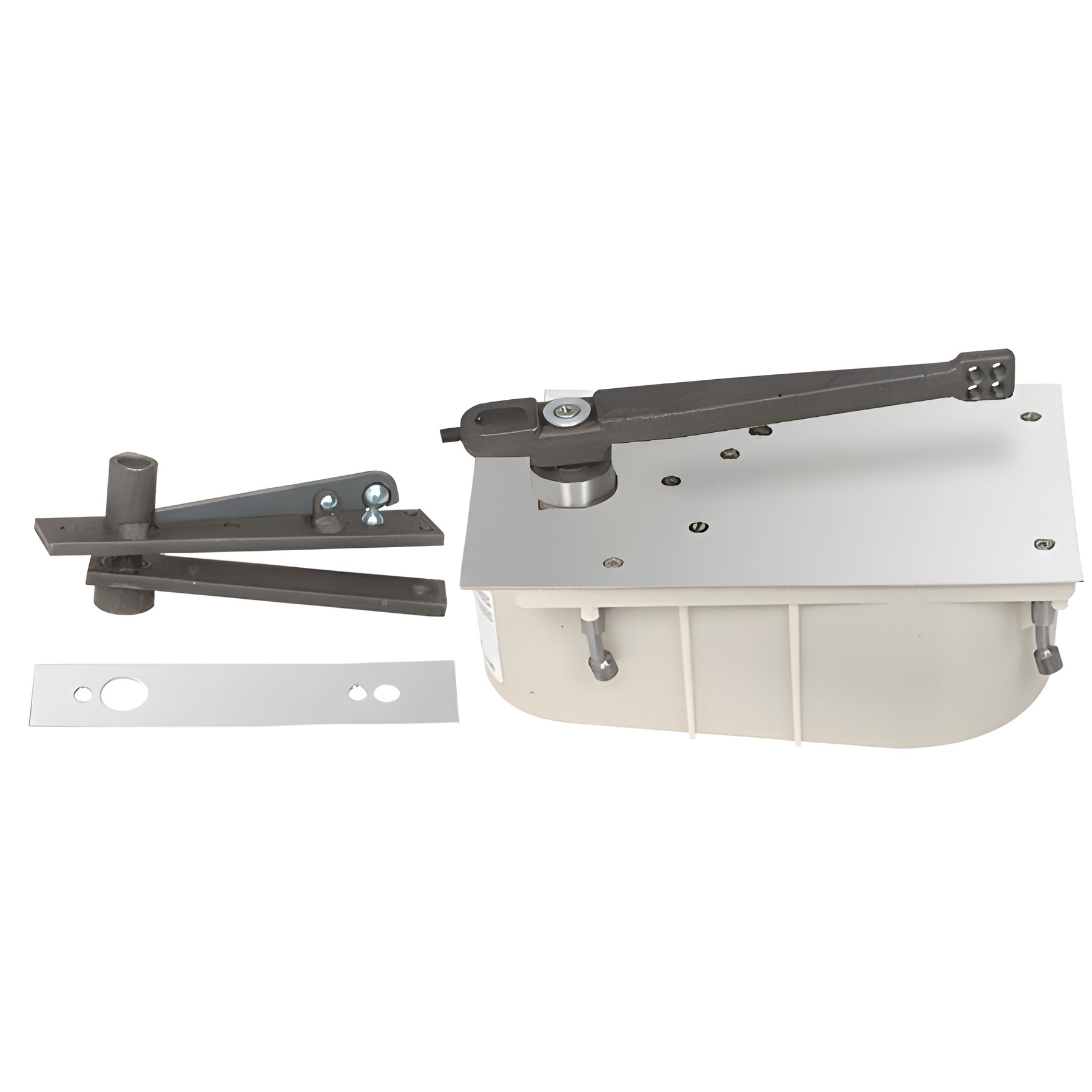

CONTENTS:

• 28 Series center-hung closer body
• 253000 cement case
• 284720 finished cover plate
• 282026 bottom arm
• 340 center-hung top pivot

Included components to complete the installation:
253000 Floor Closer Cement Case
284720RH Closer Cover
282026 Bottom Center-Hung Arm
340 Top Center-Hung Pivot

Additional finishes and accessories are available upon request for quotation.

Product Warning:
Closers set to comply with ADA-specified opening forces may not provide sufficient spring power to control and close the door under certain site conditions or with oversized doors. Verify application suitability prior to installation.
