Rixson 28 Polished Chrome Center-Hung Floor Closer RH 90 Hold Open

• For Exterior or Interior Doors
• Selective Hold Open Feature (SHO)
• 350 lb (159 kg) Capacity, up to 48" (1.22 m) door width
• Built-In Positive Dead Stop (stock 90° and 105°)
• Adjustable Hydraulic Backcheck
• ANSI 156.4 Grade 1
• 10 Year Limited Warranty
• UL Listed

Rixson® Floor Mounted Door Closers deliver reliable, service-free performance for high-traffic openings. The Rixson 28 Series floor-mounted closer provides an industry-leading 85% closing force-to-opening force ratio, enabling lighter opening effort while maintaining positive control—ideal for heavy doors and busy commercial entrances. The bottom arm supports door weight directly at the spindle for durable operation in demanding environments.

Rixson floor closers available from CRL include Selective Hold Open, Built-In Positive Dead Stop, and Adjustable Backcheck. Optional finishes, PH (ADA) models, and accessories are available upon request.

FEATURES AND SPECIFICATIONS:

• Single-acting, handed
• Selective Hold Open (SHO) stocked
• Separate valves for closing speed, latching speed, and backcheck
• Built-in positive dead stop prevents over-swing (stock 90° and 105°)
• "PH" models meet ANSI A117.1 (ADA) 8.5 lb opening force
• 350 lb (159 kg) capacity, 48" (1.22 m) max width
• Furnished with wood and machine screws

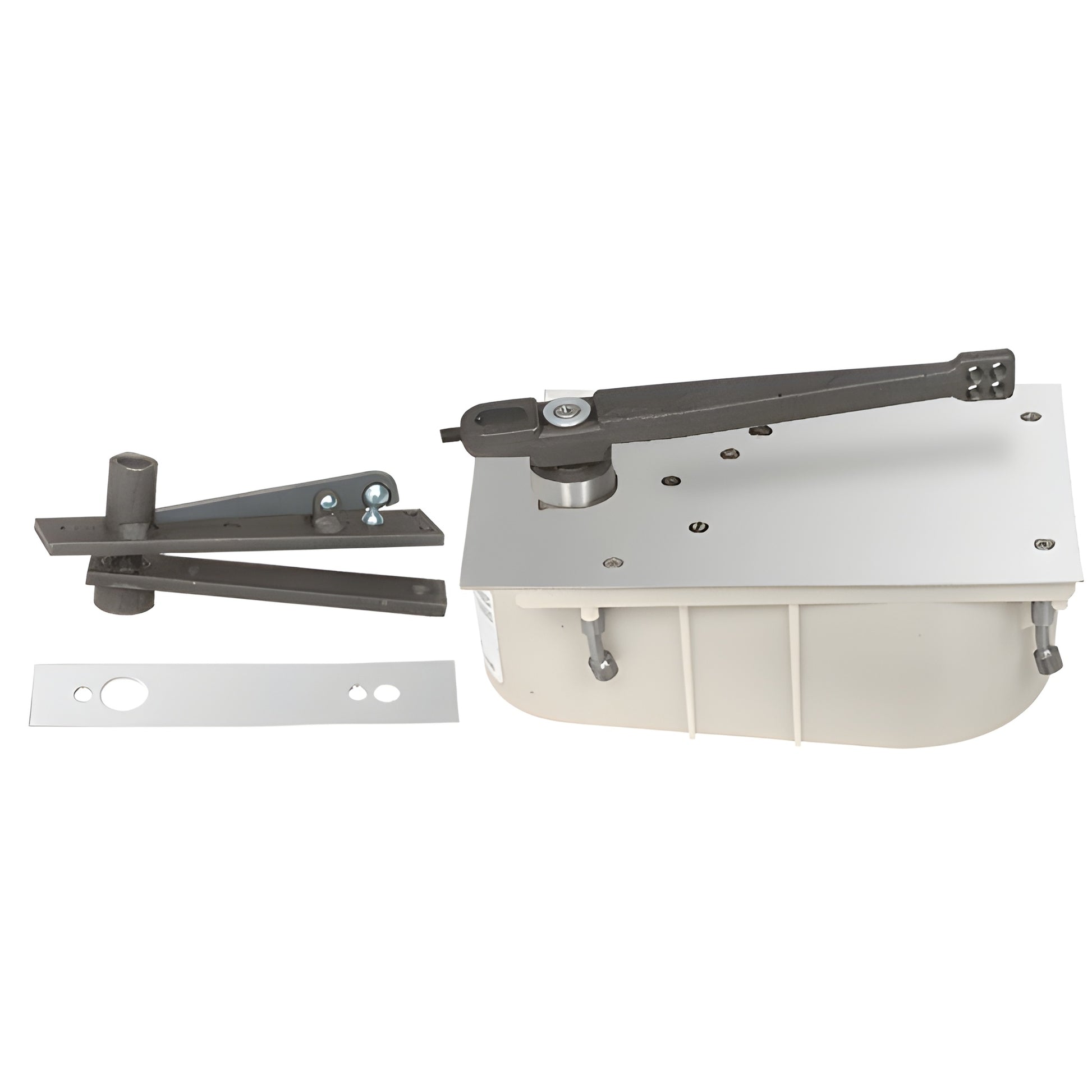

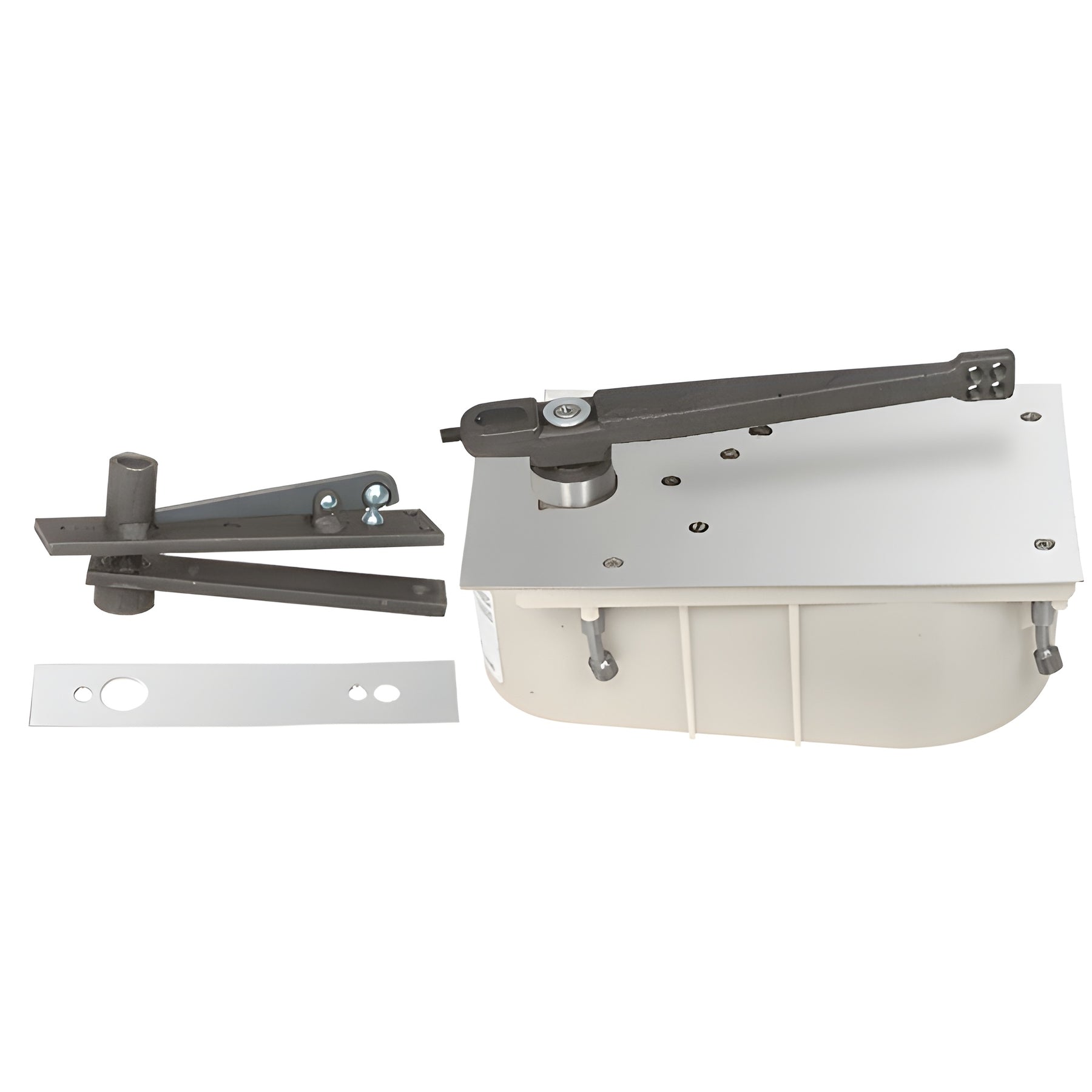

CONTENTS:
28 Series Center-Hung Closer Body
253000 Cement Case
284720 Finished Cover Plate
282026 Bottom Arm
340 Center-Hung Top Pivot

The following components are included to complete the job:
253000 Floor Closer Cement Case
284720RH Closer Cover
282026 Bottom Center-Hung Arm
340 Top Center-Hung Pivot

Additional finishes and accessories are available upon request for quotation.

Product Warning:
Closers set to comply with A.D.A. specified opening forces might not provide adequate spring power to control and close the door due to varying site conditions and door size. Verify field conditions before finalizing ADA settings.

SKU: 2890SH0RHPC
