Rixson® 27 Satin Chrome Left-Hand 3/4 Offset Floor Closer Hold-Open

• For Exterior or Interior Doors
• Selective Hold Open Feature (SHO)
• 450 lb (204 kg) Capacity — supports doors up to 48" (1.22 m) wide
• Built-In Positive Dead Stop (stock 90° and 105°)
• Adjustable Hydraulic Backcheck
• ANSI A156.4 Grade 1
• 10 Year Limited Warranty
• UL Listed

Rixson® Floor Mounted Door Closers are a proven, service‑free solution for high-traffic and heavy doors. Floor-mounted closers provide superior mechanical control with an 85% closing-force to opening-force ratio, enabling lighter opening force while maintaining strong closing control. The bottom arm directly supports the door weight by connecting to the closer spindle, making these closers ideal for premium commercial entrances and heavy-duty interior/exterior applications.

CRL stocks 27 Series floor closers with multiple configurations and optional accessories. Common long-tail search terms: floor mounted door closer with selective hold open, 450 lb capacity floor closer, ANSI Grade 1 floor closer.

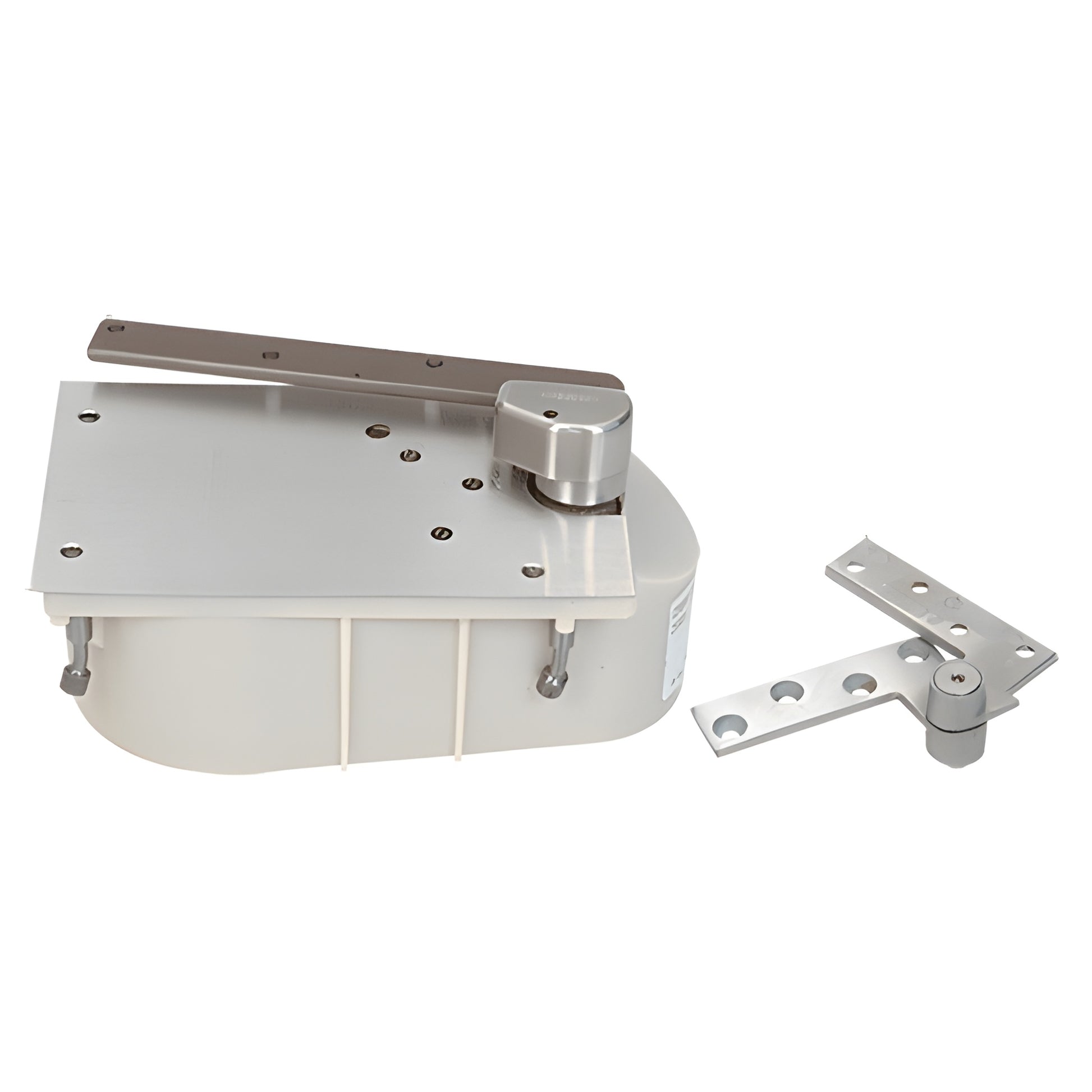

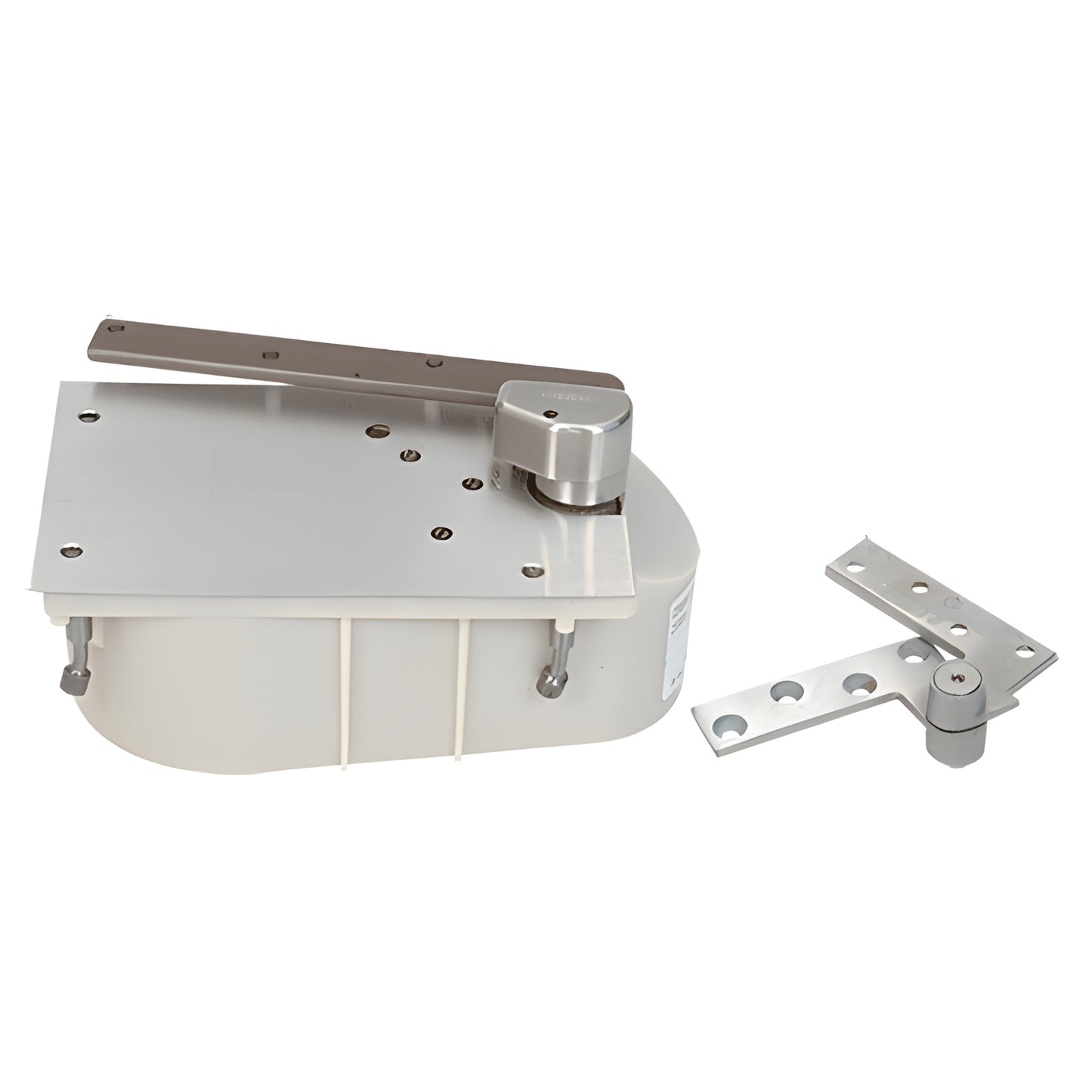

CONTENTS:

• 27 Series Offset Closer Body
• 253000 Cement Case
• 274750 Finished Cover Plate
• 252050 Bottom Arm
• R180 Top Offset Pivot

FEATURES AND SPECIFICATIONS:

• Single-acting, handed design
• Selective Hold Open (SHO) — stocked
• Separate valves for closing speed, latching speed, and backcheck adjustments
• Built-in positive dead stop prevents over-swing (stocked at 90° and 105°)
• "PH" models meet ANSI A117.1 / ADA 8.5 lb opening force
• 450 lb (204 kg) capacity; 48" (1.22 m) door width rating. Manufacturer recommends one intermediate pivot for doors up to 90" (2.29 m) tall and an additional intermediate pivot for each extra 30" (762 mm)
• Selective Hold Open and positive dead stop options make this ideal for controlled egress and decorative entrance installations

Product Warning:
Closers set to meet ADA opening-force limits may not provide enough spring power to control and fully close larger or atypical doors under certain site conditions. Verify application requirements before installation.

SKU: 27105SH0LHSC
