Rixson 28 Satin Chrome Floor Closer Center-Hung LH 90° Hold-Open

• For Exterior or Interior Doors
• Selective Hold Open Feature
• 350 lb (159 kg) Capacity
• Built-In Positive Dead Stop
• Adjustable Hydraulic Backcheck
• ANSI 156.4 Grade 1
• 10 Year Limited Warranty
• UL Listed

Rixson® Floor Mounted Door Closers (SKU: 2890SH0LHSC) are time-proven, service-free closers engineered for high-traffic and heavy door applications. Floor closers deliver an 85% closing force-to-opening force ratio, reducing required opening force while maintaining reliable door control. The bottom-arm-mounted spindle supports the door weight, making these closers ideal for heavy or frequently used interior and exterior doors.

Available from CRL with multiple factory options: Selective Hold Open (SHO), Built-In Positive Dead Stop (stock 90° and 105°), and Adjustable Hydraulic Backcheck. Optional finishes and accessories are available by request.

FEATURES & SPECIFICATIONS

• Single-acting, handed
• Selective Hold Open (SHO) — stocked
• Separate valves for closing speed, latching speed, and backcheck adjustments
• Built-In Positive Dead Stop prevents over-swing (stock 90° and 105°)
• "PH" models meet ANSI A117.1 for 8.5 lb ADA opening force
• 350 lb (159 kg) capacity for doors up to 48" (1.22 m) wide
• Furnished with wood and machine screws

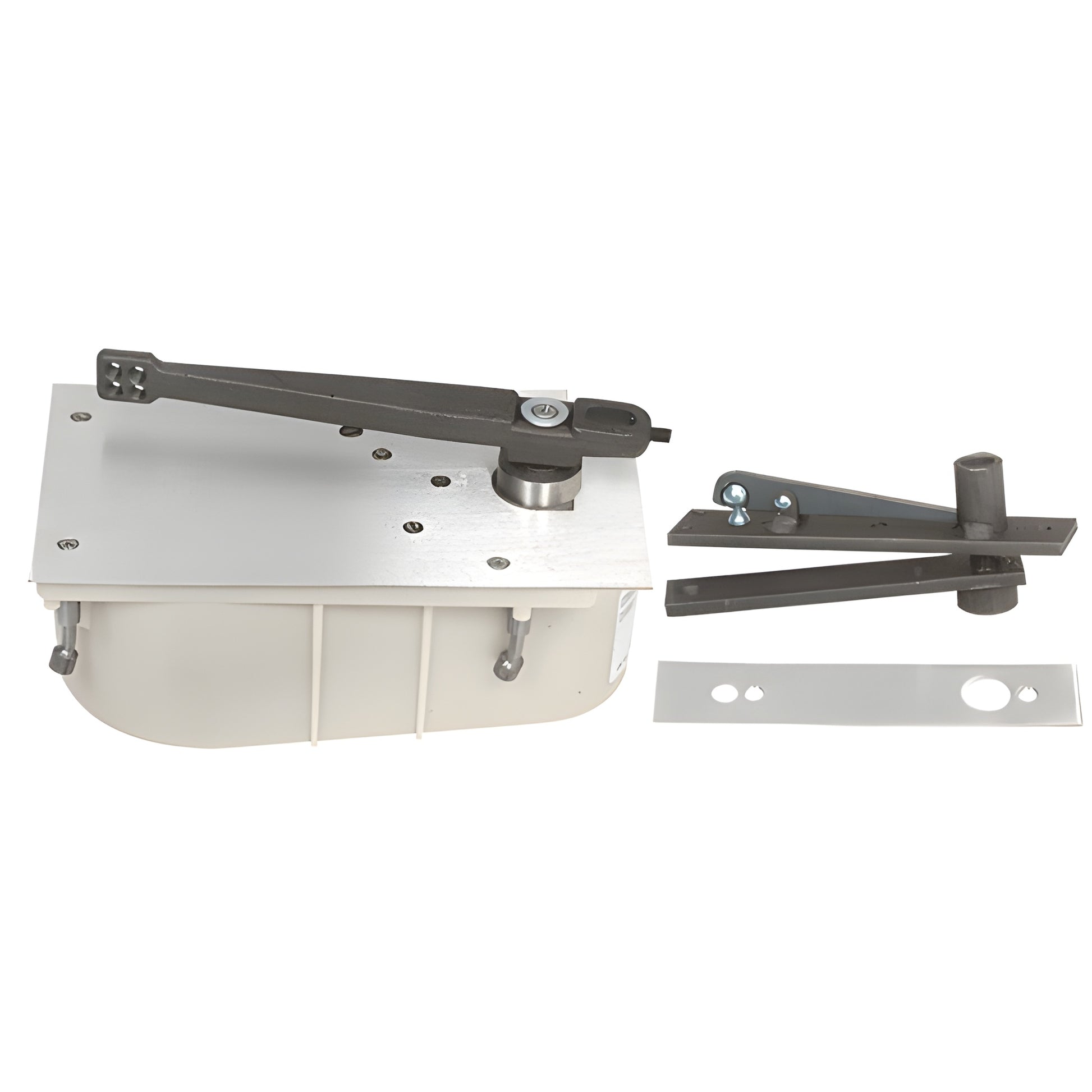

CONTENTS

• 28 Series Center-Hung Closer Body
• 253000 Cement Case
• 284720 Finished Cover Plate
• 282026 Bottom Arm
• 340 Center-Hung Top Pivot

The following components are included to complete the job:

253000 Floor Closer Cement Case
284720RH Closer Cover
282026 Bottom Center-Hung Arm
340 Top Center-Hung Pivot

Additional finishes and accessories are available upon request. This Rixson floor-mounted closer is a durable choice for commercial storefronts, institutional doors, and heavy glass or wood doors requiring reliable hold-open, dead-stop, and backcheck control.

Product Warning:
Closers set to comply with ADA-specified opening forces may not provide
