Product Details
- Protects Door and Entryway
- Recommended for Moderate Traffic and Medium Weight Doors
- For Exterior or Interior Doors
- Concealed Slide Track in Top Door Rail Concealed and Surface Mounted
- Non-Handed
- ANSI 156.8 Grade 1
- Low Profile Concealed Channel Slide Track
- Designed for Installation in Aluminum Door Webbing and Door Rails
- Designed for Moderate Traffic, Medium Weight Doors
- Heavy Shock Absorbing Spring Provides 5º to 7º Compression Before Reaching a Dead-Stop
- Furnished with Fasteners for Both Wood or Metal Door and Frame
- Non-Metal Slide Block
- 110º Maximum Opening
- Non-Handed Stainless Steel Advisory: Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.

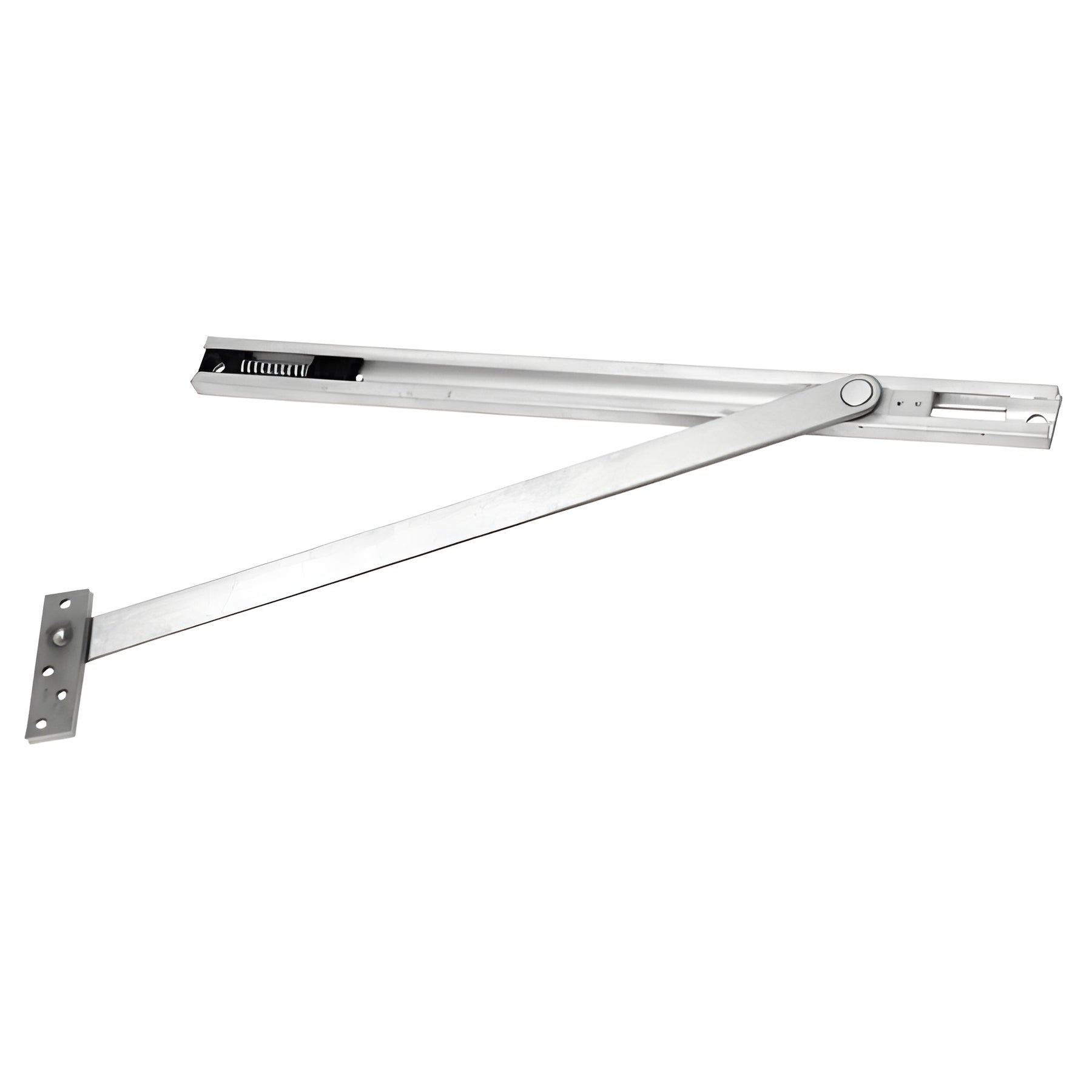

Rixson® Overhead Stops are used to protect both doors and entire entryways from damage caused by violent openings due to wind gusts, heavy traffic frequency, abuse, and vandalism. By limiting the door travel, they can prevent damage to the door frame, closer, hinges, and pivots. The heavy shock absorbing spring provides 5º to 7º compression before reaching a dead-stop. Maximum opening is 110º. Furnished with fasteners for both wood or metal door and frame.
FEATURES AND SPECIFICATIONS:
Door Type Offset Pivots/Hinges: 38-1/16" to 43" (967 to 1.09 m)
Door Type Center-Hung Pivots: 41-1/16" to 46" (1.04 to 1.17 m)
Low Profile Concealed Channel Slide TrackDesigned for Installation in Aluminum Door Webbing and Door RailsDesigned for Moderate Traffic, Medium Weight DoorsHeavy Shock Absorbing Spring Provides 5º to 7º Compression Before Reaching a Dead-StopFurnished with Fasteners for Both Wood or Metal Door and FrameNon-Metal Slide Block 110º Maximum OpeningNon-Handed
Stainless Steel Advisory:Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
