RL Mill 200 Series Top Cap 135º Corner

• U.S. Patent No. 8,167,274
• Welded and Finished
• Matches Shape of Top Rail
• Seven Standard Powder Coated Finishes, Plus Unfinished Chromate
• Includes Aluminum Connector Splice Plates
• 6005 Alloy Aluminum/T5 Temper
• Custom Angle Corners Also Available

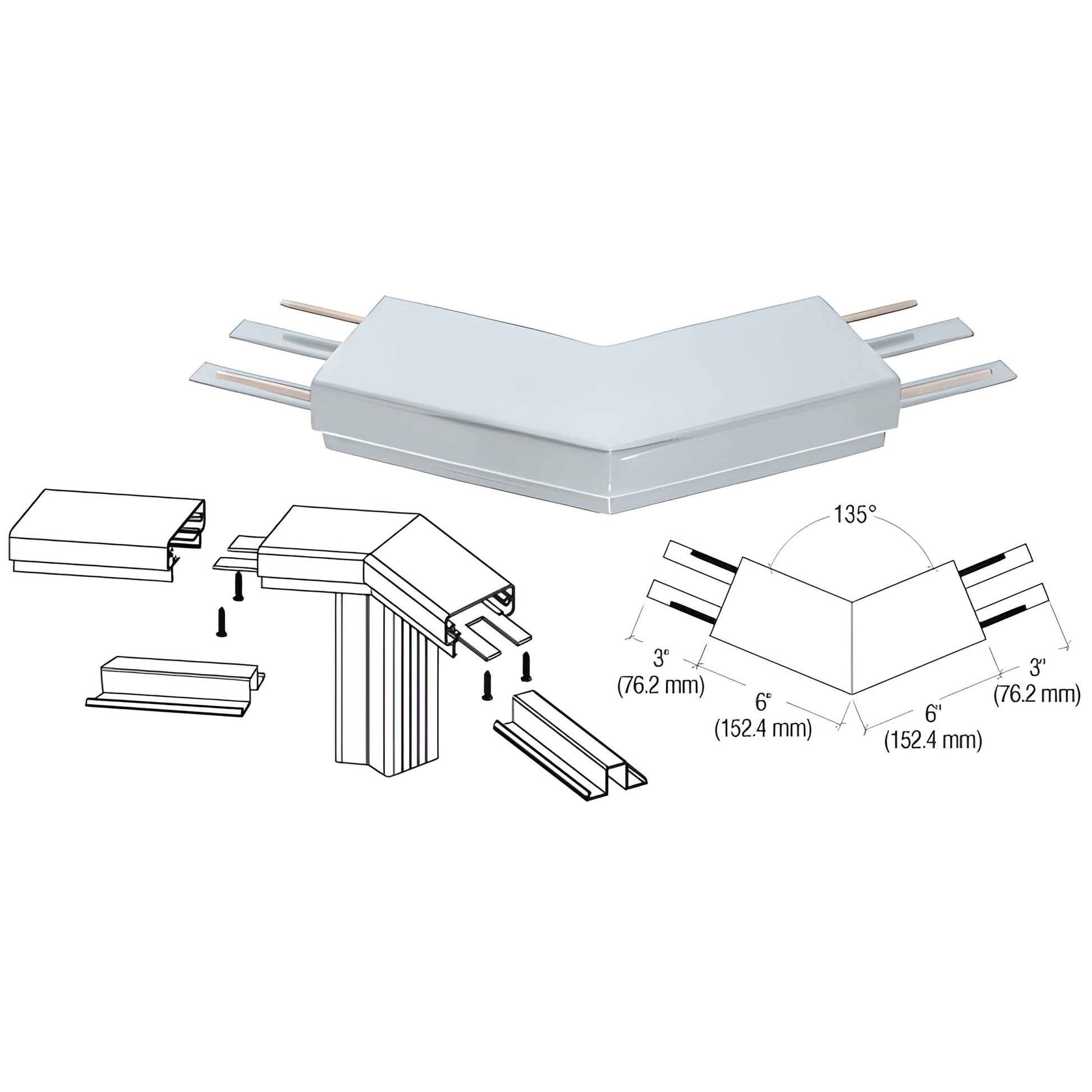

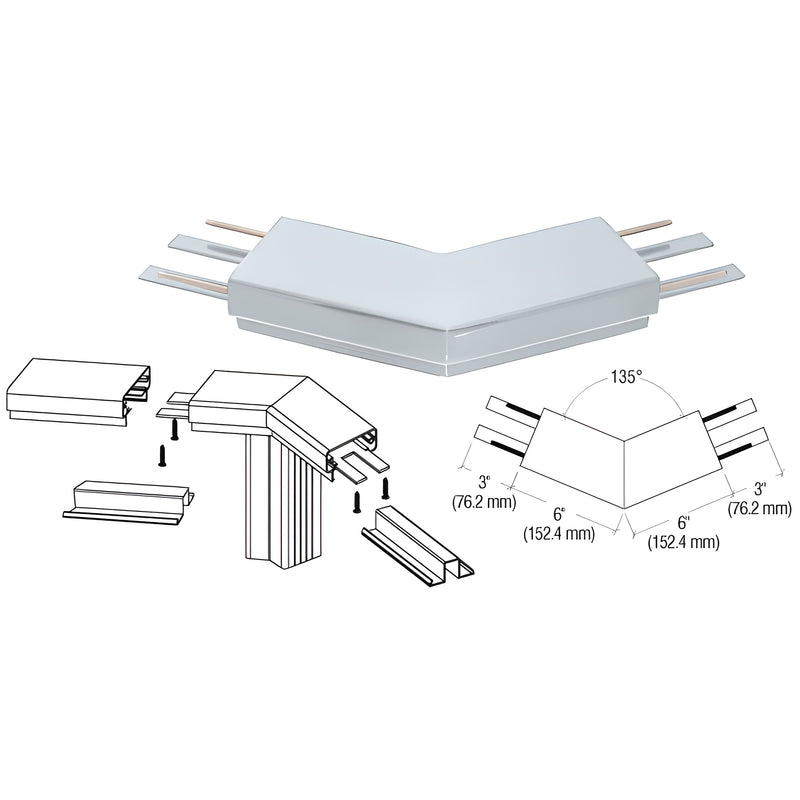

CRL 200 Series Horizontal Corners

are fabricated, finished, powder coated and individually packaged. This interior slip-fit corner is designed for 135º corner conditions that allow for a hairline joint in the straight sections of the railing without having to miter cut angles in the field. Attach the Corners using CRL Cat. No. TEK1 Tek Screws.

All ARS/AWS products are painted to order and are non-refundable or returnable.

Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
