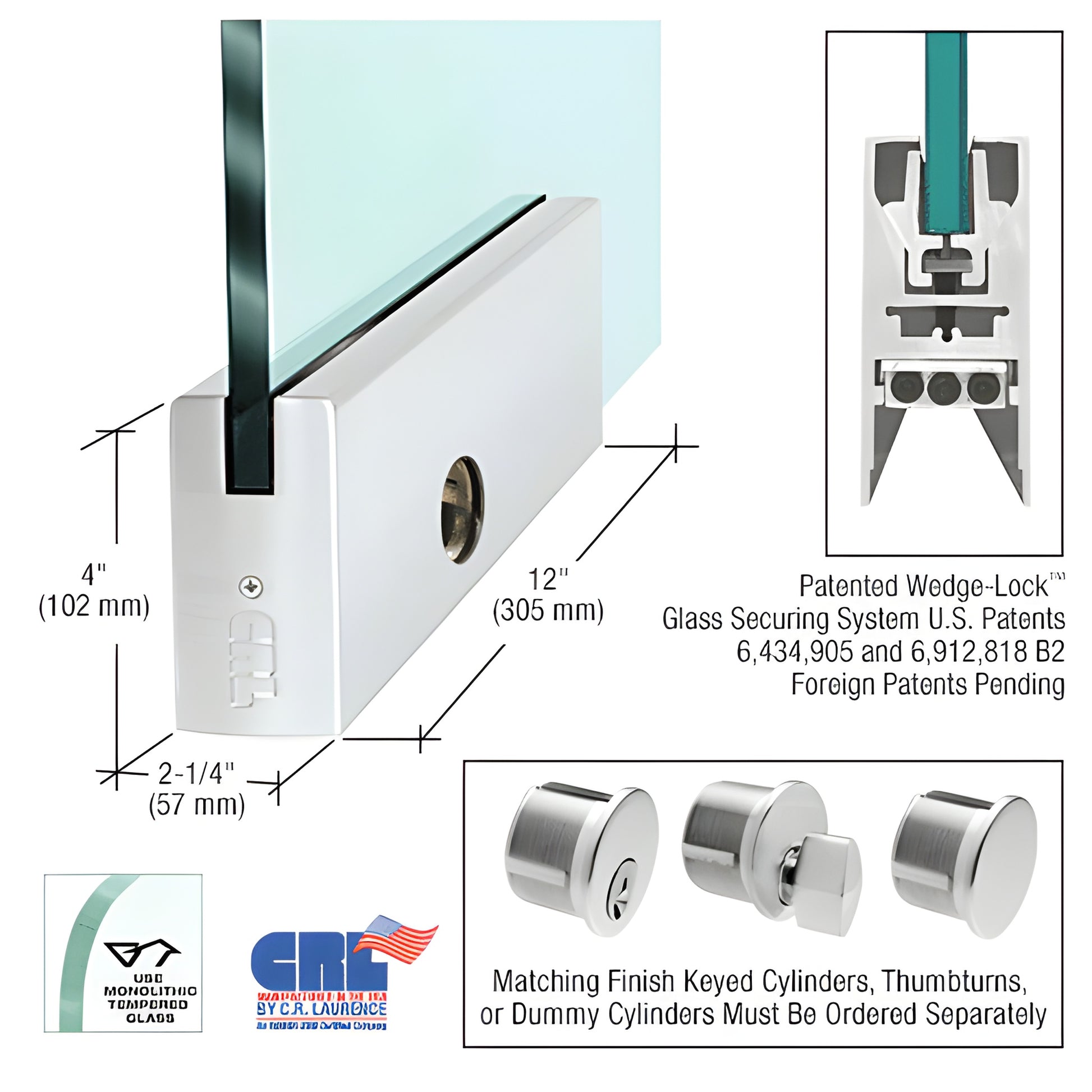

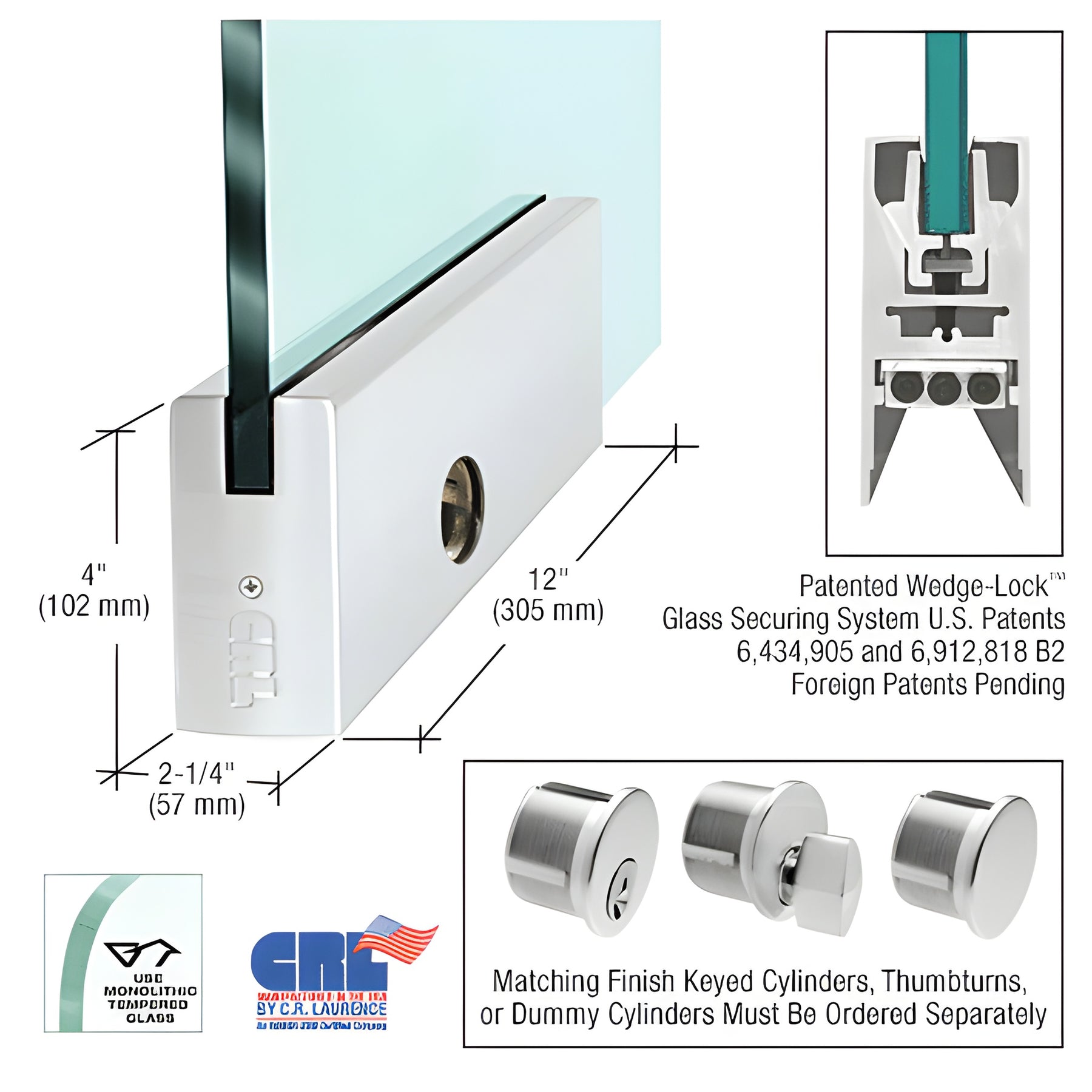

Satin Anodized 4in Square DRS Door Rail Lock for 3/4in Glass, 12in

• 12" (305 mm) length for 3/4" (19 mm) glass
• Use monolithic tempered glass
• Patented Wedge-Lock® glass securing system (U.S., Canadian & European patents)
• Models to fit 3/8" to 3/4" (10 to 19 mm) glass
• Available in several stock architectural finishes — custom finishes available
• Available with and without locks
• Matching sidelite rails available

Our innovative glass entrance product, the CRL Wedge-Lock® Door Rail System, is a patented door rail designed for tempered glass doors and frameless glass entrances. The exclusive CRL Wedge-Lock® Securing System (U.S. Patents 6,434,905 and 6,912,818 B2; Canadian Patent 2,419,706; European Patent EP 1 404 939 B1) secures the glass by applying downward pressure using two glass-retaining aluminum extrusions and a flat stainless steel pull bar. As the bar is tightened with socket head cap bolts the angled wedge in the rail pulls the extrusions together, producing exceptionally high glass retention force (more than 900 lbs. in our 9" / 228.6 mm corner rail) — delivering industry-leading strength for commercial glass doors.

NOTE: Actual product height: 4-1/16" (103 mm)

Key differentiators:

• Fastest installation time for a door rail system — experienced installers can prepare a door in under ten minutes
• Comes fully fabricated and ready-to-install with end caps installed
• Adjustable Door Alignment System (standard on top and bottom rails) allows +/-1/8" (3.2 mm) adjustment toward or away from the jamb without removing the door
• Rigid single-component housing resists shift and long-term misalignment (not made of two halves)
• Internal components remain in place during installation — no disassembly required
• Durable glass securing pads designed for longevity in extreme environments

Installation & adjustment overview:

• After rail installation, attach the door arm or pivot (not included) to the pre-assembled adjustable alignment slide
• To fine-adjust after hanging the door, remove the end cap to access three socket head cap bolts: center bolt secures the slide, outer bolts adjust the slide ±1/8" (3.2 mm)
• Low-profile slide allows pivot placement other than the American Standard setback (2-3/4" / 69.8 mm) and accommodates vertically out-of-square openings

Other features:
