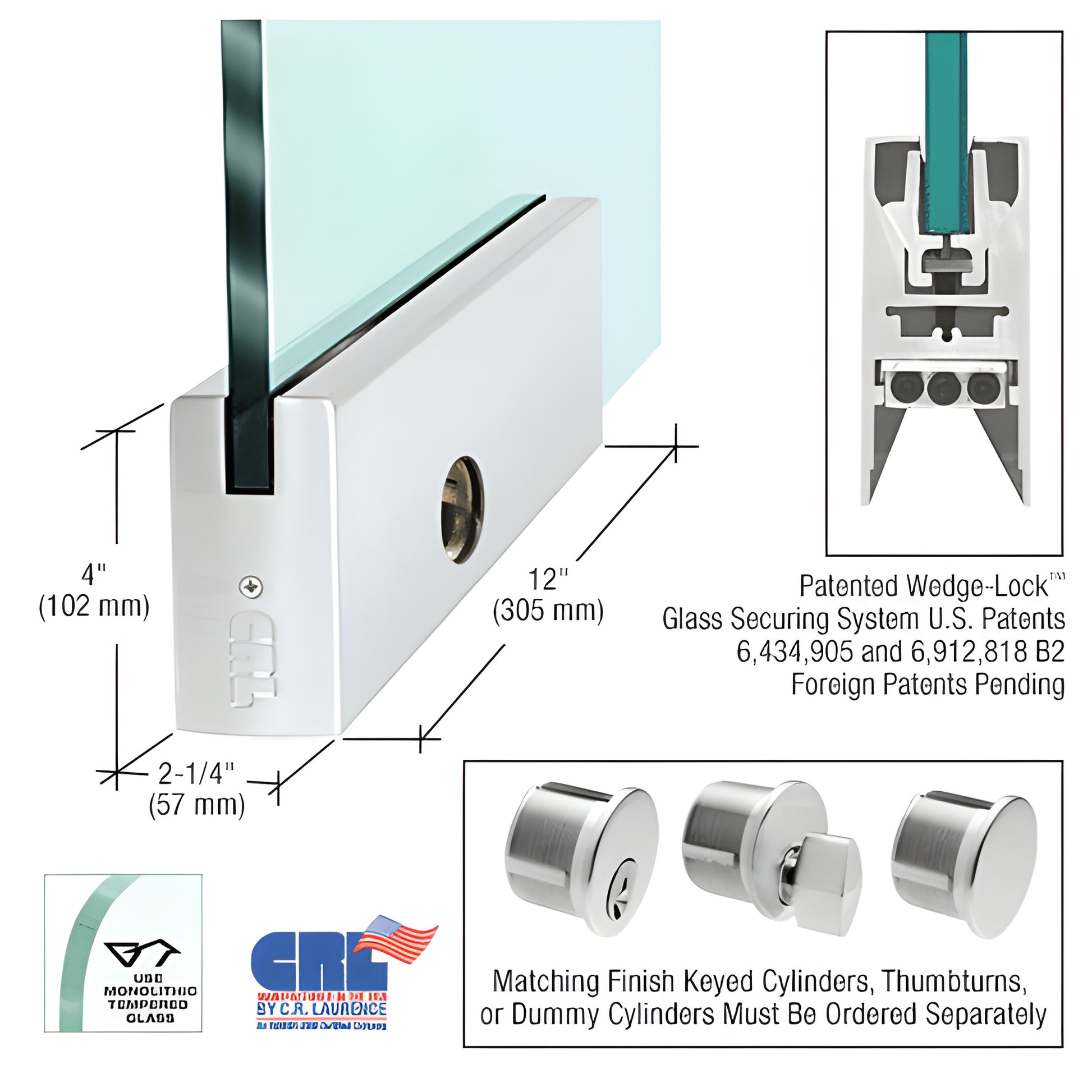

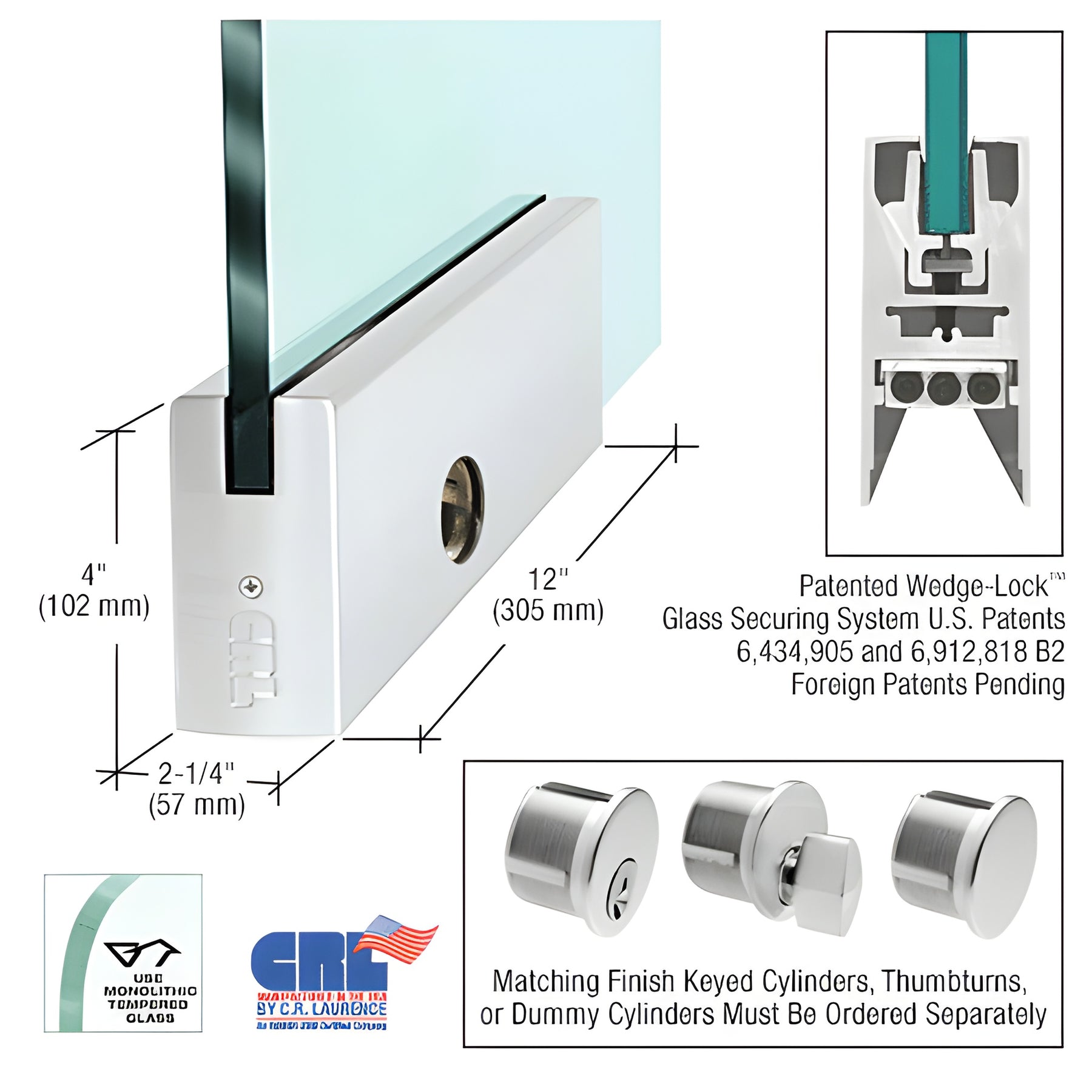

4 in Satin Anodized Square DRS Door Rail w/ Lock, 12 in, 5/8 in Glass

• 12" (305 mm) length for 5/8" (10 mm) glass
• Use monolithic tempered glass
• Patented Wedge-Lock® glass securing system (U.S., Canadian & European patents)
• Models to fit from 3/8" to 3/4" (10 to 19 mm) glass
• Available in several stock architectural finishes; custom finishes available
• Available with and without locks
• Matching sidelite rails available

Our innovative glass entrance solution, the CRL Wedge-Lock® Door Rail System, is engineered for frameless and storefront glass doors using tempered monolithic glass. The exclusive Wedge-Lock® Securing System secures the glass by applying downward pressure with two glass-retaining aluminum extrusions and a flat stainless steel bar. As the bar is tightened with socket head cap bolts, angled extrusions engage the door rail wedge to create high retention force—more than 900 lbs. in the 9" (228.6 mm) corner rail—delivering reliable long-term performance for commercial glass doors.

NOTE: Actual product height: 4-1/16" (103 mm).

Wedge-Lock® Door Rails are supplied completely fabricated and ready-to-install with end caps installed. After mounting the rail, attach the door arm or pivot (not included) to the adjustable door alignment slide already assembled in the rail. The standard Adjustable Door Alignment System (top and bottom rails) provides ±1/8" (3.2 mm) adjustment toward or away from the jamb without removing the door, enabling field alignment for out-of-square openings.

To fine-tune the door after installation, remove the end cap to access three socket head cap bolts: the center bolt locks the adjustable slide; the outer bolts adjust the slide 1/8" (3.2 mm) in or out. The low-profile slide and slotted pivot grooves allow non-standard setback positions and vertical out-of-square fabrication.

Why choose Wedge-Lock® Door Rails:

• Accepts 3/8" to 3/4" (10 to 19 mm) glass—suitable for many tempered glass door applications
• Rigid single-component housing that resists shifting and maintains adjustment over time
• Internal components remain installed during mounting for faster install times
• Durable glass-securing pads designed for longevity in extreme environments
• Built-in jamb alignment block standard (arms and pivots sold separately)

Finish and ordering notes: Rails come in several standard architectural finishes and can be quoted in custom finishes and widths. Rail specifications, templates and hardware packages are available from CRL Technical Sales via e-mail. Models with locks are supplied with the lock mechanism installed; keyed cylinders or thumbturns are ordered separately. End caps are included in stock lengths; specify total rail length (including end caps) for custom rails.

Ordering information:
