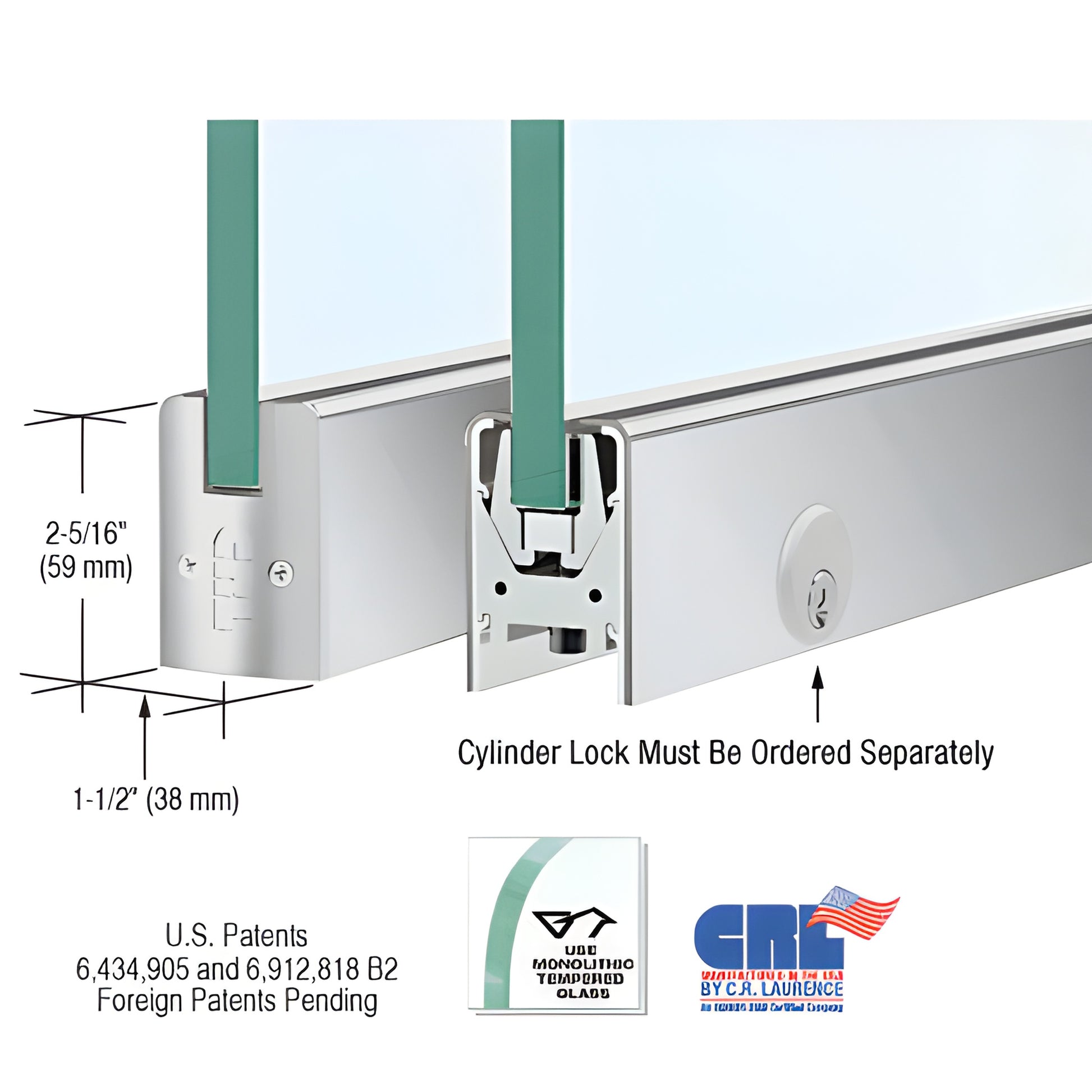

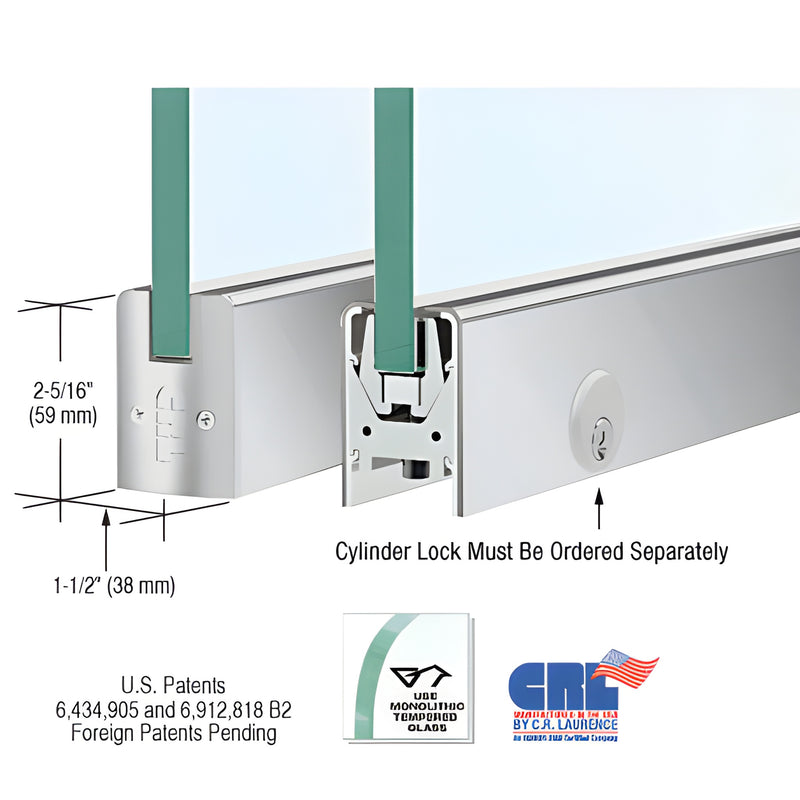

Satin Anodized Square Door Patch Rail with Lock for 3/8" Glass, 8in

• 8" (203 mm) Length for 3/8" (10 mm) Glass
• Use Monolithic Tempered Glass
• Patented Wedge-Lock® Glass Securing System (quick, secure installation)
• Low Profile Rails: 2-5/16" (59 mm) Tall x 1-1/2" (38 mm) Wide
• Available in several stock architectural finishes; custom finishes available
• Available without locks; matching sidelite rails available

SKU: DR2SSA38PL

CRL Low Profile Door Rail is a compact, ready-to-install door rail engineered for 3/8" (10 mm) monolithic tempered glass. Measuring only 2-5/16" (59 mm) high by 1-1/2" (38 mm) wide, the rail incorporates the patented Wedge-Lock® Glass Securing System (U.S. Patents 6,434,905 and 6,912,818 B2; Canadian Patent 2,419,706; European Patent EP 1 404 939 B1) for fast, secure attachment to glass. Rails ship complete with end caps, installation instructions and adjustment wrenches.

Key differentiators:

• Fastest installation time among door rail systems — experienced installers can prepare a door in under 10 minutes
• Rigid, single-component housing that resists shifting or loss of adjustment over time
• Internal components do not require removal before installation
• Durable glass-securing pads designed for longevity in extreme environments
• Adjustable Door Alignment System (standard top and bottom): ±1/8" (3 mm) without removing the door
• Low-profile adjustable slide allows non‑standard pivot setback and fabrication for out‑of‑square openings
• Models available to accept 3/8" to 3/4" (10 to 19 mm) glass

Operation & maintenance

After installation, remove the end cap to access three socket head cap bolts: the center bolt locks the adjustable slide, and the two outer bolts provide ±1/8" (3 mm) fine adjustment. Arms and pivots are sold separately to meet specific job requirements; pivot inserts 1NT701, 1NT703 and 1NT704 are available for overhead or floor closers.

Finishes & ordering

Available in standard architectural finishes and can be quoted in custom finishes and widths. Models with locks ship with the latch mechanism installed; matching keyed cylinders or thumbturns must be ordered separately. End caps included in stock lengths; specify total rail length (including end caps) for custom lengths.

Included: End caps, installation instructions and adjustment wrenches. Prepped to receive Low Profile Door Rail pivot inserts (
