Satin Anodized Low-Profile DRS Patch Rail 8 in (No Lock) 3/8 in Glass

• 8" (203 mm) Length for 3/8" (10 mm) Glass
• Use Monolithic Tempered Glass
• Patented Wedge-Lock® Glass Securing System
• Low Profile Rails: 2-5/16" (59 mm) Tall
• Available in Several Stock Architectural Finishes — Custom Finishes Available
• Available Without Locks
• Matching Sidelite Rails Available

SKU: DR2TSA38P

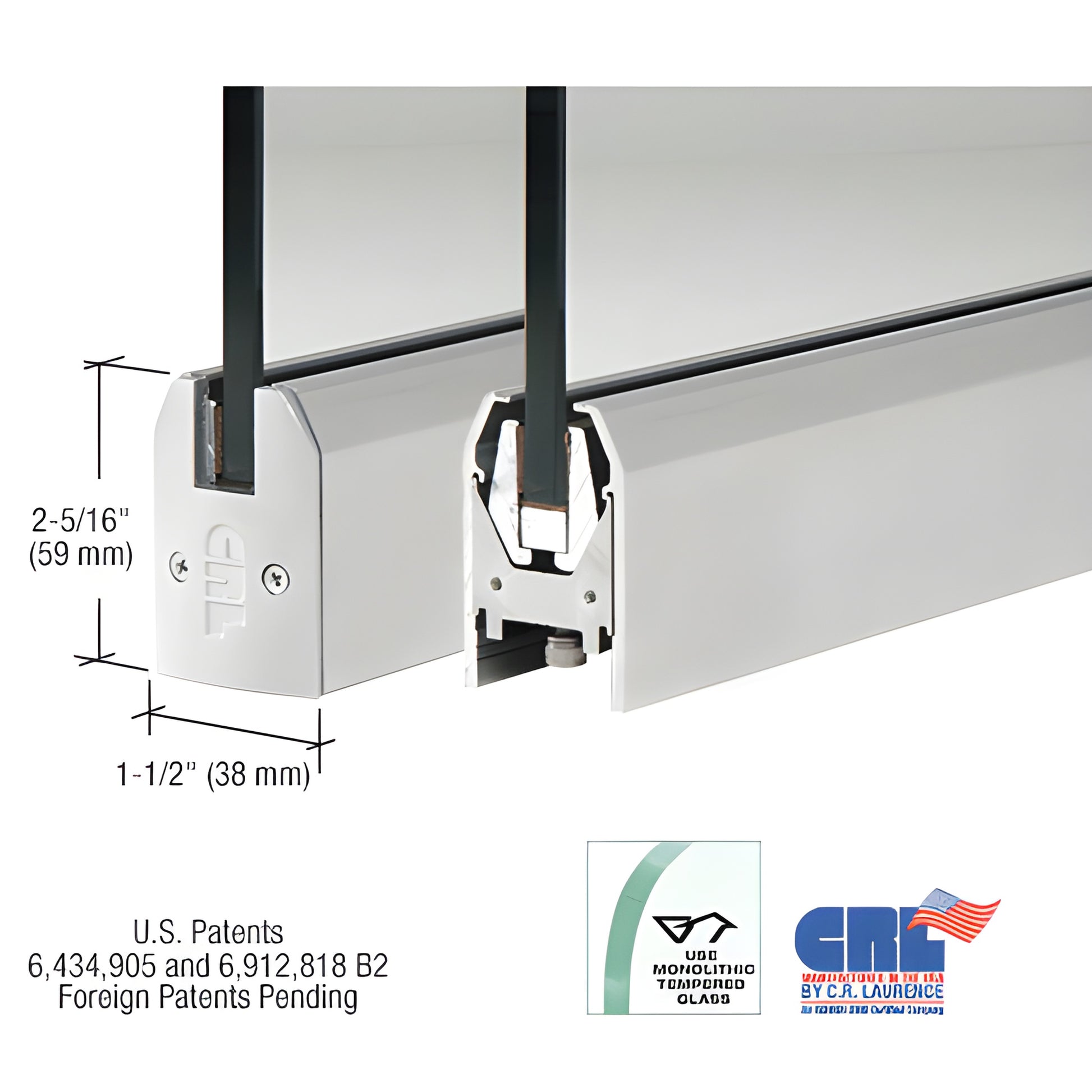

CRL Low Profile Door Rail measures 2-5/16" (59 mm) tall by 1-1/2" (38 mm) wide and features the patented Wedge-Lock® Glass Securing System (U.S. Patents 6,434,905 and 6,912,818 B2; Canadian Patent 2,419,706; European Patent EP 1 404 939 B1). These low profile door rails are ready-to-install with End Caps, installation instructions, and adjustment wrenches included.

NOTE: Actual Product Height: 2-5/16" (59 mm)

The Wedge-Lock® system provides a secure attachment to monolithic tempered glass and enables the fastest installation time of any door rail system in the industry—experienced installers can prepare a door in under ten minutes. Rails are supplied completely fabricated; after installation attach the door arm or pivot (not included) to the adjustable door alignment slide already assembled in the rail.

The built-in Adjustable Door Alignment System lets you shift the door 1/8" (3 mm) toward or away from the jamb without removing the door. This adjustment is standard on both top and bottom rails. Remove the End Cap to access three socket head cap bolts: the center bolt locks the slide; the two outer bolts adjust ±1/8" (3 mm). The low-profile slide accommodates pivots with slotted grooves and can be fabricated for vertically out-of-square openings.

Other benefits of Wedge-Lock® Door Rails:

• Accepts 3/8" to 3/4" (10 to 19 mm) glass (models vary)
• Rigid single-component housing that resists shifting and long-term adjustment loss
• Internal components remain installed during handling—no removal required before installation
• Glass securing pads designed for longevity in extreme environments

NOTE: All Wedge-Lock® Door Rails include the built-in Jamb Alignment Block. Closer arms, floor or overhead pivots, and arms/pivots must be ordered separately to meet job requirements.

Available in several standard finishes; custom finishes and widths quoted on request. Rail specifications, templates, and hardware packages are available from CRL Technical Sales via
