Product Details
- High Security 1500 Lbs. Direct Holding Force
- Fully Automatic 12/24V DC Selection
- Models for Single and Double Doors
- Limited Lifetime Warranty
- UL Listed

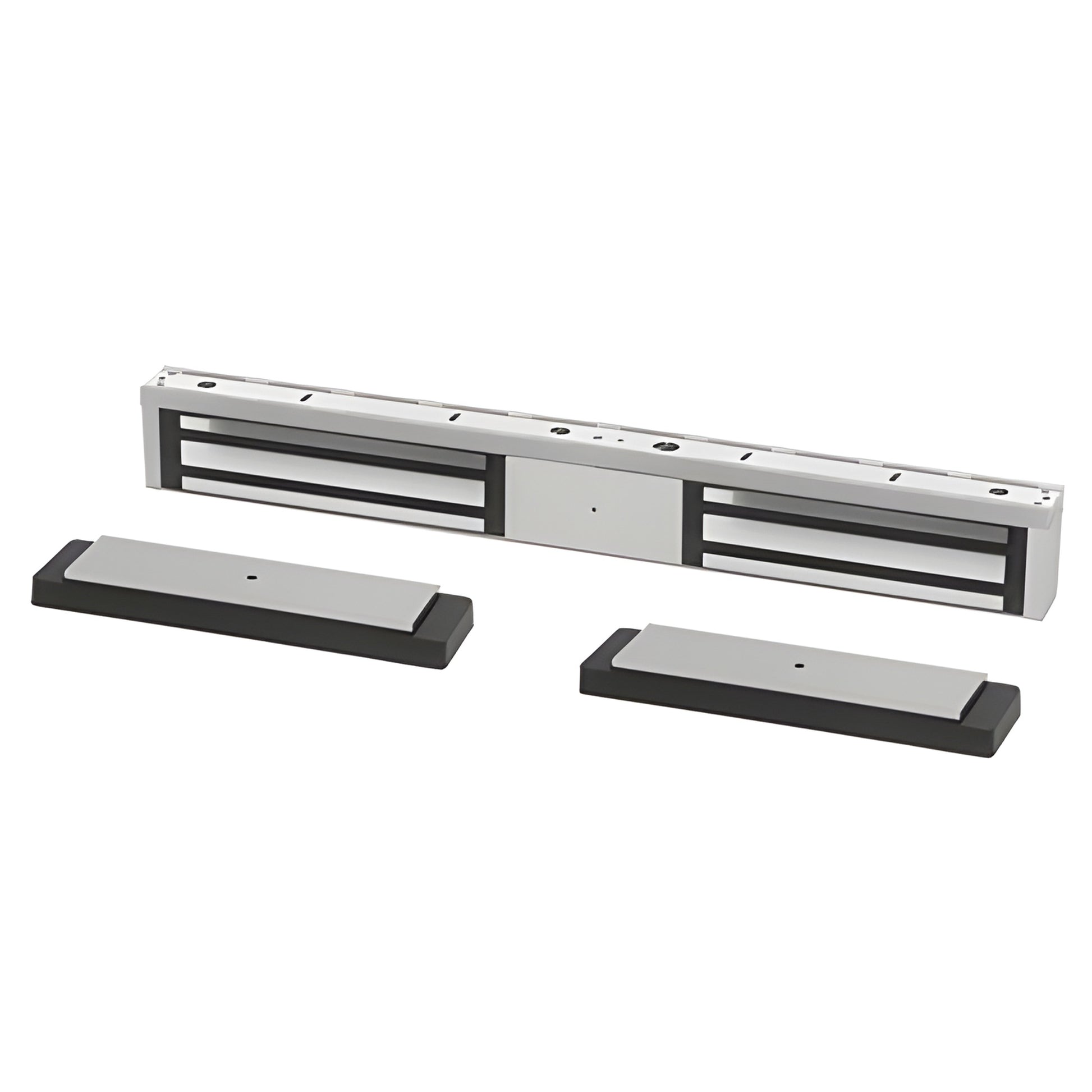

The Schlage® M490 Series surface mounted Electromagnetic Lock is ideal for high security applications. This Lock exceeds UL1034 and ANSI/BHMA A156.23 Grade 1 standards. It
provides 1500 pounds direct holding force, and is UL Listed as an Auxiliary Lock for 3-hour fire rated openings and for burglary resistance. This Lock easily interfaces with electronic access control systems, automatic door operators, and fire or other hazard sensing systems for emergency egress.
For additional information, contact Technical Sales Department.SPECIFICATIONS:
Holding Force: 1500 lbs. (680 kg)
Input Voltage: 12/24 Volts DC - Automatic Selection
Current Draw:
1300mA @ 12V DC/700mA @ 24V DC
Dimensions:
L = 25-1/16" (637 mm) x H = 3" (76 mm) x W = 1-3/4" (44 mm)
Weight: 28 lbs. (12.7 kg)NOTE: Accessories such as Mounting Brackets, Power
Supplies, Transformers, and Keypads, are available.
