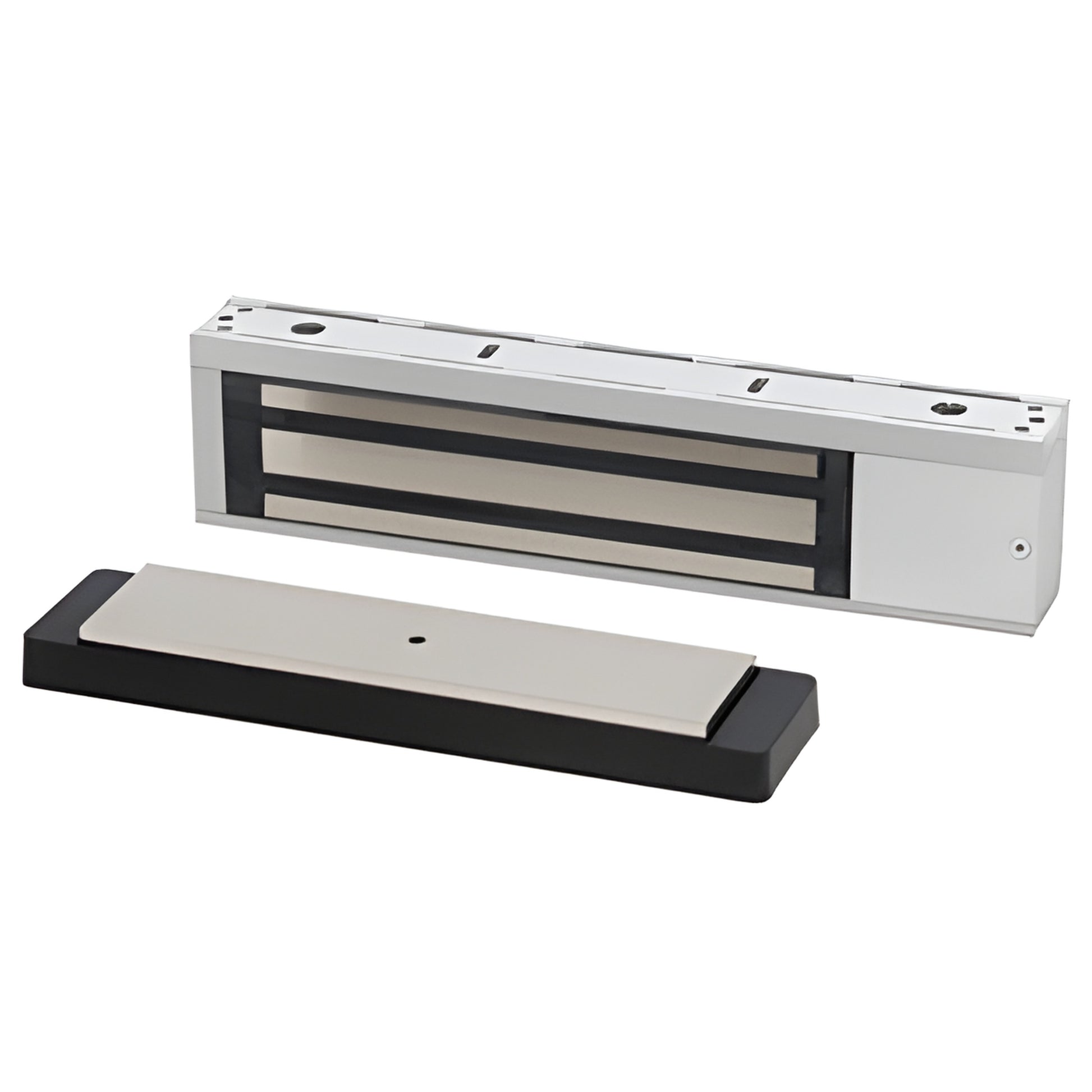

Schlage® M490 Electromagnetic Mag Lock 1500 lb
Schlage® M490 Electromagnetic Mag Lock 1500 lb
Regular price
$1,918.92 CAD
Regular price
Sale price
$1,918.92 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# SCHM490
Shipping Weight: 14.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 14.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Body Height
3
Body Length
12 1/2
Body Width
1 3/4
Current Draw
.65A @ 12V DC/.35A @ 24V DC
Holding Force
1500
Input
12/24 Volts DC - Automatic Selection
Model
Single Electromagnetic Lock
UL Listed
Yes
Overview
- High-security surface mounted electromagnetic lock — 1500 lbs. direct holding force
- Fully automatic 12/24V DC selection
- Available models for single and double doors
- Limited lifetime warranty
- UL Listed (Auxiliary Lock for 3-hour fire rated openings)
The Schlage® M490 Series surface-mounted electromagnetic lock is engineered for high-security access control applications. Meeting UL1034 and ANSI/BHMA A156.23 Grade 1 standards, the M490 delivers a reliable 1500 lb direct holding force and is UL Listed for burglary resistance and as an auxiliary lock for 3-hour fire rated openings. It integrates easily with electronic access control systems, automatic door operators, and fire or hazard sensing systems to support emergency egress.
SPECIFICATIONS:
Holding Force: 1500 lbs. (680 kg)
Input Voltage: 12/24 Volts DC — Automatic selection
Current Draw: 0.65A @ 12V DC / 0.35A @ 24V DC
Dimensions: L = 12-1/2" (318 mm) x H = 3" (76 mm) x W = 1-3/4" (44 mm)
Weight: 14 lbs. (6.4 kg)
NOTE: Accessories such as mounting brackets, power supplies, transformers, and keypads are available.
For additional information or technical support, contact Technical Sales Department.
Shop the Schlage M490 Series electromagnetic lock now.
