Product Details
- Ten, 24 Gauge Wires
- UL Listed

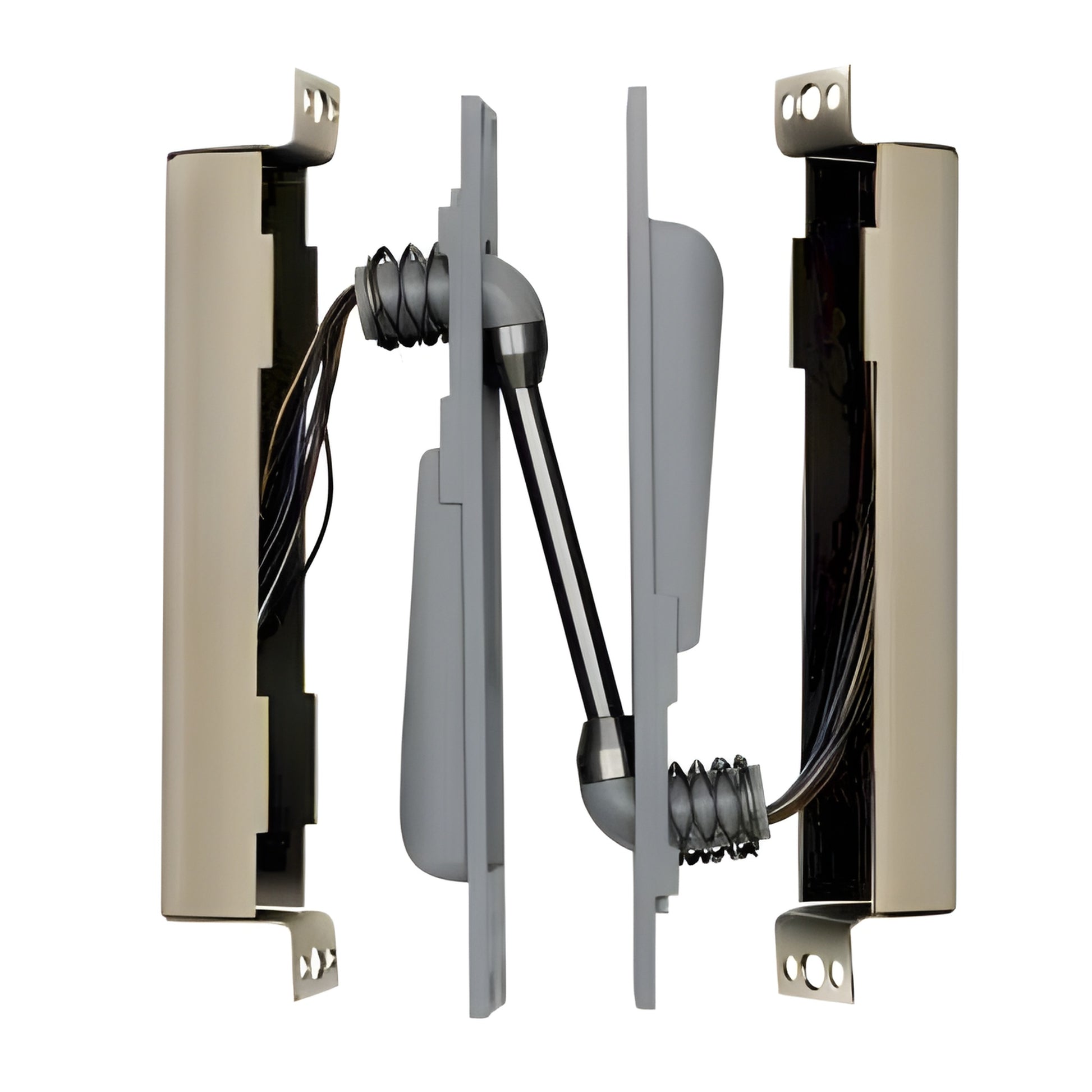

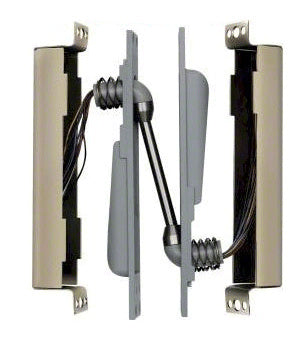

This Von Duprin® 10 Wire Electric Power Transfer provides a means of transferring electrical power from a door frame to the edge of a swinging door. The unit is completely concealed when the door is in the closed position, and ideally suited for installations involving moderate or heavy traffic.
DOOR APPLICATIONS: 3/4" Offset Pivots = 180 Degree Swing
Up to 5" (127 mm) Butt Hinge = 180 Degree Swing
5-1/2" (140 mm) Butt Hinge = 130 Degree Swing
6" (152 mm) Butt Hinge = 110 Degree Swing
SPECIFICATIONS
9" x 1-1/4" x 1-5/8" (229mm x 32mm x 38mm)
Painted Finish
Ten - 24 ga. Wire
Up to 1 AMP @ 24VDC
16 AMP Maximum Surge
Product Warning:
Not for use with swing clear hinges or center-hung pivots.
