CRL

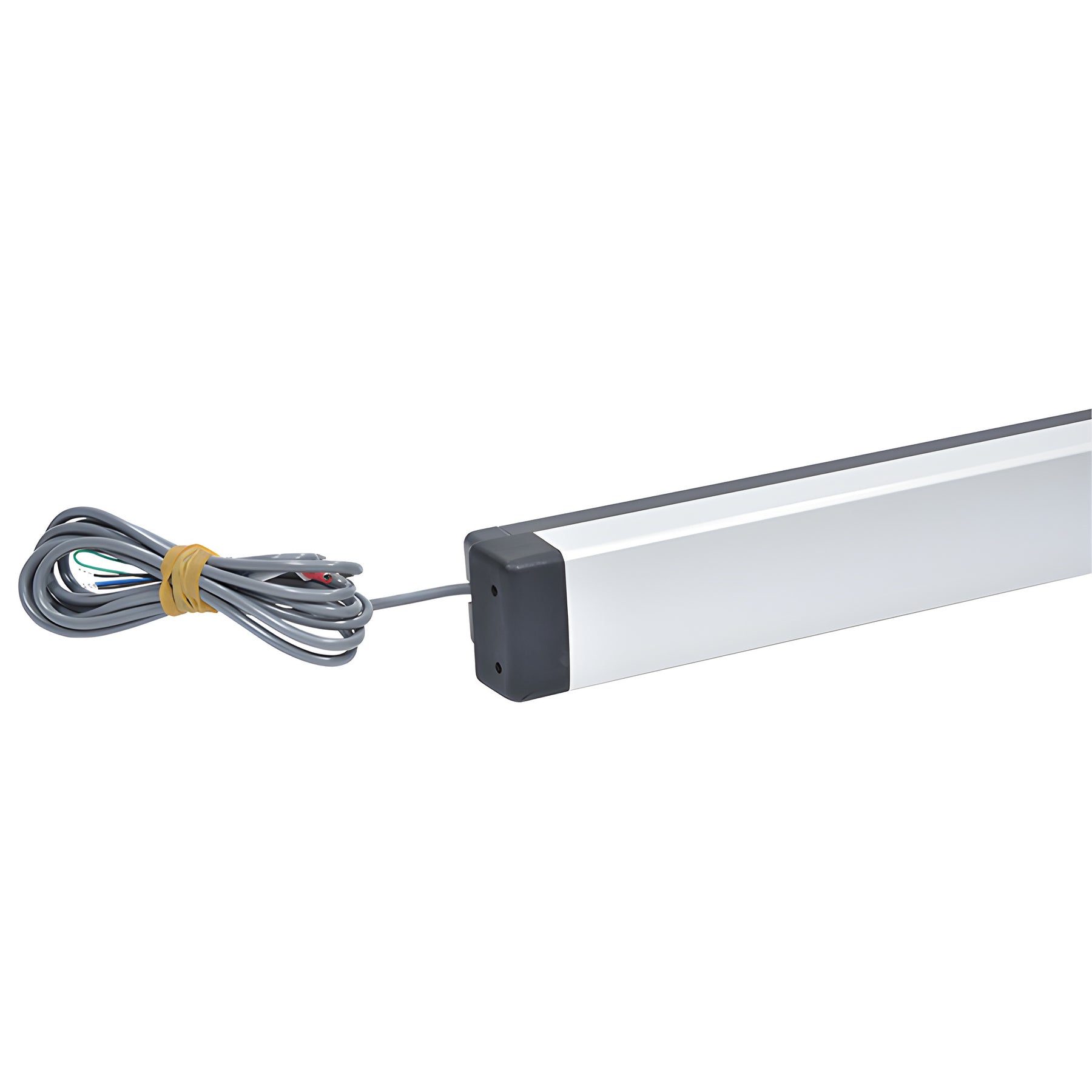

Adams Rite 8600 36-inch Motorized Concealed Vertical Rod Exit Device
Item# DH860MLR1136
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Buy More, Save More!
| Product QTY | Discount |
|---|---|
| Buy 3 | 3% Off |
| Buy 5 | 6% Off |
| Buy 8 | 9% Off |
| Buy 11 | 12% Off |
| Buy 16 | 16% Off |
Brand
Adams Rite
Certification
ANSI/BHMA A156.3, Grade 1
Door Thickness
Suits 1-3/4" Standard, up to 2-1/4"
Door Type
Narrow, Medium, Wide Stile Aluminum
Finish/Color
Clear Anodized
Handing
Non Handed
Length
36
Series
8600
UL Listed
Yes
- Standard width bars can be field cut to the next smallest opening width.
- Door Thickness: suits 1-3/4" (44.5 mm) standard, up to 2-1/4" (57.2 mm). Device requires modification when used with a cylinder in doors over 1-3/4" (44.5 mm).
- Handing: non-handed for easy installation on narrow stile doors.
- UL 305 panic hardware — life-safety rated concealed vertical rod exit device.
- Certified to ANSI/BHMA A156.3, Grade 1 for high-performance exit hardware.
The 8600 Series Narrow Stile Concealed Vertical Rod Exit Device is engineered for narrow stile aluminum doors and pairs that require a life-safety, two-point locking solution. This concealed vertical rod exit device provides secure top-and-bottom latching while preserving narrow stile aesthetics — ideal for commercial storefronts, curtain wall doors, and aluminum entrance systems.
SKU: DH860MLR1136
Most shipping weights are approximate. If you need exact weight or shipping costs to complete your order, contact CRL Customer Service before submitting your order. Product images are actual product or close representations; colors may vary by monitor settings.
For pricing, availability, or technical questions about this narrow stile concealed vertical rod exit device, contact CRL Customer Service to order today.
