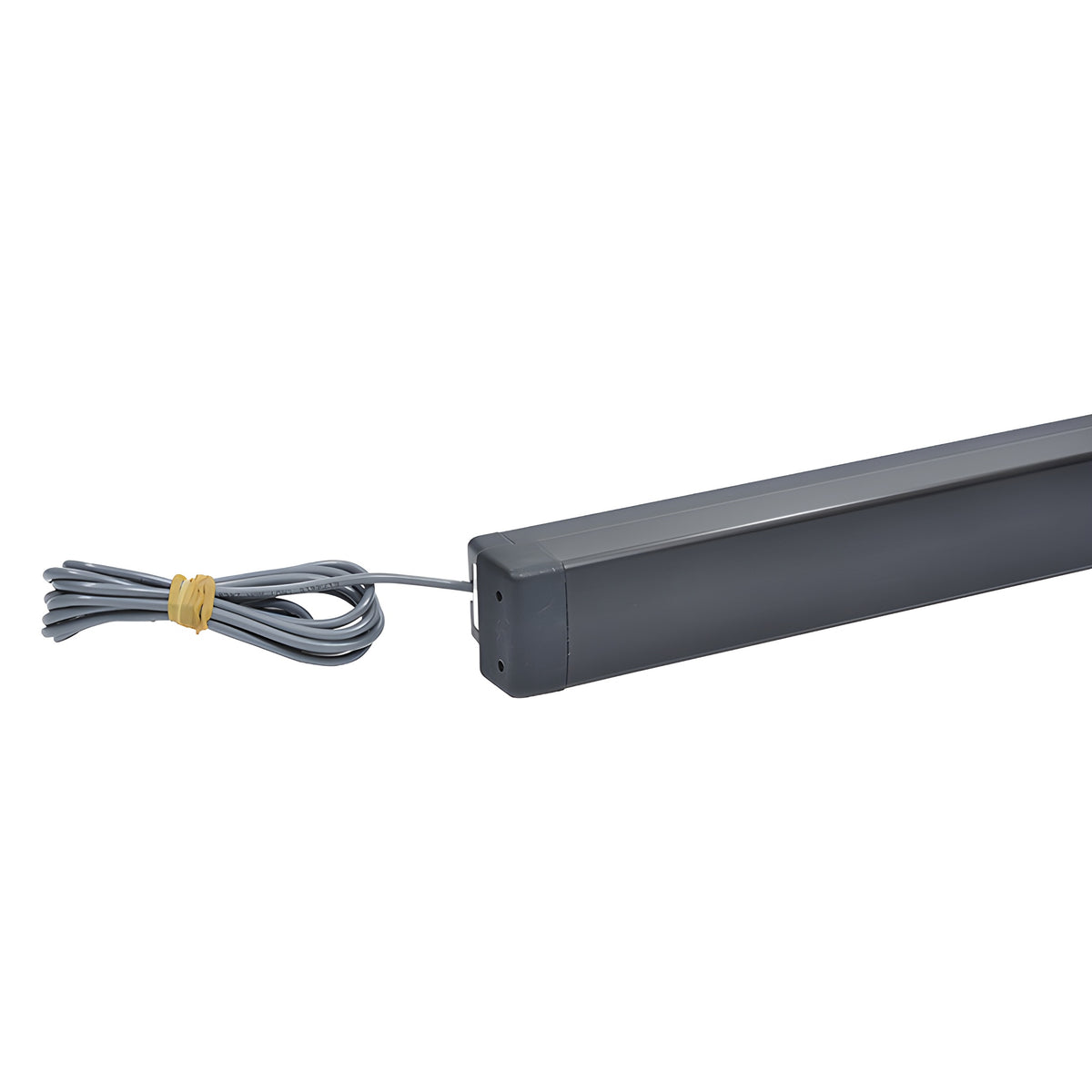

Adams Rite 8600 36" Motorized Concealed Vertical Rod Exit Device
Item# DH860MLR2236
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Buy More, Save More!
| Product QTY | Discount |
|---|---|
| Buy 3 | 3% Off |
| Buy 5 | 6% Off |
| Buy 8 | 9% Off |
| Buy 11 | 12% Off |
| Buy 16 | 16% Off |
Brand
Adams Rite
Certification
ANSI/BHMA A156.3, Grade 1
Door Thickness
Suits 1-3/4" Standard, up to 2-1/4"
Door Type
Narrow, Medium, Wide Stile Aluminum
Finish/Color
Dark Bronze
Handing
Non Handed
Length
36
Series
8600
UL Listed
Yes
- Standard width bars can be field-cut to the next smallest opening width.
- Door Thickness: Suits 1-3/4" [44.5 mm] standard, up to 2-1/4" [57.2 mm]. Device requires modification when used with cylinder in doors over 1-3/4" [44.5 mm].
- Handing: non-handed for easy installation on right- or left-hand doors.
- UL 305 panic hardware for life-safety compliance.
- Meets ANSI/BHMA A156.3, Grade 1 for commercial durability and performance.
The 8600 Series Narrow Stile Concealed Vertical Rod Exit Device (SKU: DH860MLR2236) is a concealed vertical-rod exit device engineered for narrow stile aluminum storefronts and doors that require two-point locking. Ideal for single doors or door pairs, this narrow-stile panic device provides a clean, low-profile exterior while delivering Grade 1 security and UL 305 life-safety performance.
Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation; colors can vary depending on your monitor settings.
Need this narrow-stile concealed vertical rod exit device for a specific opening or project? Contact CRL Customer Service to confirm fit, modifications, or to place an order.
